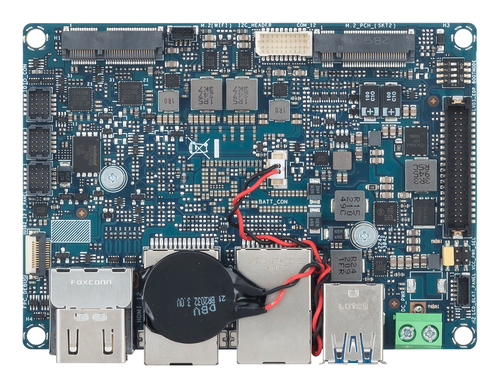

X621EP-IM-AA development board 1300 MHz
Model X621EP-IM-AAPart no. 90ME06R2-M0UCY0EAN 4711387491218
25 specifications
- Memory8192 MB
- Processor manufacturerIntel
- Maximum internal memory8 GB
- Ethernet LANYes
- DC input voltage12 - 24 V
- Depth72 mm
Overview
- Memory
- 8192 MB
- Processor manufacturer
- Intel
- Maximum internal memory
- 8 GB
- Ethernet LAN
- Yes
- DC input voltage
- 12 - 24 V
- Depth
- 72 mm
- Brand
- ASUS
- Category
- Development Board
- Model
- X621EP-IM-AA
- Part number
- 90ME06R2-M0UCY0
- EAN / UPC
- 4711387491218
- Also known as
- ASUS X621EP-IM-AA development board 1300 MHz
Specifications
25 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor frequency | 1300 MHz |
| Processor cache | 1512 KB |
| Processor cores | 2 |
| Processor threads | 2 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 8 GB |
| Internal memory type | LPDDR4x-SDRAM |
| RAM capacity | 8192 MB |
| RAM type | LPDDR4x |
| eMMC capacity | 64 GB |

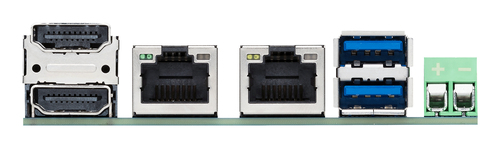

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 2 |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| GPIO interface | Yes |
| HDMI ports quantity | 2 |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 IoT Enterprise, Windows 10 x64 |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 - 24 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 72 mm |
| Width | 100 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 95% |
