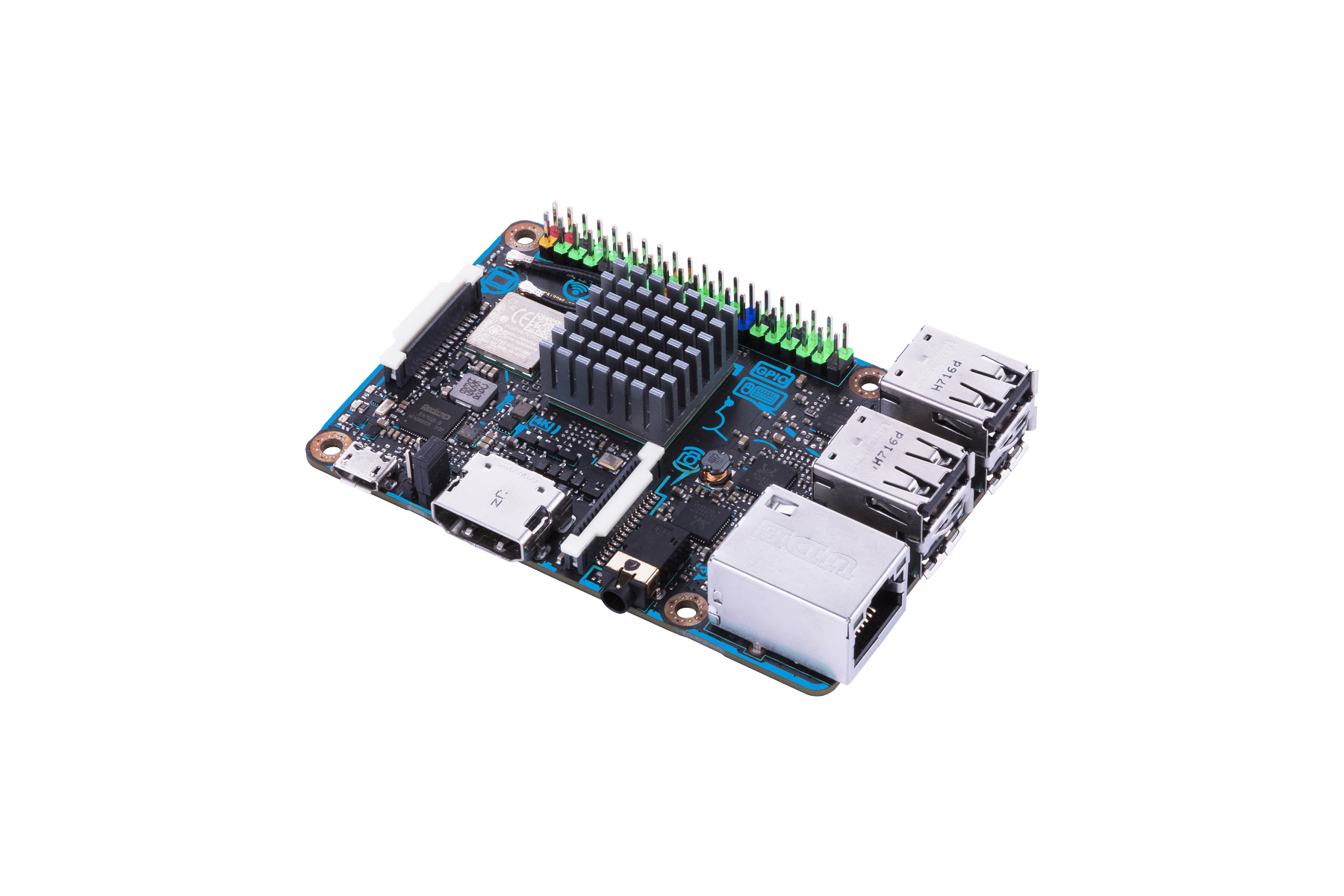

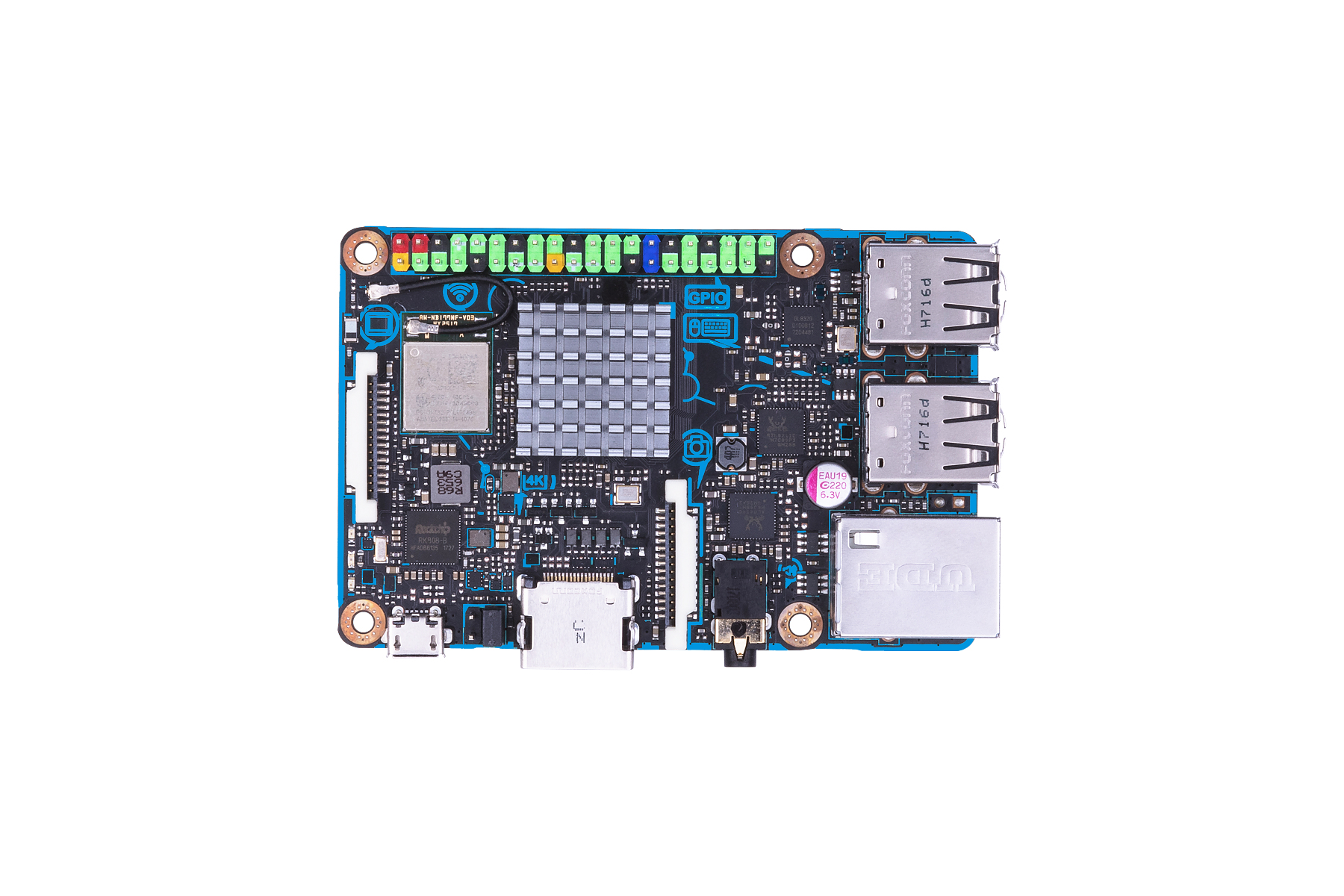

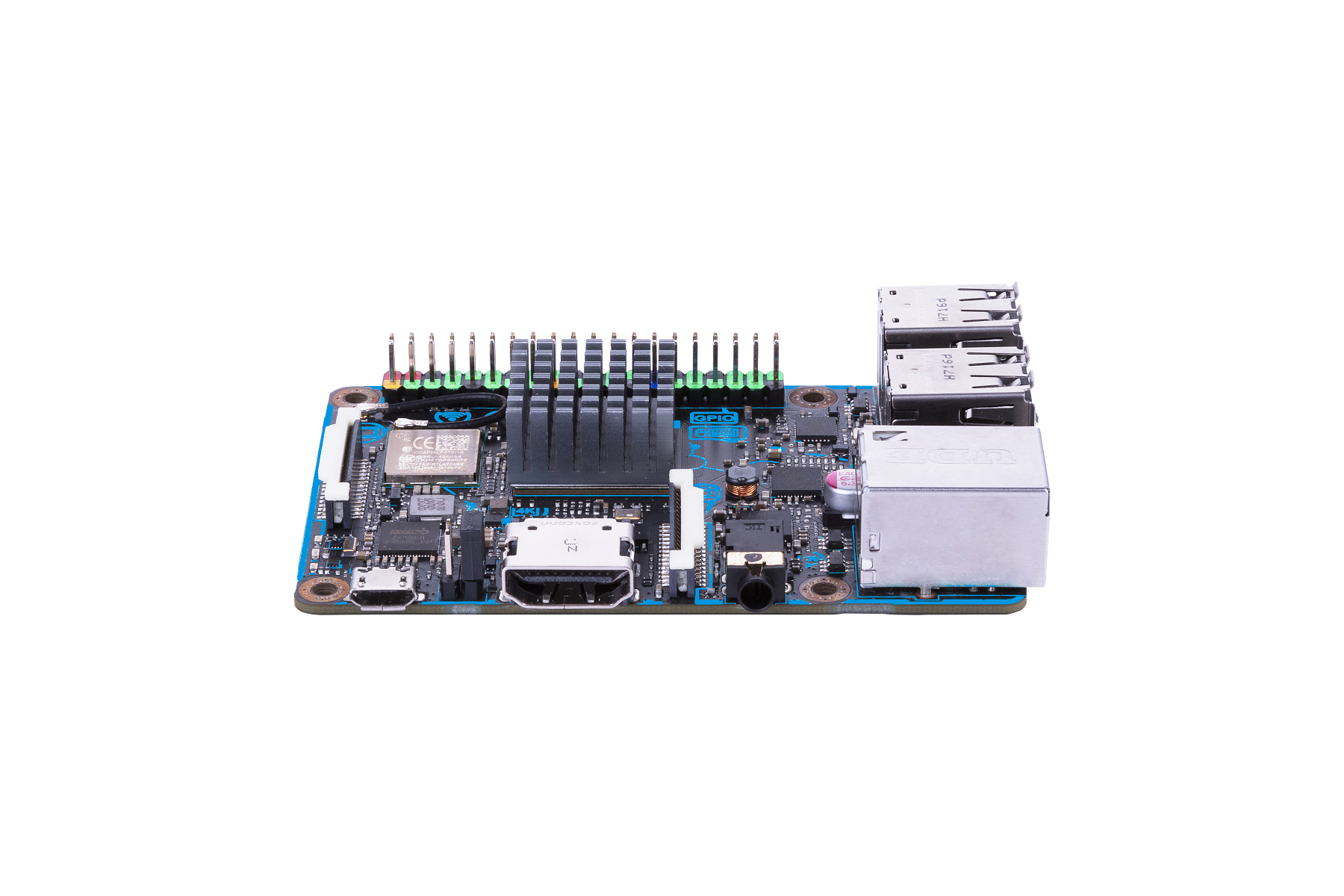

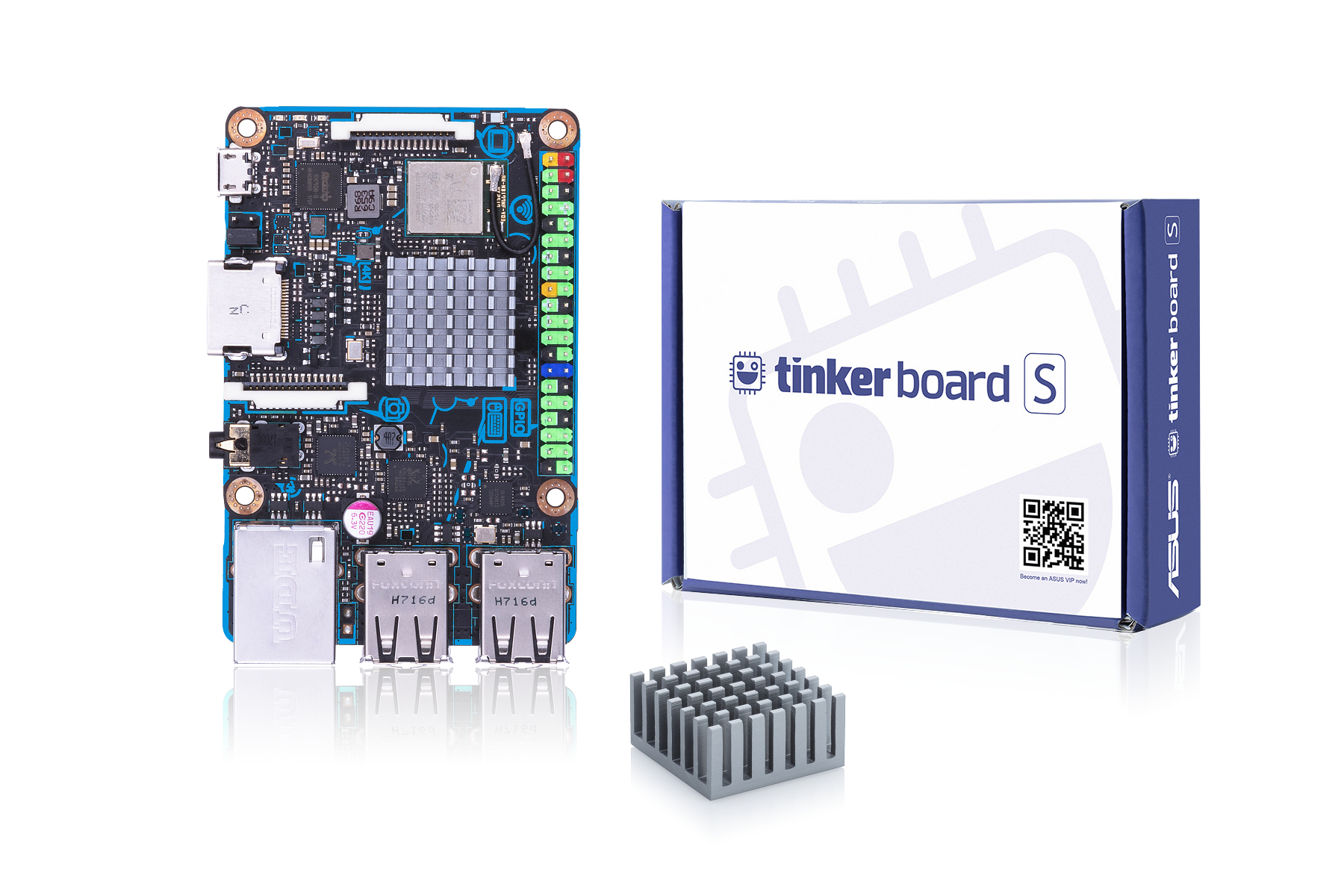

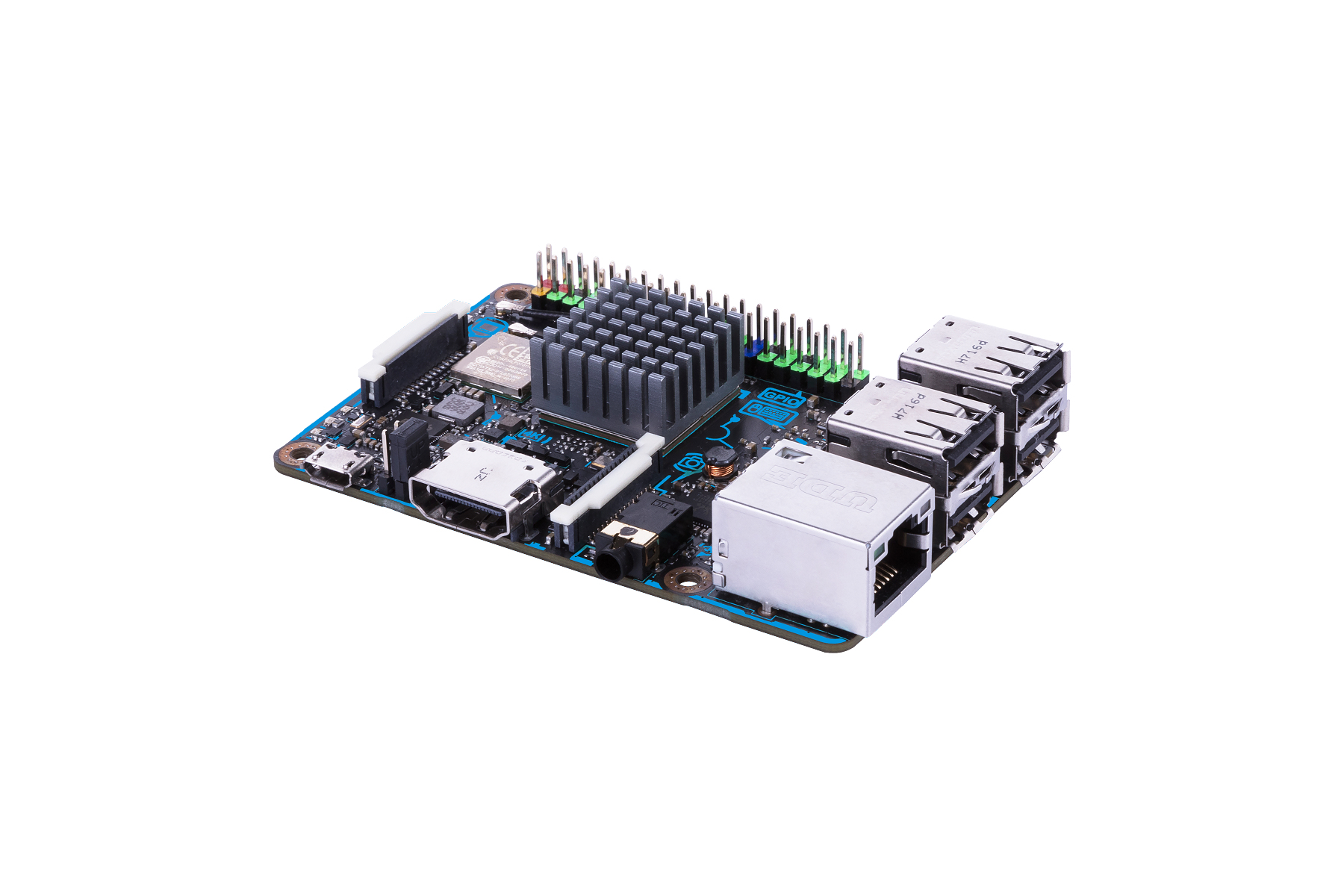

Tinker Board S
Model Tinker Board SPart no. 90ME0031-M0EAY0EAN 4712900946970
27 specifications
- ProcessorRockchip RK3288
- Weight55 g
- Processor manufacturerRockchip
- Maximum internal memory2 GB
- Wi-FiYes
- Height85.5 mm
Overview
- Processor
- Rockchip RK3288
- Weight
- 55 g
- Processor manufacturer
- Rockchip
- Maximum internal memory
- 2 GB
- Wi-Fi
- Yes
- Height
- 85.5 mm
- Brand
- ASUS
- Category
- Development Board
- Model
- Tinker Board S
- Part number
- 90ME0031-M0EAY0
- EAN / UPC
- 4712900946970
- Also known as
- ASUS Tinker Board S development board Rockchip RK3288
Specifications
27 specifications in 5 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Rockchip |
| Processor model | Rockchip RK3288 |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
| Internal memory type | DDR3 |
| Memory channels | Dual-channel |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB version | 2.0 |
| USB ports quantity | 4 |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| GPIO interface | Yes |
| HDMI ports quantity | 1 |
| I2C interface | Yes |
| I2S interface | Yes |
| PCM interface | Yes |
| SPI interface | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | ARM Mali-T764 |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 85.5 mm |
| Weight | 55 g |
| Package type | Box |
| Width | 54 mm |
