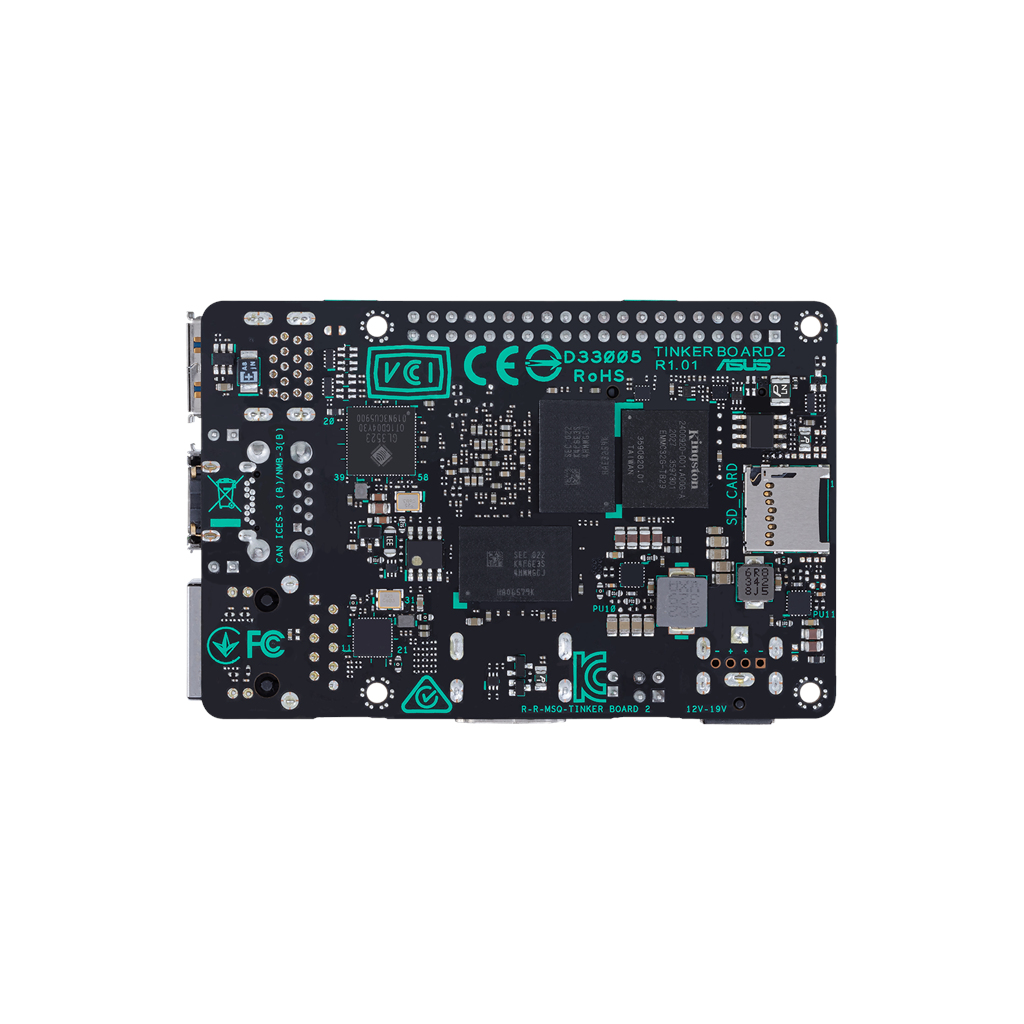

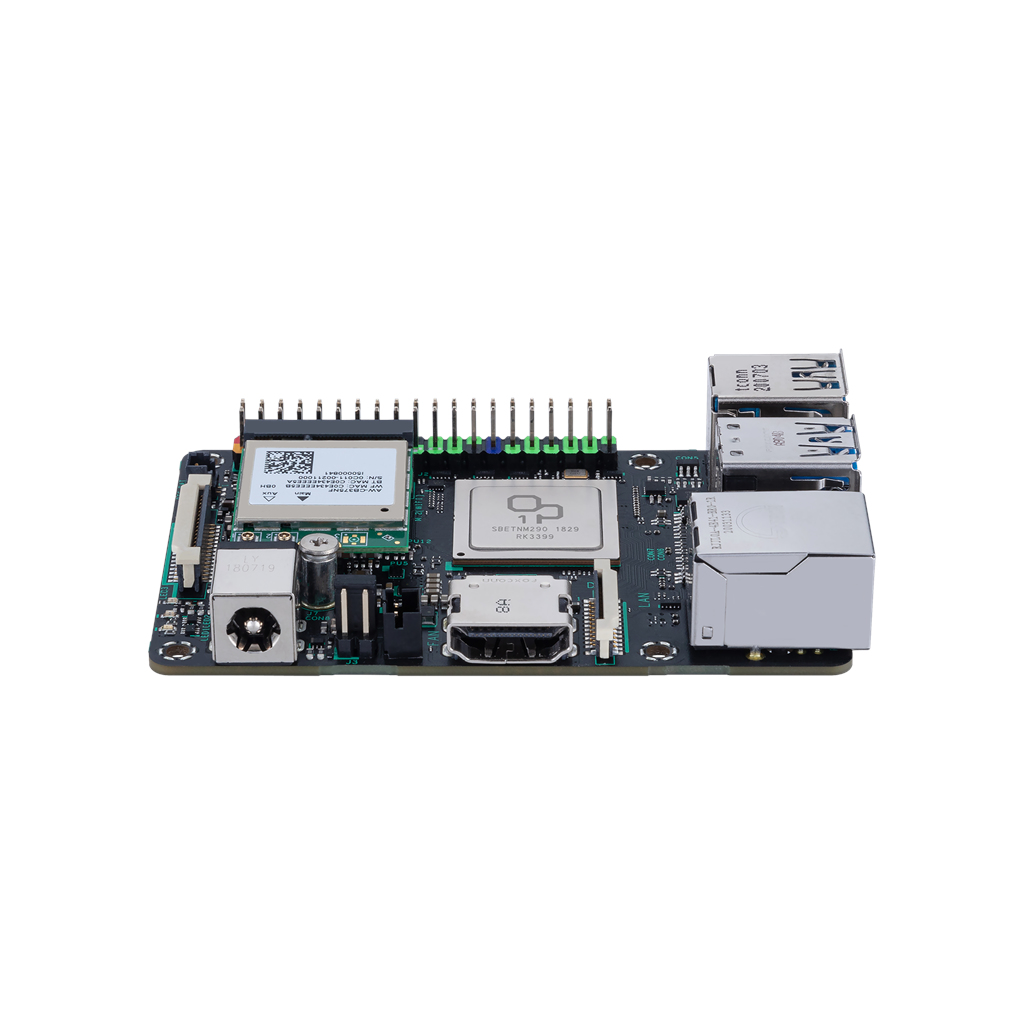

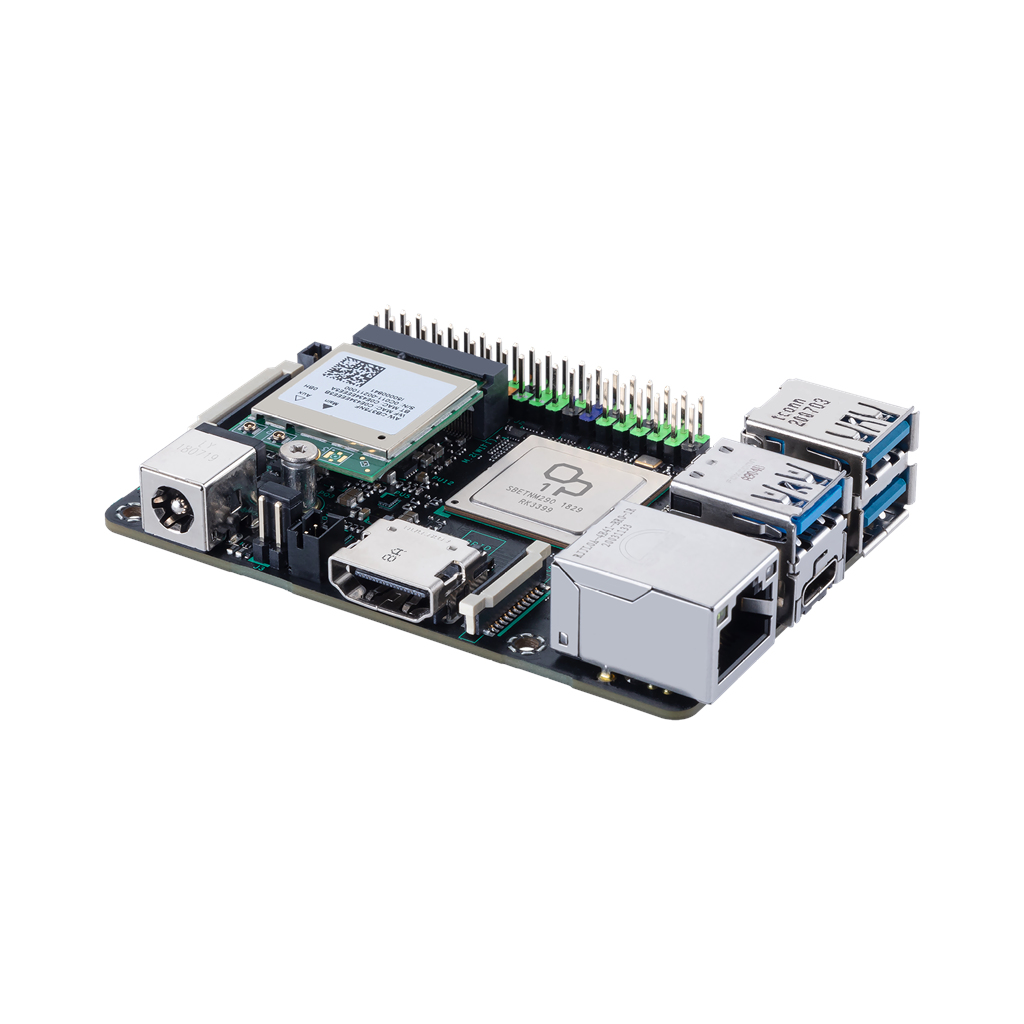

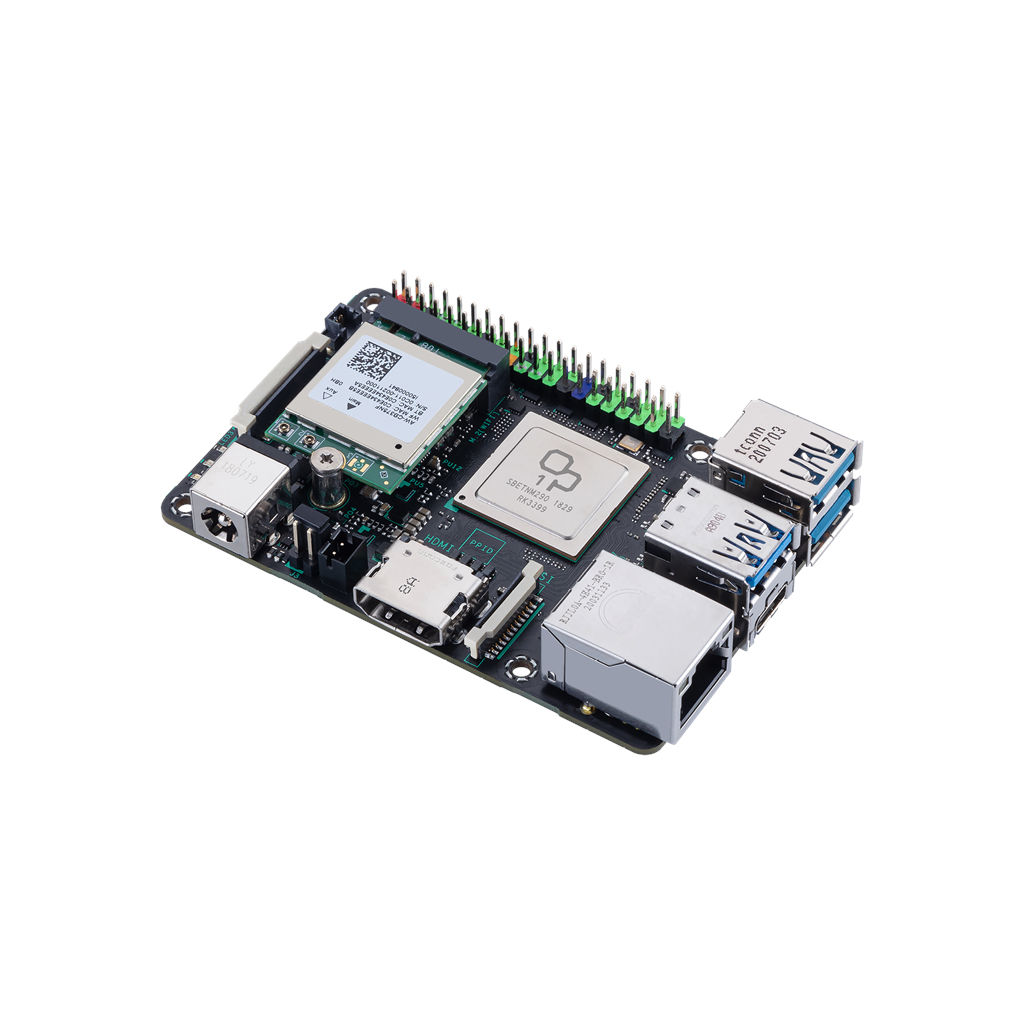

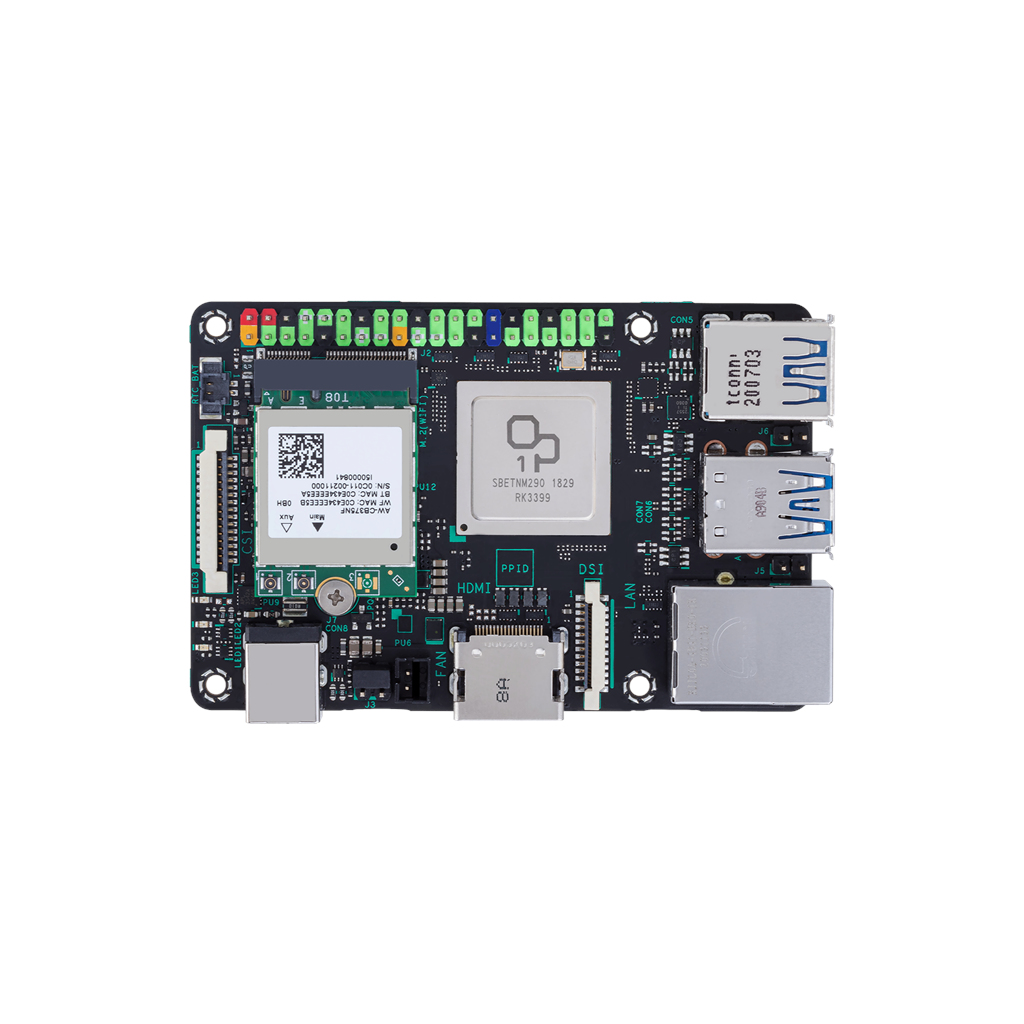

TINKER BOARD 2
Model TINKER BOARD 2Part no. 90ME01N0-M0EAY0EAN 4718017922609
34 specifications
- ProcessorRK3399
- Processor manufacturerRockchip
- Maximum internal memory2 GB
- Wi-FiYes
- DC input voltage12 - 19 V
- Height85 mm
Overview
- Processor
- RK3399
- Processor manufacturer
- Rockchip
- Maximum internal memory
- 2 GB
- Wi-Fi
- Yes
- DC input voltage
- 12 - 19 V
- Height
- 85 mm
- Brand
- ASUS
- Category
- Development Board
- Model
- TINKER BOARD 2
- Part number
- 90ME01N0-M0EAY0
- EAN / UPC
- 4718017922609
- Also known as
- ASUS TINKER BOARD 2 development board RK3399 1.5 MHz
Specifications
34 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Rockchip |
| Processor model | RK3399 |
| Processor frequency | 1.5 MHz |
| Processor cores | 6 |
| 64-bit computing | Yes |
| Processor boost frequency | 2 GHz |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
| Internal memory type | LPDDR4-SDRAM |
| Memory channels | Dual-channel |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 4 |
| Audio port type | I2S |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| S/PDIF out port | Yes |
| GPIO interface | Yes |
| HDMI ports quantity | 1 |
| I2C interface | Yes |
| I2S interface | Yes |
| Integrated LAN | Yes |
| PCM interface | Yes |
| SPI interface | Yes |
| UART | Yes |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 - 19 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 85 mm |
| Width | 56 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
