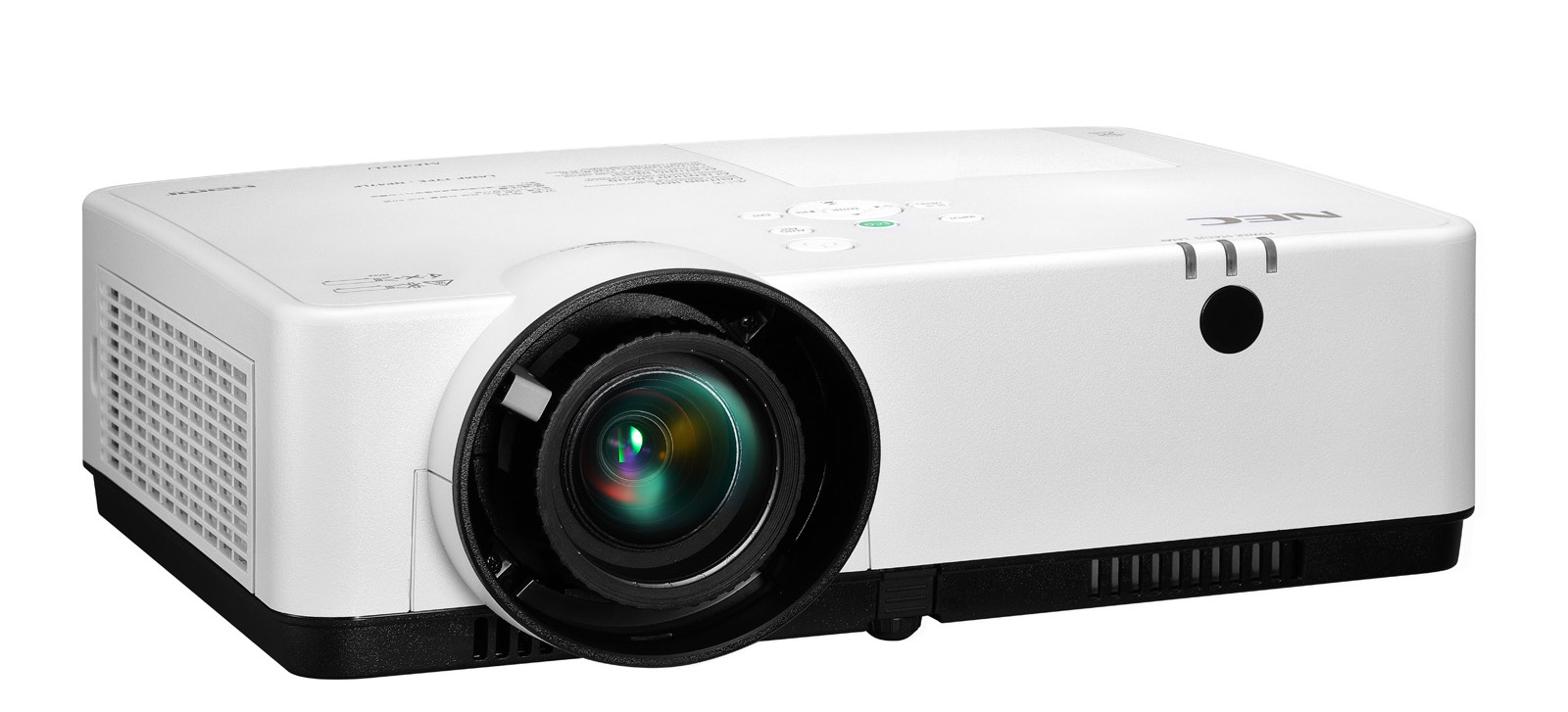

ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White
Model ME382UGPart no. NP-ME382UG
61 specifications
- Noise37 dB
- Weight3.5 kg
- ColourWhite
- Projector brightness3800 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Noise
- 37 dB
- Weight
- 3.5 kg
- Colour
- White
- Projector brightness
- 3800 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- NEC
- Category
- Data Projector
- Model
- ME382UG
- Part number
- NP-ME382UG
- Also known as
- NEC ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White
Specifications
61 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3800 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 16000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.75 - 12.88 m |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 50 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 10000 h |
| Service life of light source (economic mode) | 15000 h |
| Lamp power | 225 W |
| Lamp power (economic mode) | 151 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 17.2 - 27.7 mm |
| Aperture range (F-F) | 1.5 - 2.08 |
| Zoom capability | Yes |
| Zoom type | Manual |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, PAL 60, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160 |

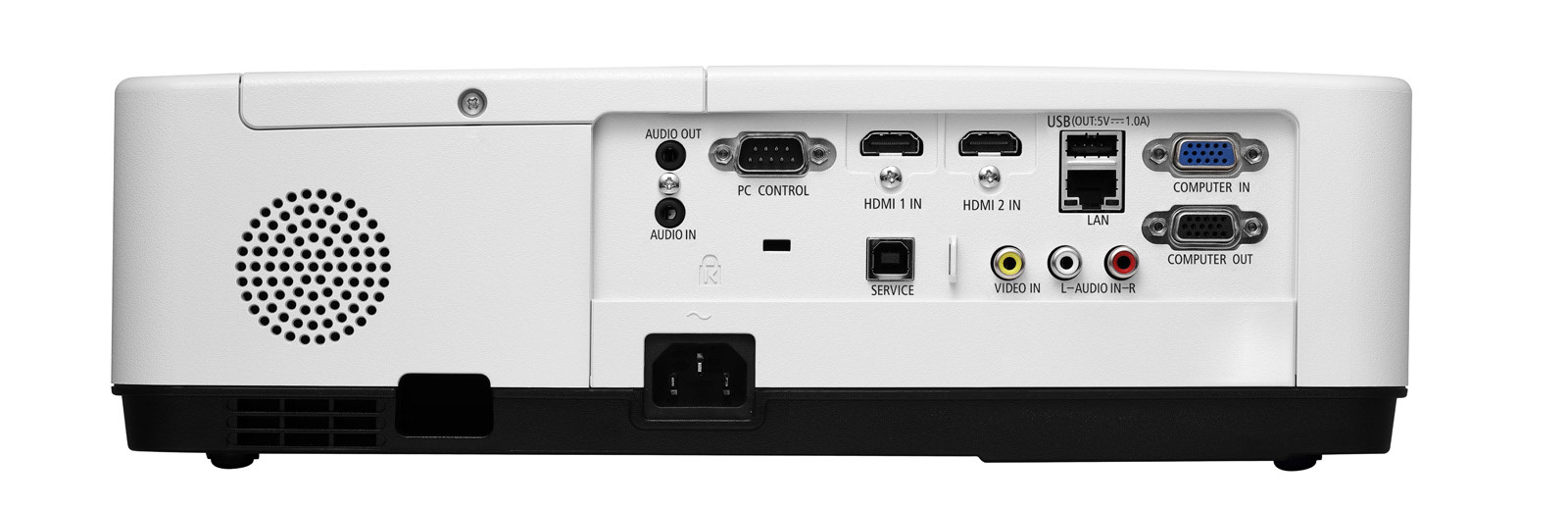

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 37 dB |
| Noise level (economic mode) | 29 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 295 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 207 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.5 kg |
| Width | 345 mm |
| Depth | 261 mm |
| Height | 104.6 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Manual | Yes |
