Product comparison · 2 data projectors

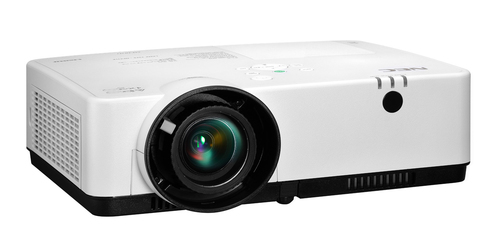

NEC ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White vs NEC P506QLG data projector Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White

49specifications compared
24differ
25identical
23known for one product only

Key differences

Projector brightness
- ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White:3800 ANSI lumens
- P506QLG data projector Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White:5000 ANSI lumens
Projection technology
- ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White:3LCD
- P506QLG data projector Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White:DLP
Projector native resolution
- ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White:WUXGA (1920x1200)
- P506QLG data projector Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White:UHD 4K (3840x2160)
Contrast ratio (typical)
- ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White:16000:1
- P506QLG data projector Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White:500000:1
Native aspect ratio
- ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White:16:10
- P506QLG data projector Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White:16:9
Screen size compatibility
- ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White:762 - 7620 mm (30 - 300")
- P506QLG data projector Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White:1270 - 7874 mm (50 - 310")
Projection distance
- ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White:0.75 - 12.88 m
- P506QLG data projector Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White:1.6 - 8 m
Keystone correction, horizontal
- ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White:-30 - 30°
- P506QLG data projector Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White:0°

Side by side

Differences highlightedShow differences only

Comparison of ME382UG, P506QLG
72 specifications	A NEC ME382UG 3800 ANSI lumens 3LCD WUXGA (1920x1200) White Model ME382UG View product	B NEC P506QLG data projector Standard throw projector 5000 ANSI lumens DLP UHD 4K (3840x2160) 3D White Model P506QLG View product
Projector8 differ
Projector brightnessDiffers	3800 ANSI lumens	5000 ANSI lumens
Projection technologyDiffers	3LCD	DLP
Projector native resolutionDiffers	WUXGA (1920x1200)	UHD 4K (3840x2160)
Contrast ratio (typical)Differs	16000:1	500000:1
Native aspect ratioDiffers	16:10	16:9
Screen size compatibilityDiffers	762 - 7620 mm (30 - 300")	1270 - 7874 mm (50 - 310")
Projection distanceDiffers	0.75 - 12.88 m	1.6 - 8 m
Horizontal synchronization (max)Known for one	100 kHz	Unknown — not stated by the source
Horizontal synchronization (min)Known for one	15 kHz	Unknown — not stated by the source
Keystone correction, horizontalDiffers	-30 - 30°	0°
Keystone correction, vertical	-30 - 30°	-30 - 30°
Vertical synchronization (max)Known for one	120 kHz	Unknown — not stated by the source
Vertical synchronization (min)Known for one	50 kHz	Unknown — not stated by the source
Light source2 differ
Light source typeDiffers	Lamp	Laser
Service life of light sourceDiffers	10000 h	20000 h
Service life of light source (economic mode)Known for one	15000 h	Unknown — not stated by the source
Lamp powerKnown for one	225 W	Unknown — not stated by the source
Lamp power (economic mode)Known for one	151 W	Unknown — not stated by the source
Lens system2 differ
Focus	Manual	Manual
Focal length rangeDiffers	17.2 - 27.7 mm	12.1 - 18.1 mm
Aperture range (F-F)Differs	1.5 - 2.08	1.8 - 2.43
Zoom capability	Yes	Yes
Zoom type	Manual	Manual
Zoom ratioKnown for one	Unknown — not stated by the source	1.5:1
Video1 differ
Analog signal format systemDiffers	NTSC, PAL, PAL 60, SECAM	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HD	Yes	Yes
Supported graphics resolutionsKnown for one	1920 x 1200 (WUXGA), 3840 x 2160	Unknown — not stated by the source
3DKnown for one	Unknown — not stated by the source	Yes
Ports & interfaces1 differ
VGA (D-Sub) ports quantity	1	1
HDMI ports quantity	2	2
Composite video inKnown for one	1	Unknown — not stated by the source
USB 2.0 ports quantityDiffers	1	2
USB 2.0 Type-B ports quantity	1	1
Audio (L/R) inKnown for one	2	Unknown — not stated by the source
Audio (L/R) outKnown for one	1	Unknown — not stated by the source
Serial interface type	RS-232	RS-232
HDBaseT portKnown for one	Unknown — not stated by the source	Yes
3D sync portKnown for one	Unknown — not stated by the source	Yes
Networkidentical
Ethernet LAN	Yes	Yes
Ethernet LAN (RJ-45) ports	1	1
Features2 differ
Noise levelDiffers	37 dB	35 dB
Noise level (economic mode)Differs	29 dB	32 dB
On Screen Display (OSD)Known for one	Unknown — not stated by the source	Yes
Number of OSD languagesKnown for one	Unknown — not stated by the source	30
Password protectionKnown for one	Unknown — not stated by the source	Yes
CertificationKnown for one	Unknown — not stated by the source	CE; EAC; ErP; RoHS; TUEV; TüV GS; RCM
Multimedia1 differ
Built-in speaker(s)	Yes	Yes
Number of built-in speakersKnown for one	1	Unknown — not stated by the source
RMS rated powerDiffers	16 W	10 W
Design1 differ
Market positioningDiffers	Business	Presentation
Product colour	White	White
Product typeKnown for one	Unknown — not stated by the source	Standard throw projector
PlacementKnown for one	Unknown — not stated by the source	Ceiling
Power2 differ
Power source	AC	AC
Power consumption (typical)Differs	295 W	580 W
Power consumption (standby)	0.5 W	0.5 W
Power consumption (economy mode)Differs	207 W	330 W
AC input voltage	100 - 240 V	100 - 240 V
AC input frequency	50 - 60 Hz	50 - 60 Hz
Operational conditionsidentical
Operating temperature (T-T)	5 - 40 °C	5 - 40 °C
Storage temperature (T-T)	-10 - 50 °C	-10 - 50 °C
Operating relative humidity (H-H)	20 - 80%	20 - 80%
Storage relative humidity (H-H)	20 - 80%	20 - 80%
Weight & dimensions4 differ
WeightDiffers	3.5 kg	11.5 kg
WidthDiffers	345 mm	480 mm
DepthDiffers	261 mm	400 mm
HeightDiffers	104.6 mm	158 mm
Packaging contentidentical
Remote control included	Yes	Yes
Remote control type	IR	IR
Batteries included	Yes	Yes
Manual	Yes	Yes
Cables includedKnown for one	Unknown — not stated by the source	AC, VGA

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
