Epson EB-695Wi Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey
Epson

EB-695Wi Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey

Model EB-695WiPart no. V11H740056EAN 9314020620867

125 specifications
  • Noise35 dB
  • TypeUltra short throw projector
  • Weight5.8 kg
  • ColourWhite, Grey
  • Projector brightness3500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
35 dB
Type
Ultra short throw projector
Weight
5.8 kg
Colour
White, Grey
Projector brightness
3500 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
EB-695Wi
Part numbers
V11H740056, V11H740040, V11H740041, V11H740553
EAN / UPC
9314020620867, 4058154237502, 8715946605135, 8715946605142
Also known as
Epson EB-695Wi Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey

Specifications

125 specifications in 19 groups

Projector

Projector brightness3500 ANSI lumens
Projection technology3LCD
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)14000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1524 - 2540 mm (60 - 100")
Projection distance (wide)0 - 0.4 m
Projection distance (tele)0 - 0.6 m
Contrast ratio (dynamic)14000:1
Number of colours1.07 billion colours
Projector brightness (economic mode)2900 ANSI lumens
Vertical scan range100 - 120 Hz
Colour light output3500 ANSI lumens
Keystone correction, horizontal-3 - 3°
Keystone correction, vertical-3 - 3°
Matrix size1.5 cm (0.59")
Vertical synchronization (max)0.12 kHz
Vertical synchronization (min)0.1 kHz
White light output3500 ANSI lumens

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp power250 W

Lens system

FocusManual
Focal length range3.7 mm
Fixed focal length3.7 mm
Aperture range (F-F)0 - 1.6
Zoom typeAuto
Zoom ratio1.35:1
Digital zoom1.35x
Throw ratio0.28 - 0.37:1

Video

Full HDNo
3DNo
Colour modes (2D)Cinema, Dynamic
Video colour modesBlackboard, Cinema, Dynamic, Presentation, sRGB
Video processing10 bit

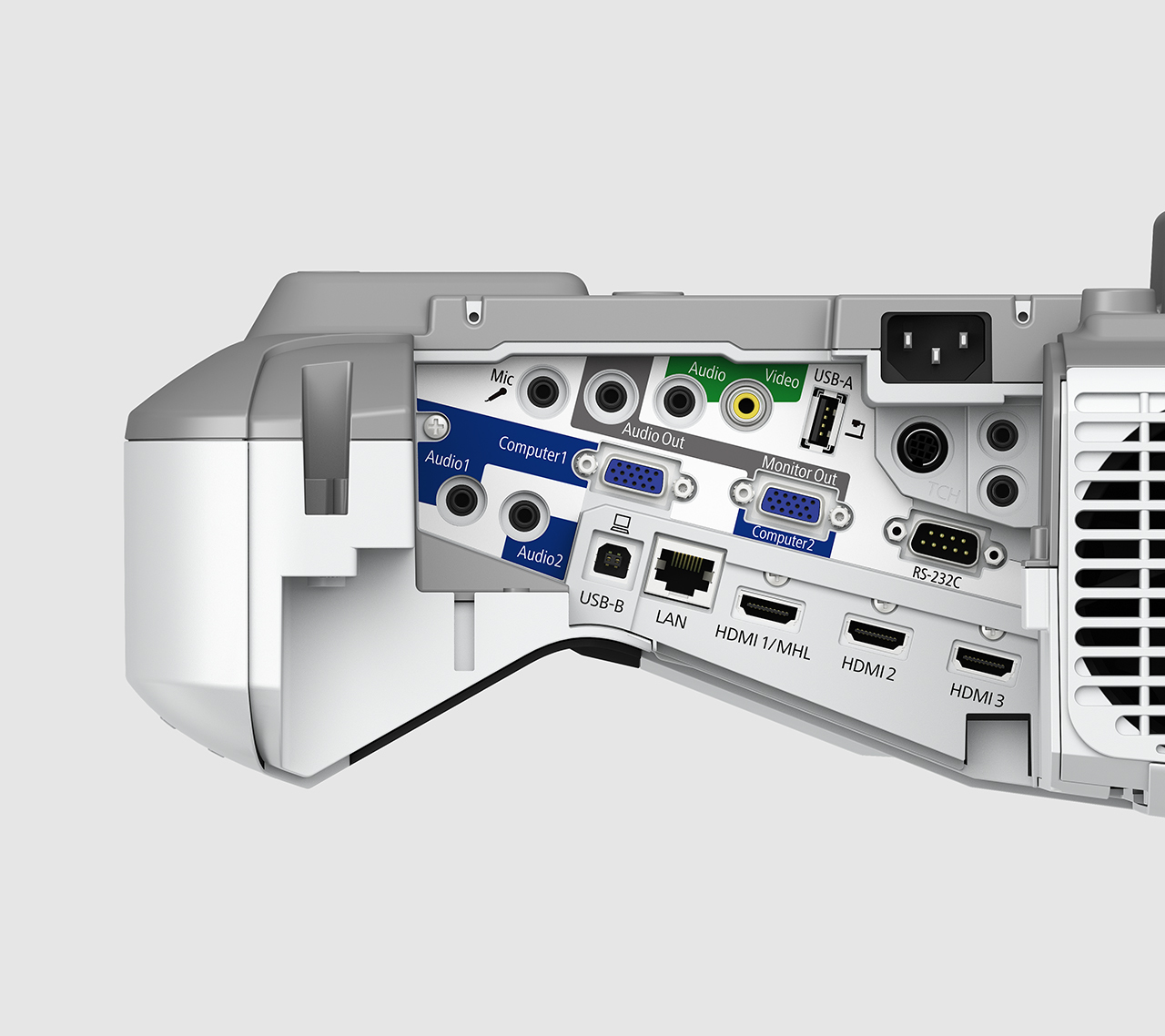

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity3
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
USB 2.0 Type-B ports quantity1
Audio (L/R) in1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232C
Mobile High-Definition Link (MHL)Yes
AC (power) inYes
Consumer Electronics Control (CEC) supportYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s

Storage

Card reader integratedNo

Features

InteractiveYes
Interactive input supportedInteractive pen/Touch
Noise level35 dB
Noise level (economic mode)30 dB
On Screen Display (OSD)Yes
Country of originPhilippines
Password protectionYes
Compatible operating systemsLinux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1
CertificationTCO

Multimedia

Built-in speaker(s)Yes
RMS rated power16 W

Design

Product typeUltra short throw projector
Market positioningEducation
Product colourWhite, Grey
PlacementWall
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)354 W
Power consumption (standby)0.37 W
Power consumption (economy mode)309 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Software

Software supportvia: AMX, Crestron (Network), Control4
Mac compatibilityYes
Windows operating systems supportedWindows 10, Windows 8, Windows 8.1
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight5.8 kg
Width367 mm
Depth400 mm
Height149 mm
Package width490 mm
Package depth740 mm
Package height335 mm
Package weight21.6 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC
ManualYes
Mounting brackets includedYes
Quick start guideYes
WLAN adapter includedYes
Warranty cardYes
Bundled softwareEasy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management

Technical details

Sustainability certificatesTCO
USB display function3 in 1: Image / Mouse / Sound

Logistics data

Quantity per pack1 pc(s)
Harmonized System (HS) code85286200
Pallet gross height15 cm
Pallet gross length120 cm
Pallet gross weight0 g
Pallet gross width80 cm
Pallet height (UK)15 cm
Pallet length (UK)120 cm
Pallet weight (UK)0 g
Pallet width (UK)100 cm
Products per pallet12 pc(s)
Products per pallet (UK)12 pc(s)
Products per pallet layer2 pc(s)
Products per pallet layer (UK)2 pc(s)

Other features

RS-232 ports1
RS-232CYes
