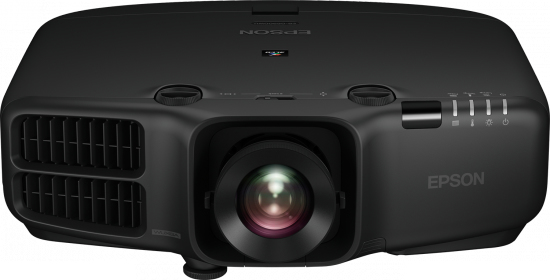

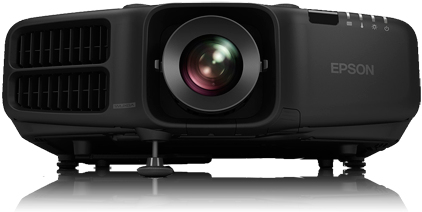

Epson EB-G6970WU
Epson

EB-G6970WU

Model EB-G6970WUPart no. V11H697041EAN 8715946548678

110 specifications
  • Noise39 dB
  • TypeLarge venue projector
  • Weight9.7 kg
  • ColourBlack
  • Projector brightness6000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
39 dB
Type
Large venue projector
Weight
9.7 kg
Colour
Black
Projector brightness
6000 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
EB-G6970WU
Part numbers
V11H697041, V11H697040
EAN / UPC
8715946548678, 8715946548661
Also known as
Epson EB-G6970WU

Specifications

110 specifications in 18 groups

Projector

Projector brightness6000 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)5000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1270 - 7620 mm (50 - 300")
Projection distance1.4 - 15 m
Projection distance (wide)1.4 - 8.4 m
Projection distance (tele)2.5 - 15 m
Contrast ratio (dynamic)5000:1
Projector brightness (economic mode)4200 ANSI lumens
Vertical scan range50 - 85 Hz
Colour light output6000 ANSI lumens
Keystone correction, horizontal±30°
Keystone correction, vertical±30°
Matrix size1.93 cm (0.76")
White light output6000 ANSI lumens

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)4000 h
Lamp power380 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range21.28 - 37.94 mm
Aperture range (F-F)1.65 - 2.55
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.8:1
Throw ratio1.26 - 2.30:1
Horizontal lens shift range-30 - -30%
Vertical lens shift range-67 - -67%

Video

Full HDYes
HD-ReadyYes
3DNo
3D ReadyNo
Colour modes (2D)Auto, Cinema, Dynamic, Natural
Supported graphics resolutions1920 x 1080 (HD 1080)
Video colour modesCustom, DICOM simulation mode, Dynamic, Natural, Photo, Presentation, sRGB
Video processing10 bit

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity1
Composite video in1
DisplayPorts quantity1
S-Video inputs quantity1
Audio (L/R) in4
Audio (L/R) out2
Serial interface typeRS-232
BNC input ports1
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Wi-FiNo
BluetoothNo

Storage

Card reader integratedNo

Features

Noise level39 dB
Noise level (economic mode)31 dB
Noise level (standby)31 dB
2D/3D frequency image50 - 85 Hz
Country of originChina

Multimedia

Built-in speaker(s)No

Design

Product typeLarge venue projector
Product colourBlack
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)542 W
Power consumption (standby)0.41 W
Power consumption (economy mode)405 W
AC input voltage110 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)10 - 50 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight9.7 kg
Width505 mm
Depth406 mm
Height171 mm
Package width635 mm
Package depth675 mm
Package height245 mm
Package weight14 kg

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
ManualYes
Bundled softwareEasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection

Technical details

Other featuresDirect Power on/off, Epson Cinema Filter, Frame interpolation, Freeze image, Instant on/off, Mute key, Network administration, Network image transmission, Quick Corner, Split-Screen-Function, Super resolution
Power consumption542 Watt (Normal Peak-mode), 405 Watt (Eco Peak-Mode), 0.41 Watt (Energy saving standby)

Logistics data

Quantity per pack1 pc(s)
Pallet gross height198.7 cm
Pallet gross length120 cm
Pallet gross width2.07 m
Pallet height (UK)2.48 m
Pallet length (UK)120 cm
Pallet width (UK)2.07 m
Products per pallet8 pc(s)
Products per pallet (UK)8 pc(s)
Products per pallet layer1 pc(s)
Products per pallet layer (UK)1 pc(s)

Other features

InterfaceRS-232C, Ethernet interface (100 Base-TX / 10 Base-T), HD-SDI, HDBaseT, VGA in, VGA out, HDMI in, Display Port, Composite in, BNC in, S-Video in, RGB out, Jack plug out, Jack plug in (4x), Cinch audio in
RS-232 ports1
Security featuresKensington lock, Security bar, Password lock
Option typeMB22 ceiling mount
Box contentsCD Manual, Cable cover, Cable hook, Computer cable, Power cable, Remote control incl. batteries
Control panel0.76 inch with C2 Fine
