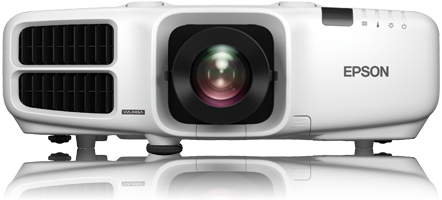

Epson EB-G6770WU
Epson

EB-G6770WU

Model EB-G6770WUPart no. V11H699041EAN 8715946548630

112 specifications
  • Noise39 dB
  • TypeLarge venue projector
  • Weight9.9 kg
  • ColourWhite
  • Projector brightness6000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
39 dB
Type
Large venue projector
Weight
9.9 kg
Colour
White
Projector brightness
6000 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
EB-G6770WU
Part numbers
V11H699041, V11H699040
EAN / UPC
8715946548630, 4053162974272, 8715946548623
Also known as
Epson EB-G6770WU

Specifications

112 specifications in 18 groups

Projector

Projector brightness6000 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)5000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility1270 - 7620 mm (50 - 300")
Projection distance1.4 - 15 m
Projection distance (wide)1.4 - 8.4 m
Projection distance (tele)2.5 - 15 m
Contrast ratio (dynamic)5000:1
Projector brightness (economic mode)4200 ANSI lumens
Colour light output6000 ANSI lumens
Keystone correction, horizontal±30°
Keystone correction, vertical±30°
Matrix size1.93 cm (0.76")
White light output6000 ANSI lumens

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)4000 h
Lamp power380 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range21.28 - 37.94 mm
Aperture range (F-F)1.65 - 2.55
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.8:1
Throw ratio1.26 - 2.30:1
Horizontal lens shift range-30 - -30%
Vertical lens shift range-67 - -67%

Video

Full HDYes
HD-ReadyYes
3DNo
3D ReadyNo
Supported graphics resolutions1920 x 1080 (HD 1080)
Video colour modesDICOM simulation mode, Dynamic, Photo, Presentation, sRGB, Theatre
Video processing10 bit

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Composite video in1
DisplayPorts quantity1
S-Video inputs quantity1
Audio (L/R) in4
Audio (L/R) out1
Serial interface typeRS-232
BNC input ports1
DC-in jackYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Wi-FiNo
BluetoothNo

Storage

Card reader integratedNo

Features

Noise level39 dB
Noise level (economic mode)31 dB
Noise level (standby)31 dB
Country of originChina

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power10 W

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop, Ceiling
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)542 W
Power consumption (standby)0.41 W
Power consumption (economy mode)405 W
AC input voltage110 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight9.9 kg
Width505 mm
Depth406 mm
Height171 mm
Package width635 mm
Package depth675 mm
Package height245 mm
Package weight14.1 kg

Packaging content

Remote control includedYes
Remote control typeIR
Batteries includedYes
AC adapter includedYes
Cables includedHDMI
ManualYes
Bundled softwareEasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection

Technical details

Other featuresAV Mute Slide, Direct Power on/off, Frame interpolation, Freeze image, Instant on/off, Network administration, Network image transmission, Quick Corner, Six axis color control, Split-Screen-Function
Power consumption542 Watt (Normal Peak-mode), 405 Watt (Eco Peak-Mode), 0.41 Watt (Energy saving standby)

Logistics data

Quantity per pack1 pc(s)
Pallet gross height199 cm
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)199 cm
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet8 pc(s)
Products per pallet (UK)8 pc(s)
Products per pallet layer1 pc(s)
Products per pallet layer (UK)1 pc(s)

Other features

InterfaceCinch audio out, VGA in, RS-232C, HDMI in, Display Port, S-Video in, VGA out, Jack plug out, Jack plug in (4x), Composite in, Ethernet interface (100 Base-TX / 10 Base-T), BNC in, HDBaseT
RS-232 ports1
Security featuresKensington lock, Security bar, Password lock
Option typeMB22 ceiling mount
Box contentsCable cover, Computer cable, HDMI Cable Clamp, Lens cap, Power cable, Remote control incl. batteries, User manual
Control panel0.76 inch with C2 Fine
