Epson EB-680 Ultra short throw projector 3500 ANSI lumens 3LCD XGA (1024x768) Grey, White
Epson

EB-680 Ultra short throw projector 3500 ANSI lumens 3LCD XGA (1024x768) Grey, White

Model EB-680Part no. V11H746553EAN 9314020620928

109 specifications
  • Noise35 dB
  • TypeUltra short throw projector
  • Weight5.7 kg
  • ColourGrey, White
  • Projector brightness3500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
35 dB
Type
Ultra short throw projector
Weight
5.7 kg
Colour
Grey, White
Projector brightness
3500 ANSI lumens
Light source type
Lamp
Brand
Epson
Model
EB-680
Part numbers
V11H746553, V11H746040, V11H746041
EAN / UPC
9314020620928, 4058154237526, 8715946605258, 8715946605265
Also known as
Epson EB-680 Ultra short throw projector 3500 ANSI lumens 3LCD XGA (1024x768) Grey, White

Specifications

109 specifications in 19 groups

Projector

Projector brightness3500 ANSI lumens
Projection technology3LCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)300:1
Native aspect ratio4:3
Supported aspect ratios4:3
Screen size compatibility1422.4 - 2362.2 mm (56 - 93")
Projection distance0.4 - 0.6 m
Projection distance (wide)0 - 0.4 m
Projection distance (tele)0 - 0.6 m
Contrast ratio (dynamic)14000:1
Number of colours1.073 billion colours
Projector brightness (economic mode)2800 ANSI lumens
Keystone correction, horizontal±3°
Keystone correction, vertical±3°
Matrix size1.4 cm (0.55")

Light source

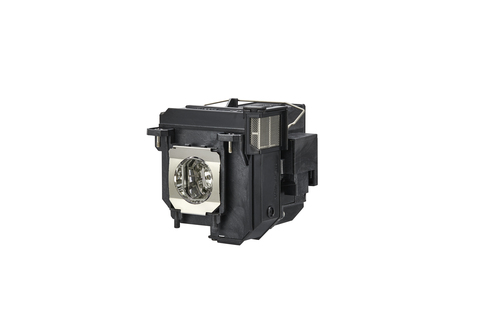

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)10000 h
Lamp power250 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range0 - 3.76 mm
Zoom capabilityYes
Zoom ratio1.35:1
Digital zoom1.35x

Video

Full HDNo
3DNo
Colour modes (2D)Cinema, Dynamic
Video colour modesBlackboard, Cinema, Dynamic, Presentation, sRGB
Video processing10 bit

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity3
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity2
Audio (L/R) in1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232C
USB connector typeUSB Type-A, USB Type-B
Mobile High-Definition Link (MHL)Yes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s

Storage

Card reader integratedNo

Features

Noise level35 dB
Noise level (economic mode)28 dB
On Screen Display (OSD)Yes
2D/3D frequency image100 - 120 Hz
Air filterYes
Country of originPhilippines
Password protectionYes

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W

Design

Product typeUltra short throw projector
Market positioningUlta short throw
Product colourGrey, White
PlacementWall
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)354 W
Power consumption (standby)0.39 W
Power consumption (PowerSave)310 W
AC input voltage220 - 240 V
AC input frequency50 - 60 Hz

Software

Mac compatibilityYes
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows
Mac operating systems supportedMac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight5.7 kg
Width367 mm
Depth400 mm
Height149 mm
Package width335 mm
Package depth730 mm
Package height490 mm
Package weight18.822 g

Packaging content

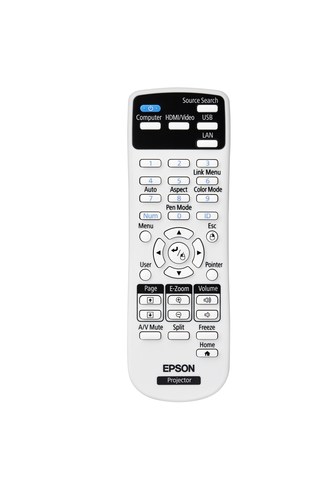

Remote control includedYes
Remote control typeIR
Batteries includedYes
Cables includedUSB
ManualYes
Quick start guideYes
Warranty cardYes
Bundled softwareEasyMP Monitor, EasyMP Multi PC Projection

Technical details

ColourYes

Logistics data

Quantity per pack1 pc(s)
Pallet gross height102 cm
Pallet gross length120 cm
Pallet gross width80 cm
Pallet height (UK)102 cm
Pallet length (UK)120 cm
Pallet width (UK)100 cm
Products per pallet12 pc(s)
Products per pallet (UK)12 pc(s)
Products per pallet layer2 pc(s)
Products per pallet layer (UK)2 pc(s)

Other features

RS-232 ports1
RS-232CYes
