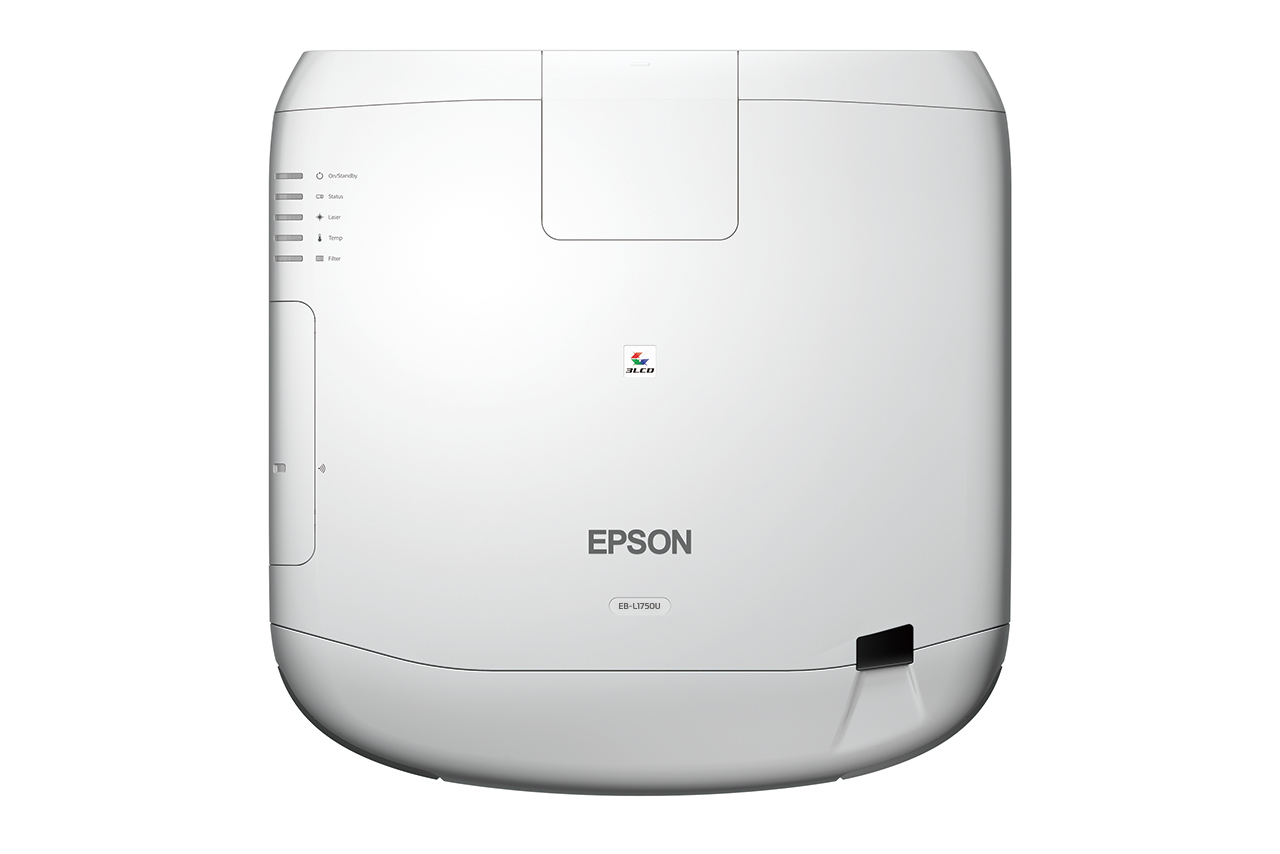

Epson EB-L1750U
Epson

EB-L1750U

Model EB-L1750UPart no. V11H892040EAN 8715946646947

112 specifications
  • Noise40 dB
  • TypeLarge venue projector
  • Weight24.1 kg
  • ColourWhite
  • Projector brightness15000 ANSI lumens
  • Light source typeLaser
See all specifications

Overview

Noise
40 dB
Type
Large venue projector
Weight
24.1 kg
Colour
White
Projector brightness
15000 ANSI lumens
Light source type
Laser
Brand
Epson
Model
EB-L1750U
Part number
V11H892040
EAN / UPC
8715946646947
Also known as
Epson EB-L1750U

Specifications

112 specifications in 19 groups

Projector

Projector brightness15000 ANSI lumens
Projection technology3LCD
Projector native resolutionWUXGA (1920x1200)
Contrast ratio (typical)2000:1
Native aspect ratio16:10
Screen size compatibility1524 - 12700 mm (60 - 500")
Projection distance1.99 - 27.77 m
Projection distance (wide)2 - 17.2 m
Projection distance (tele)3.3 - 27.8 m
Contrast ratio (dynamic)2500000:1
Number of colours1.07 billion colours
Projector brightness (economic mode)10500 ANSI lumens
Projector brightness (portrait mode)15000 ANSI lumens
Keystone correction, horizontal±30°
Keystone correction, vertical±45°
Matrix size2.62 cm (1.03")

Light source

Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h

Lens system

FocusMotorized
Focal length range36 - 57.35 mm
Aperture range (F-F)1.8 - 2.5
Zoom capabilityYes
Zoom typeAuto
Zoom ratio1.6:1
Throw ratio1.57 - 2.56:1
Horizontal lens shift range-18 - -18%
Vertical lens shift range-60 - -60%
Lens position memory10
Interchangeable lensYes

Video

Full HDYes
3DNo
Video colour modesBT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity1
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in0
DVI portYes
S-Video inputs quantity0
HDBaseT portYes
USB 2.0 ports quantity0
USB 2.0 Type-B ports quantity1
Audio (L/R) in0
Serial interface typeRS-232C
PC Audio inYes
PC Audio outYes
BNC input ports1

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level40 dB
Noise level (economic mode)32 dB
Country of originChina
Password protectionYes

Multimedia

Built-in speaker(s)No

Design

Product typeLarge venue projector
Product colourWhite
PlacementCeiling
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)1024 W
Power consumption (standby)0.3 W
Power consumption (max)1024 W
Power consumption (economy mode)647 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Software supportvia: AMX, Crestron (Network), Extron

Operational conditions

Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Weight24.1 kg
Width586 mm
Depth492 mm
Height211 mm
Package width750 mm
Package depth780 mm
Package height325 mm
Package weight34 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
ManualYes
Quick start guideYes
WLAN adapter includedYes
Bundled softwareEasyMP Monitor, EasyMP Multi PC Projection

Technical details

Mobile app supportYes
Other features4K enhancement, Absolute Black, Auto Calibration, Customizable user logo, Frame interpolation, Integrated camera for image calibration & image capture, Lens position memory
Power consumption938 Watt (Normal On-Mode), 1,024 Watt (Normal Peak-mode), 647 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby)

Logistics data

Quantity per pack1 pc(s)
Harmonized System (HS) code85286200
Pallet gross height2.39 m
Pallet gross length120 cm
Pallet gross weight0 g
Pallet gross width80 cm
Pallet height (UK)2.39 m
Pallet length (UK)120 cm
Pallet weight (UK)0 g
Pallet width (UK)100 cm
Products per pallet4 pc(s)
Products per pallet (UK)4 pc(s)
Products per pallet layer1 pc(s)
Products per pallet layer (UK)1 pc(s)

Other features

InterfaceJack plug in (3x), Jack plug out, HDBaseT, BNC in, HDMI in, DVI in, VGA out, VGA in, Ethernet interface (100 Base-TX / 10 Base-T), RS-232C, USB 2.0 Type B (Service Only), HD-SDI, Wireless LAN b/g/g 25GHz (optional)
RS-232CYes
Security featuresKensington lock, Security bar, Wireless LAN unit lock, Wireless LAN security, Password protection
Option typeHDBaseT Transmitter, Quick wireless USB key, Wireless LAN unit
Box contentsCD Manual, Cable cover, Computer cable, Power and signal cable (3 m), Quick Start Guide, Remote control incl. batteries
Control panel1.03 inch with C2 Fine
