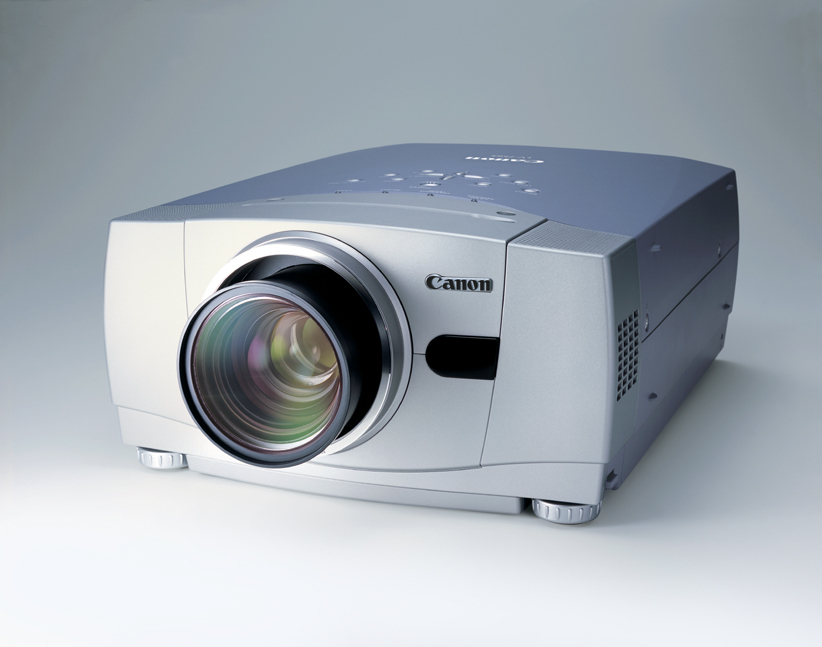

Canon LV -7565F data projector Large venue projector 5100 ANSI lumens 3LCD XGA (1024x768) Grey

Canon LV -7565F data projector Large venue projector 5100 ANSI lumens 3LCD XGA (1024x768) Grey

Model LV-7565F

60 specifications
  • TypeLarge venue projector
  • Weight9.3 kg
  • ColourGrey
  • Projector brightness5100 ANSI lumens
  • Light source typeLamp
  • FocusManual
See all specifications

Overview

Type
Large venue projector
Weight
9.3 kg
Colour
Grey
Projector brightness
5100 ANSI lumens
Light source type
Lamp
Focus
Manual
Brand
Canon
Model
LV-7565F
Part number
LV-7565F
Also known as
Canon LV -7565F data projector Large venue projector 5100 ANSI lumens 3LCD XGA (1024x768) Grey

Specifications

60 specifications in 15 groups

Projector

Projector brightness5100 ANSI lumens
Projection technology3LCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)1000:1
Native aspect ratio4:3
Supported aspect ratios4:3
Screen size compatibility787.4 - 10160 mm (31 - 400")
Projection distance1.4 - 14.7 m
Number of colours16.78 million colours
Horizontal scan range15 - 100 kHz
Vertical scan range50 - 100 Hz
Keystone correction, horizontal-10 - 10°
Keystone correction, vertical-40 - 40°
Matrix size3.3 cm (1.3")
Matrix type3-panel (p-Si TFT active)

Light source

Light source typeLamp
Lamp typeNSH
Lamp power300 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range48.2 - 62.6 mm
Aperture range (F-F)1.7 - 2
Zoom capabilityYes
Zoom typeAuto

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDNo
3DNo
Supported graphics resolutions1024 x 768 (XGA)

Ports & interfaces

VGA (D-Sub) ports quantity1
Component video (YPbPr/YCbCr) in1
DVI portYes
S-Video inputs quantity1
Audio (L/R) in1
Headphone outputs1
Microphone inYes
PC in (D-Sub)Yes
AC (power) inYes

Network

Ethernet LANNo
Wi-FiNo

Storage

Card reader integratedNo

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power4 W

Design

Product typeLarge venue projector
Product colourGrey
PlacementDesktop

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)300 W
Power consumption (max)450 W
AC input voltage100 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 35 °C

Weight & dimensions

Weight9.3 kg
Width319 mm
Depth465.2 mm
Height168 mm

Packaging content

Remote control includedNo
ManualYes

Other features

Number of bulbs1 bulb(s)
