Product comparison · 2 data projectors

Canon LV -7555F data projector Large venue projector 4600 ANSI lumens 3LCD XGA (1024x768) White vs Canon LV -7565F data projector Large venue projector 5100 ANSI lumens 3LCD XGA (1024x768) Grey

Add a product
  • 59specifications compared
  • 4differ
  • 55identical
  • 2known for one product only

Key differences

  • Projector brightness
    • 4600 ANSI lumens
    • 5100 ANSI lumens
  • Contrast ratio (typical)
    • 900:1
    • 1000:1
  • Product colour
    • White
    • Grey
  • Power consumption (typical)
    • 350 W
    • 300 W

Side by side

Differences highlightedShow differences only
61 specifications
A

Canon

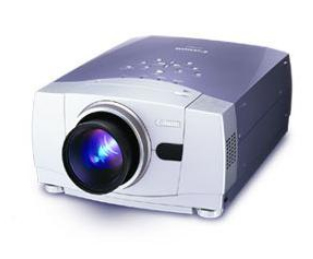

LV -7555F data projector Large venue projector 4600 ANSI lumens 3LCD XGA (1024x768) White

Model LV-7555F

View product
B

Canon

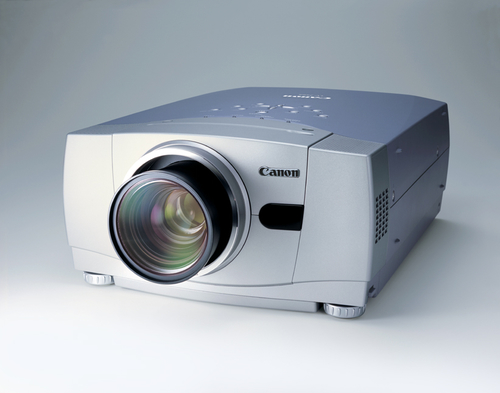

LV -7565F data projector Large venue projector 5100 ANSI lumens 3LCD XGA (1024x768) Grey

Model LV-7565F

View product
Projector2 differ
Projector brightnessDiffers4600 ANSI lumens5100 ANSI lumens
Projection technology3LCD3LCD
Projector native resolutionXGA (1024x768)XGA (1024x768)
Contrast ratio (typical)Differs900:11000:1
Native aspect ratio4:34:3
Supported aspect ratios4:34:3
Screen size compatibility787.4 - 10160 mm (31 - 400")787.4 - 10160 mm (31 - 400")
Projection distance1.4 - 14.7 m1.4 - 14.7 m
Number of colours16.78 million colours16.78 million colours
Horizontal scan range15 - 100 kHz15 - 100 kHz
Vertical scan range50 - 100 Hz50 - 100 Hz
Keystone correction, horizontal-10 - 10°-10 - 10°
Keystone correction, vertical-40 - 40°-40 - 40°
Matrix size3.3 cm (1.3")3.3 cm (1.3")
Matrix type3-panel (p-Si TFT active)3-panel (p-Si TFT active)
Light sourceidentical
Light source typeLampLamp
Lamp typeNSHNSH
Lamp power300 W300 W
Lamps quantity1 lamp(s)1 lamp(s)
Lens systemidentical
FocusManualManual
Focal length range48.2 - 62.6 mm48.2 - 62.6 mm
Aperture range (F-F)1.7 - 21.7 - 2
Zoom capabilityYesYes
Zoom typeAutoAuto
Videoidentical
Analog signal format systemNTSC, PAL, SECAMNTSC, PAL, SECAM
Full HDNoNo
3DNoNo
Supported graphics resolutions1024 x 768 (XGA)1024 x 768 (XGA)
Ports & interfacesidentical
VGA (D-Sub) ports quantity11
Component video (YPbPr/YCbCr) in11
DVI portYesYes
S-Video inputs quantity11
Audio (L/R) in11
Headphone outputs11
Microphone inYesYes
PC in (D-Sub)YesYes
AC (power) inYesYes
Networkidentical
Ethernet LANNoNo
Wi-FiNoNo
Storageidentical
Card reader integratedNoNo
Featuresidentical
HDCPKnown for oneYes
Multimediaidentical
Built-in speaker(s)YesYes
Number of built-in speakers22
RMS rated power4 W4 W
Design1 differ
Product typeLarge venue projectorLarge venue projector
Product colourDiffersWhiteGrey
PlacementDesktopDesktop
Displayidentical
Built-in displayNoNo
Power1 differ
Power sourceACAC
Power consumption (typical)Differs350 W300 W
Power consumption (max)450 W450 W
AC input voltage100 V100 V
AC input frequency50 - 60 Hz50 - 60 Hz
Operational conditionsidentical
Operating temperature (T-T)5 - 35 °C5 - 35 °C
Weight & dimensionsidentical
Weight9.3 kg9.3 kg
Width319 mm319 mm
Depth465.2 mm465.2 mm
Height168 mm168 mm
Packaging contentidentical
Remote control includedNoNo
ManualYesYes
Other featuresidentical
Number of bulbsKnown for one1 bulb(s)

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
