3M X26 data projector 3200 ANSI lumens LCD XGA (1024x768) White

3M X26 data projector 3200 ANSI lumens LCD XGA (1024x768) White

Model X26EAN 051125633826

83 specifications
  • ConnectivityWired
  • Noise37 dB
  • Weight2.2 kg
  • ColourWhite
  • Projector brightness3200 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Connectivity
Wired
Noise
37 dB
Weight
2.2 kg
Colour
White
Projector brightness
3200 ANSI lumens
Light source type
Lamp
Brand
3M
Model
X26
Part numbers
X26, 78923677229
EAN / UPC
051125633826
Also known as
3M X26 data projector 3200 ANSI lumens LCD XGA (1024x768) White

Specifications

83 specifications in 16 groups

Projector

Projector brightness3200 ANSI lumens
Projection technologyLCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)500:1
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance1.8 - 2.2 m
Number of colours16.78 million colours
Projector brightness (economic mode)2200 ANSI lumens
Horizontal scan range31.5 - 106 kHz
Vertical scan range56 - 120 Hz
Keystone correction, vertical±30°
Matrix size1.6 cm (0.63")
Matrix type3-panel (p-Si TFT active)

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)4000 h
Lamp typeUHB
Lamp power200 W
Lamp power (economic mode)140 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range19 - 23 mm
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.2:1
Optical zoom1.2x
Throw ratio1.5 - 1.8:1
Magnification4x

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Full HDNo
HD-ReadyYes
3DNo
Supported graphics resolutions1024 x 768 (XGA), 1600 x 1200 (UXGA)
Supported video modes1080i, 480i, 480p, 576i, 720p

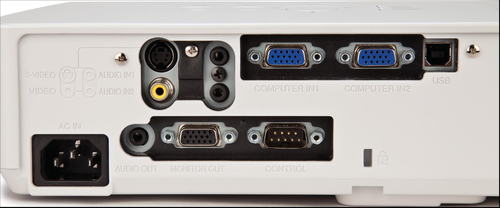

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity0
Component video (YPbPr/YCbCr) in1
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
USB connector typeUSB Type-B
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level37 dB
Noise level (economic mode)30 dB
CertificationUL, cUL, FCC Part 15 Subpart B, Class B, EN60950-1, CE

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power1 W
TV tuner integratedNo

Design

Product colourWhite

Power

Power consumption (typical)290 W
Power consumption (standby)1 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Auto power offYes

Supplier features

Battery typeAA

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 60 °C
Operating altitude0 - 1829 m

Weight & dimensions

Weight2.2 kg
Width306 mm
Depth221 mm
Height77 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedVGA

Other features

Aspect ratio4:3, 14:9, 16:9
Audio input2
Audio output2
Connectivity technologyWired
Dimensions (WxDxH)306 x 221 x 77 mm
Lens systemF = 1.67 - 1.91
Maximum analog resolution1600 x 1200 pixels
RS-232 ports1
Digital keystone correctionYes
