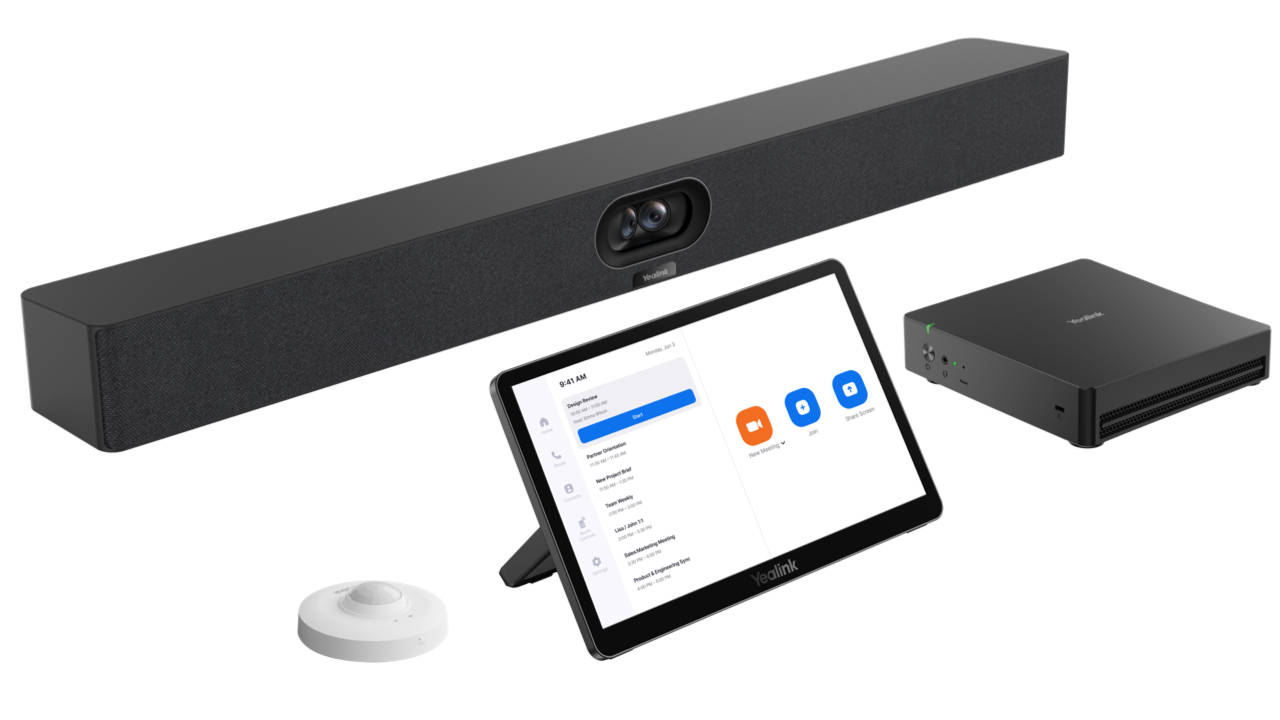

ZVC S40-C5U-000
Model ZVC S40-C5U-000Part no. 1109941EAN 841885130006
64 specifications
- Display29.5 cm (11.6")
- Resolution1920 x 1080 pixels
- ProcessorIntel Core Ultra 5
- Memory16000 MB
- Storage256 GB
- TypeGroup video conferencing system
Overview
- Display
- 29.5 cm (11.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel Core Ultra 5
- Memory
- 16000 MB
- Storage
- 256 GB
- Type
- Group video conferencing system
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- ZVC S40-C5U-000
- Part number
- 1109941
- EAN / UPC
- 841885130006, 6938818323834
- Also known as
- Yealink ZVC S40-C5U
Specifications
64 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Product colour | Black, Grey |
| Meeting features | Content sharing |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Total megapixels | 45 MP |
| Supported video modes | 1080p, 2160p |
| Maximum frame rate | 30 fps |
| Streaming capability | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Noise reduction | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16000 MB |
| Internal memory type | DDR5 |
| Storage media type | SSD |
| Total storage capacity | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Reset slot | Yes |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI input ports quantity | 1 |
| Interface module HDMI output ports quantity | 3 |
| Interface module RJ-45 ports quantity | 2 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 48 MP |
| Camera type | Dual camera |
| Second camera resolution | 48 MP |
| Digital zoom | 6x |
| Field of view (FOV) angle | 120° |
| Horizontal field of view | 111° |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | IPS |
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
Microphone
| Specification | Value |
|---|---|
| Number of microphone arrays | 8 |
Computer system
| Specification | Value |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel Core Ultra 5 |
| Applications supported | Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings, Yeallink RoomConnect |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 188 x 188 x 47.5 mm |
| Weight | 9.27 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 743 mm |
| Package depth | 304 mm |
| Package height | 280 mm |
| Package weight | 10.2 kg |
Packaging content
| Specification | Value |
|---|---|
| External interface module included | Yes |
| Camera included | Yes |
