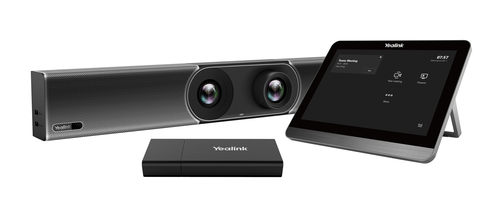

MeetingBar A30 + CTP18 Collaboration Touch Panel + VCH51 Sharing Box
Model MeetingBar A30 + CTP18 Collaboration Touch Panel + VCH51 Sharing BoxPart no. 1206622EAN 6938818307032
60 specifications
- TypeVideo collaboration bar
- OSAndroid 9
- ColourGrey
- Built-in speaker(s)Yes
- HDMI input ports quantity1
- Megapixel (approx.)8 MP
Overview
- Type
- Video collaboration bar
- OS
- Android 9
- Colour
- Grey
- Built-in speaker(s)
- Yes
- HDMI input ports quantity
- 1
- Megapixel (approx.)
- 8 MP
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- MeetingBar A30 + CTP18 Collaboration Touch Panel + VCH51 Sharing Box
- Part number
- 1206622
- EAN / UPC
- 6938818307032
- Also known as
- Yealink MeetingBar A30 + CTP18 Collaboration Touch Panel + VCH51 Sharing Box
Specifications
60 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Product type | Video collaboration bar |
| Number of cameras | 2 |
| Bluetooth | Yes |
| Product colour | Grey |
| Auto framing | Yes |
| Auto-tracking | Yes |
| Meeting features | Add participates, Content sharing, One-click join, Calendar, Hold/Resume, Whiteboard |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| Video codecs | H.264 High profile, H.264 SVC, H.264 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Audio system full duplex | Yes |
| Audio beamforming | Yes |
| Echo cancellation | Yes |
| RMS rated power | 10 W |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Line-in | Yes |
| Line-out | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Security algorithms | SRTP, TLS, PEAP, 256-bit AES, EAP-MD5, EAP-TTLS |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8 MP |
| Camera type | Dual camera |
| Second camera resolution | 8 MP |
| Optical zoom | 3.5x |
| Digital zoom | 3x |
| Combined zoom | 10x |
| Field of view (FOV) angle | 120° |
| Field of view (tele) | 90° |
| Camera privacy shutter | Yes |
Microphone
| Specification | Value |
|---|---|
| Microphone mute | Yes |
| Number of microphone arrays | 8 |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
Computer system
| Specification | Value |
|---|---|
| Operating system installed | Android 9 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| DC output voltage | 48 V |
| DC output current | 0.7 A |
| Power consumption (idle) | 13 W |
| Power consumption (max) | 16 W |
| Power consumption (typical) | 15 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 700 mm |
| Depth | 98 mm |
| Height | 121 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI, LAN (RJ-45) |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Packaging content | - CTP18 Collaboration Touch Panel - VCH51 Sharing Box |
