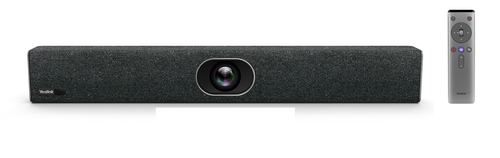

MeetingBar A20 + VCR20 Remote Control
Model MeetingBar A20 + VCR20 Remote ControlPart no. 1206612EAN 841885104991
51 specifications
- Storage64 GB
- TypeVideo collaboration bar
- OSAndroid 9
- ColourBlack
- Built-in speaker(s)Yes
- HDMI input ports quantity1
Overview
- Storage
- 64 GB
- Type
- Video collaboration bar
- OS
- Android 9
- Colour
- Black
- Built-in speaker(s)
- Yes
- HDMI input ports quantity
- 1
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- MeetingBar A20 + VCR20 Remote Control
- Part number
- 1206612
- EAN / UPC
- 841885104991, 5715063116838, 6938818306660
- Also known as
- Yealink MeetingBar A20 + VCR20 Remote Control
Specifications
51 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Product type | Video collaboration bar |
| Number of cameras | 1 |
| Bluetooth | Yes |
| Product colour | Black |
| Auto framing | Yes |
| Meeting features | Add participates, Calendar, Content sharing, Hold/Resume, One-click join, Whiteboard |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| Video codecs | H.264 High profile, H.264 SVC, H.264 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Audio system full duplex | Yes |
| Echo cancellation | Yes |
| Noise reduction | Yes |
| Speaker power | 5 W |
Memory
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Reset slot | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Security algorithms | 256-bit AES, EAP-MD5, EAP-TTLS, PEAP, SRTP, TLS |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 20 MP |
| Camera type | Single camera |
| Field of view (FOV) angle | 133° |
| Camera privacy shutter | Yes |
Microphone
| Specification | Value |
|---|---|
| Microphone mute | Yes |
| Number of microphone arrays | 8 |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
Computer system
| Specification | Value |
|---|---|
| Operating system installed | Android 9 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (idle) | 10 W |
| Power consumption (max) | 14 W |
| Power consumption (typical) | 10.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 68 mm |
| Height | 82 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI, LAN (RJ-45) |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Packaging content | VCR20 Remote Control |
