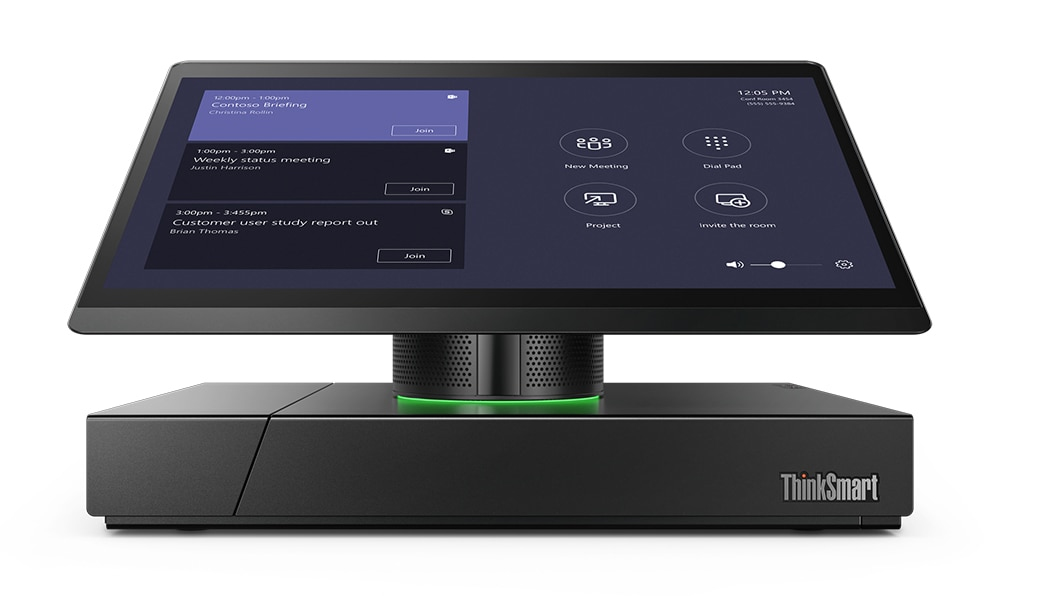

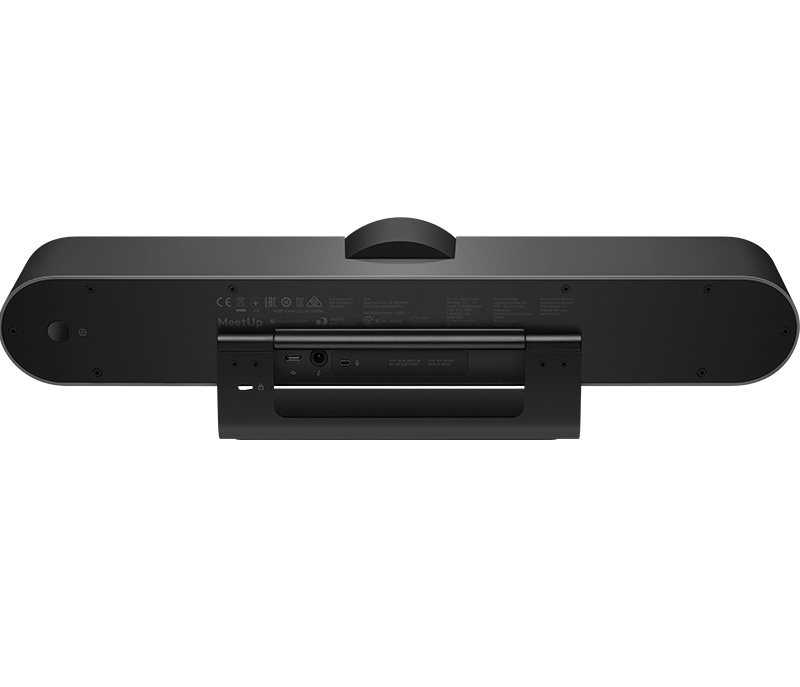

ThinkSmart Hub 500 for Microsoft Teams Rooms + MeetUp
Model ThinkSmart Hub 500 for Microsoft Teams Rooms + MeetUpPart no. SMARTHUB500-MTR-SML
34 specifications
- Display29.5 cm (11.6")
- Resolution1920 x 1080 pixels
- Storage128 GB
- TypeGroup video conferencing system
- ColourBlack
- HD type4K Ultra HD
Overview
- Display
- 29.5 cm (11.6")
- Resolution
- 1920 x 1080 pixels
- Storage
- 128 GB
- Type
- Group video conferencing system
- Colour
- Black
- HD type
- 4K Ultra HD
- Brand
- Lenovo
- Category
- Video Conferencing System
- Model
- ThinkSmart Hub 500 for Microsoft Teams Rooms + MeetUp
- Part number
- SMARTHUB500-MTR-SML
- Also known as
- Lenovo ThinkSmart Hub 500 for Microsoft Teams Rooms + MeetUp video conferencing system Ethernet LAN Group video conferencing system
Specifications
34 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| Product colour | Black |
| Pan range | -25 - 25° |
| Tilt angle range | -15 - 15° |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Supported video modes | 720p, 1080p, 2160p |
| Maximum frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Memory
| Specification | Value |
|---|---|
| Storage media type | SSD |
| Total storage capacity | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |

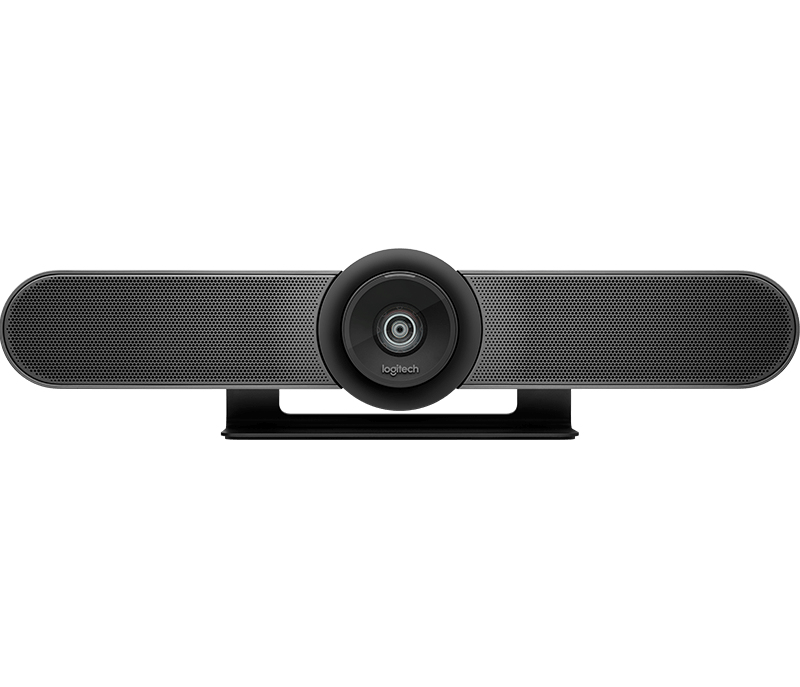

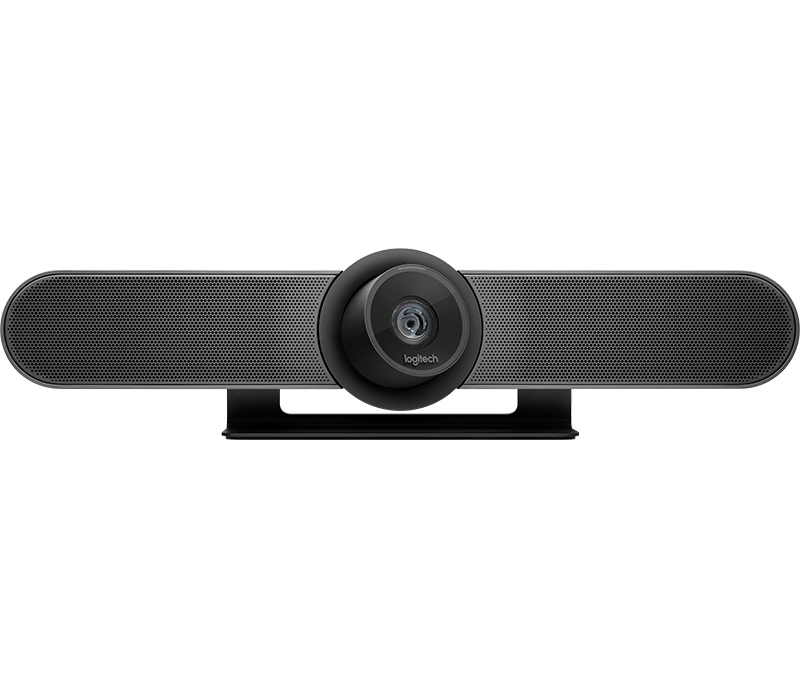

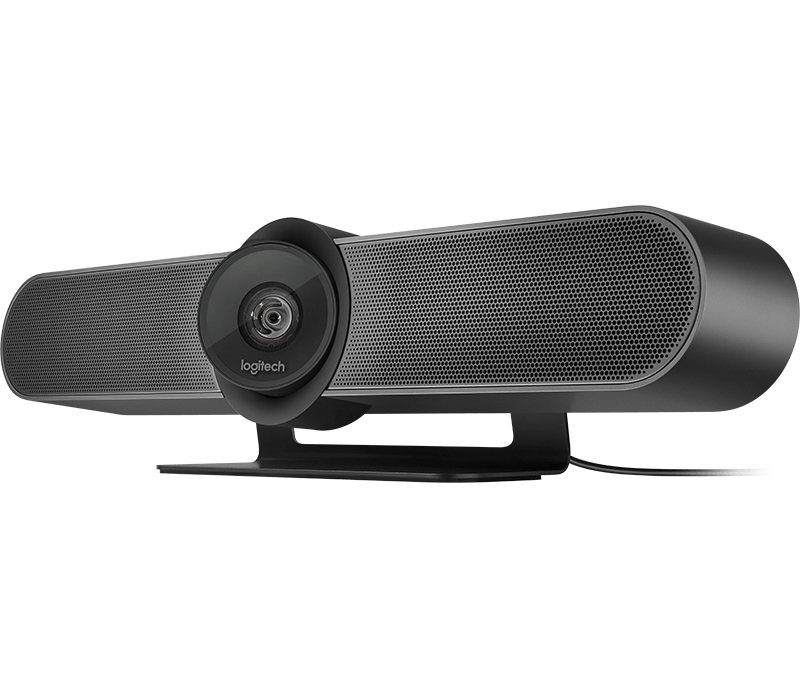

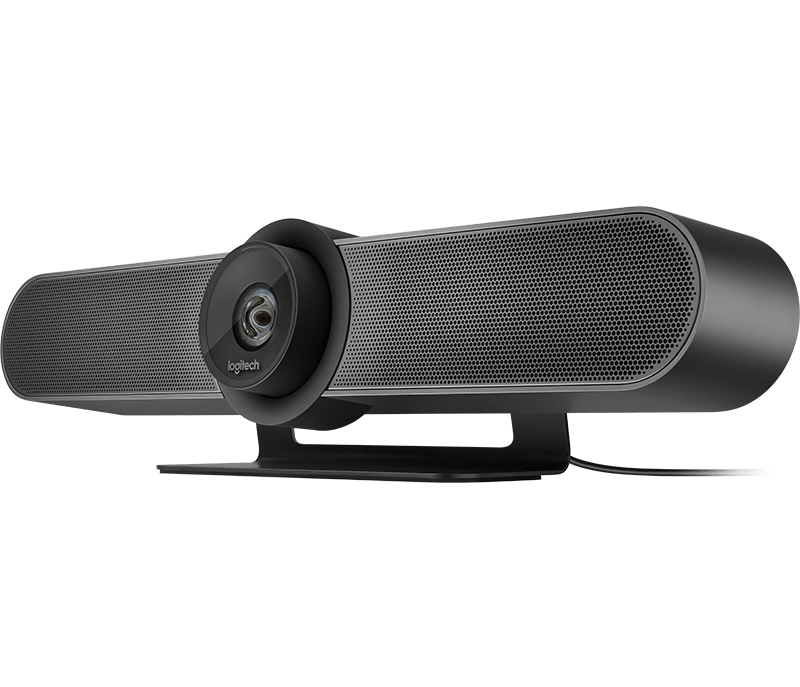

Camera
| Specification | Value |
|---|---|
| Field of view (FOV) angle | 120° |
| Horizontal field of view | 113° |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Display brightness | 300 cd/m² |
Features
| Specification | Value |
|---|---|
| Telepresence | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 278.9 x 193.25 x 178.45 mm |
| Interface module weight | 2.5 kg |
| Camera dimensions (WxDxH) | 400 x 85 x 104 mm |
| Camera weight | 1.04 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
