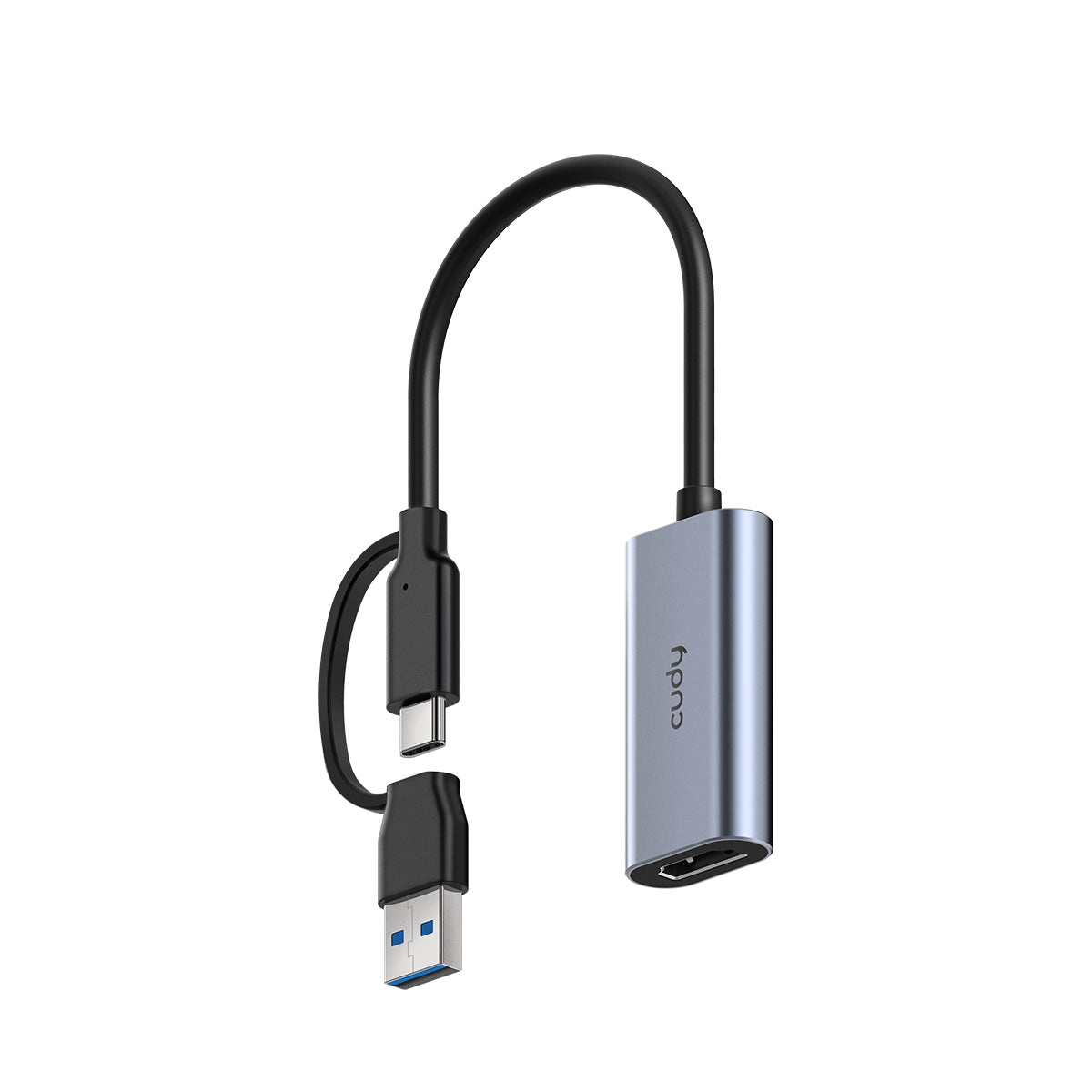

Cudy HDMI to USB Video Capture Card, VC300 1.0

Overview

Colour: Grey, Silver
Maximum refresh rate: 120 Hz
Image formats supported: MJPEG
USB port: No
Power supply type: USB
Windows operating systems supported: Yes

Brand: Cudy
Category: Video Capturing Device
Model: HDMI to USB Video Capture Card, VC300 1.0
Part number: VC300 1.0
EAN / UPC: 6971690795658
Also known as: Cudy HDMI to USB Video Capture Card, VC300 1.0 video capturing device USB 3.2 Gen 1 (3.1 Gen 1)

Specifications

33 specifications in 10 groups

Performance

Specification	Value
Product colour	Grey, Silver
Internal	No
Host interface	USB 3.2 Gen 1 (3.1 Gen 1)
HD type	Full HD
Video capture resolution (max)	1920 x 1080 pixels
Housing material	Aluminium, Acrylonitrile butadiene styrene (ABS)
Plug and Play	Yes

Video

Specification	Value
Supported resolutions	4K (3840 x 2160) @ 30Hz 2K (2560×1440) 60 Hz 1080P (1920×1080) 120 Hz
Maximum refresh rate	120 Hz

File formats

Specification	Value
Image formats supported	MJPEG

Ports & interfaces

Specification	Value
USB port	No
USB connector type	USB Type-C
USB version	3.2 Gen 1 (3.1 Gen 1)
HDMI ports quantity	1
HDMI in	1
HDMI version	1.4b

Power

Specification	Value
Power supply type	USB

Software

Specification	Value
Windows operating systems supported	Yes
Mac compatibility	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	50.4 mm
Depth	25.1 mm
Height	11.7 mm

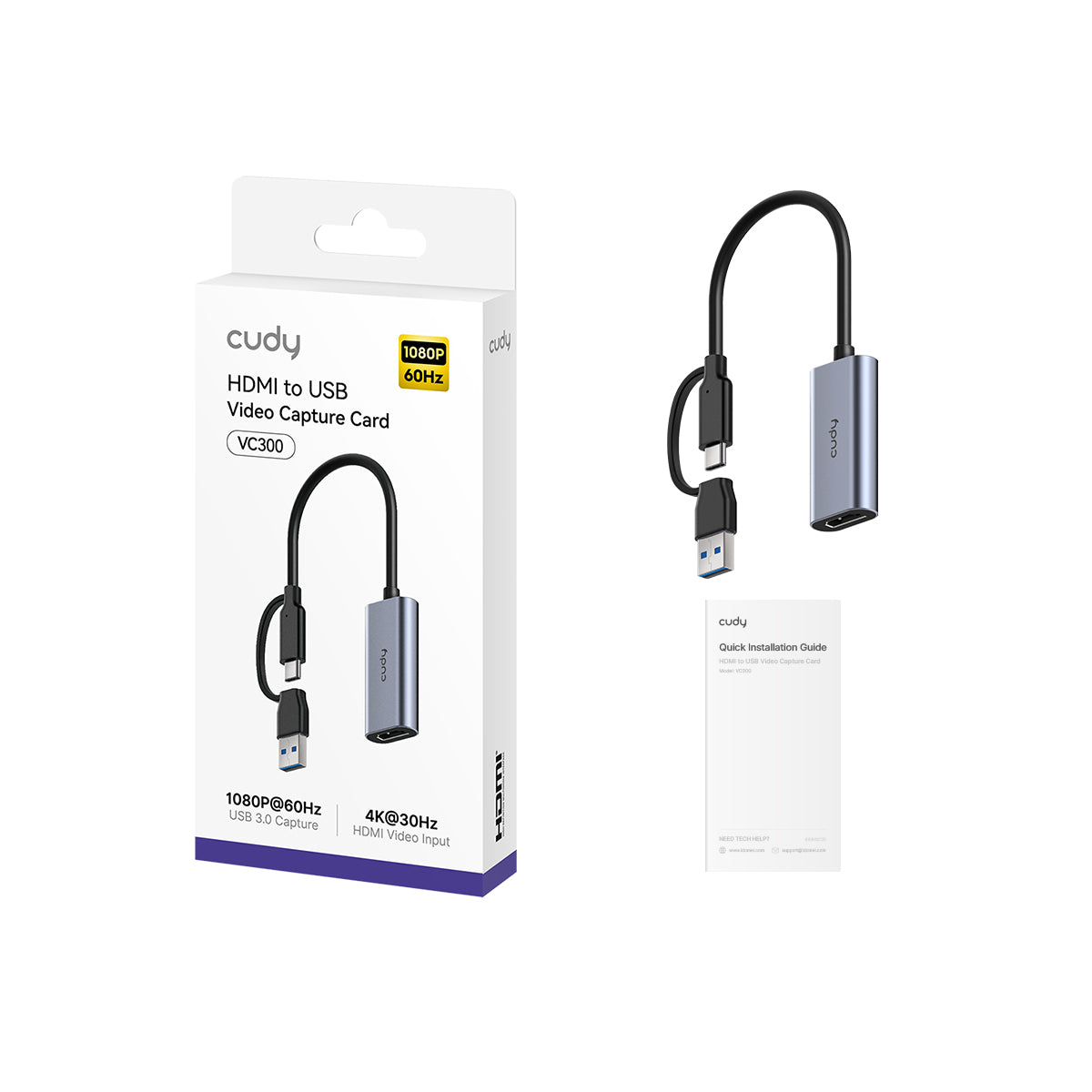

Packaging content

Specification	Value
Interface adapters included	USB Type-C female - USB Type-A male
Quick installation guide	Yes

Packaging data

Specification	Value
Package depth	20 mm
Package height	70 mm
Package width	130 mm
