JVA11-N 4K HDMI™ Capture Adapter
Model JVA11Part no. JVA11-NEAN 847626006029
66 specifications
- Weight55 g
- ColourBlack
- Analog signal format systemNot supported
- USB portNo
- Power supply typeUSB
- Windows operating systems supportedYes
Overview
- Weight
- 55 g
- Colour
- Black
- Analog signal format system
- Not supported
- USB port
- No
- Power supply type
- USB
- Windows operating systems supported
- Yes
- Brand
- j5create
- Category
- Video Capturing Device
- Model
- JVA11
- Part number
- JVA11-N
- EAN / UPC
- 847626006029, 4712795086607
- Also known as
- j5create JVA11-N 4K HDMI™ Capture Adapter
Specifications
66 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Internal | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Cable length | 0.19 m |
| Housing material | Aluminium |
| Plug and Play | Yes |
| Country of origin | Taiwan |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |

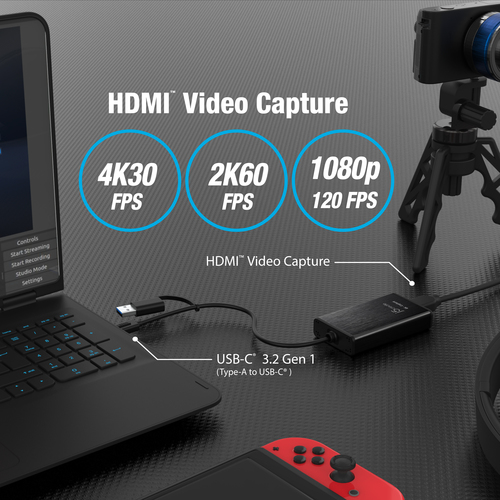

| Supported resolutions | 4K30 fps, 2K60 fps, 1080p120 fps |
| Maximum frame rate | 120 fps |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | No |
| USB connector type | USB Type-A, USB Type-C |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 0 |
| Headphone outputs | 0 |
| S-Video inputs quantity | 0 |
| S-Video outputs quantity | 0 |
| Composite video in | 0 |
| Composite video out | 0 |
| RJ-45 ports quantity | 0 |
| BNC ports quantity | 0 |
| AV input | No |
| AV output | No |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| Digital audio optical in | 0 |
| Digital audio optical out | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DC-in jack | No |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android |
System requirements
| Specification | Value |
|---|---|
| Minimum processor | Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended) Windows® 7 or later macOS® 10.12 or later Android™ 8.1 or later Chrome OS™ with UVC support CPU: Intel® Core™ i7 6700HQ & above GPU: NVIDA® GTX 960M & above RAM: 8 GB or higher |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 85% |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 41 mm |
| Depth | 14.1 mm |
| Height | 72 mm |
| Weight | 55 g |
Packaging content
| Specification | Value |
|---|---|
| Protective case | No |
| Remote control included | No |
| Batteries included | No |
| AC adapter included | No |
| Software included | No |
| Full-height bracket | No |
| Low-profile bracket | No |
| Screws included | No |
| Software CD | No |
| User guide | No |
| Quick installation guide | Yes |
| Manual | No |
| Quantity | 1 |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 96 g |
| Package depth | 95 mm |
| Package height | 25 mm |
| Package width | 145 mm |
| Package type | Box |
