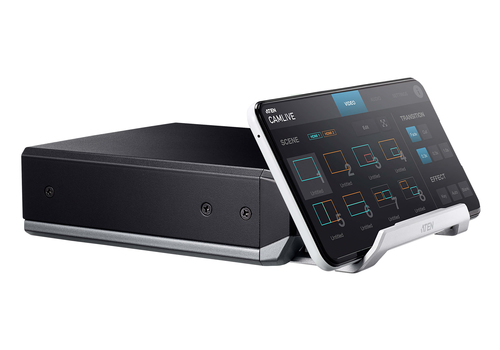

UC3022-AT-E video capturing device USB 3.2 Gen 1 (3.1 Gen 1)
Model UC3022-AT-E
38 specifications
- Weight1.14 kg
- ColourBlack, Silver
- Maximum frame rate60 fps
- USB portYes
- Windows operating systems supportedWindows 10
- Minimum RAM4000 MB
Overview
- Weight
- 1.14 kg
- Colour
- Black, Silver
- Maximum frame rate
- 60 fps
- USB port
- Yes
- Windows operating systems supported
- Windows 10
- Minimum RAM
- 4000 MB
- Brand
- ATEN
- Category
- Video Capturing Device
- Model
- UC3022-AT-E
- Part number
- UC3022-AT-E
- Also known as
- ATEN UC3022-AT-E video capturing device USB 3.2 Gen 1 (3.1 Gen 1)
Specifications
38 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Internal | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Housing material | Metal |
Video
| Specification | Value |
|---|---|
| Supported resolutions | 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 |
| Maximum frame rate | 60 fps |
| Supported video modes | 720p, 1080p, 2160p |

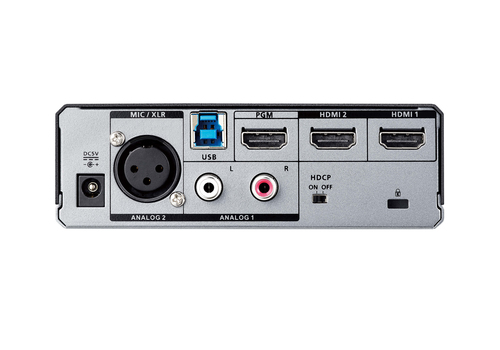

Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | USB Type-B |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| HDMI ports quantity | 3 |
| HDMI in | 2 |
| Number of HDMI outputs | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 0 |
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| DC-in jack | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Other operating systems supported | Android, iOS |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 4000 MB |
| Minimum processor | Intel i3 Dual Core 2.8Ghz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 151.8 mm |
| Depth | 130 mm |
| Height | 42.5 mm |
| Weight | 1.14 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.64 kg |
| Package depth | 265 mm |
| Package height | 220 mm |
| Package width | 95 mm |
