j5create JVA14-N 4K Game Capture Station
j5create

JVA14-N 4K Game Capture Station

Model JVA14Part no. JVA14-NEAN 4712795086461

48 specifications
  • Weight142.5 g
  • ColourBlack
  • Analog signal format systemNot supported
  • USB portYes
  • Power supply typeUSB
  • Minimum RAM8000 MB
See all specifications

Overview

Weight
142.5 g
Colour
Black
Analog signal format system
Not supported
USB port
Yes
Power supply type
USB
Minimum RAM
8000 MB
Brand
j5create
Model
JVA14
Part number
JVA14-N
EAN / UPC
4712795086461
Also known as
j5create JVA14-N 4K Game Capture Station

Specifications

48 specifications in 11 groups

Performance

Product colourBlack
InternalNo
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max)3840 x 2160 pixels
Memory card slot(s)No
Cable length1 m
Capturing fromDigital camera, Game console, PC
High Dynamic Range (HDR) supportedYes
Housing materialAluminium
LED indicatorsPower, USB
Plug and PlayYes
Country of originTaiwan
Compatible productsAvailable USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)

Video

Analog signal format systemNot supported

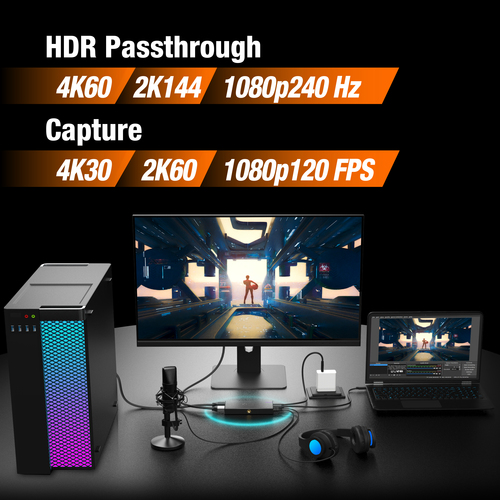

Supported resolutionsMaximum Capture Refresh Rate: 4K30 FPS, 2K60 FPS, 1080p120 FPS Maximum Passthrough Refresh Rate: 4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDR Maximum Capture Capability: USB™ 3.0: 3840 x 2160@ 30 USB™ 2.0:1280 x720 @ 30
Supported video modes1080p, 1440p, 2160p

Ports & interfaces

USB portYes
USB connector typeUSB Type-C
USB version3.2 Gen 1 (3.1 Gen 1)
USB ports quantity1
HDMI ports quantity2
HDMI in1
Number of HDMI outputs1
Headphone outputs1

Power

Power supply typeUSB

Software

Windows operating systems supportedYes
Mac compatibilityYes
Mac operating systems supportedYes
Other operating systems supportedAndroid

System requirements

Minimum RAM8000 MB
Minimum processorCPU: Intel®Core™ i7 6700HQ& above. GPU: NVIDA®GTX960M & above

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 65 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 85%

Technical details

Warranty period2 year(s)

Weight & dimensions

Width134.6 mm
Depth18.4 mm
Height63.7 mm
Weight142.5 g

Packaging content

Cables includedHDMI, USB Type-C to USB Type-A, USB Type-C to USB Type-C
Quick installation guideYes
Quantity1

Packaging data

Package weight371.5 g
Package depth75 mm
Package height70 mm
Package width155 mm
Package typeBox
