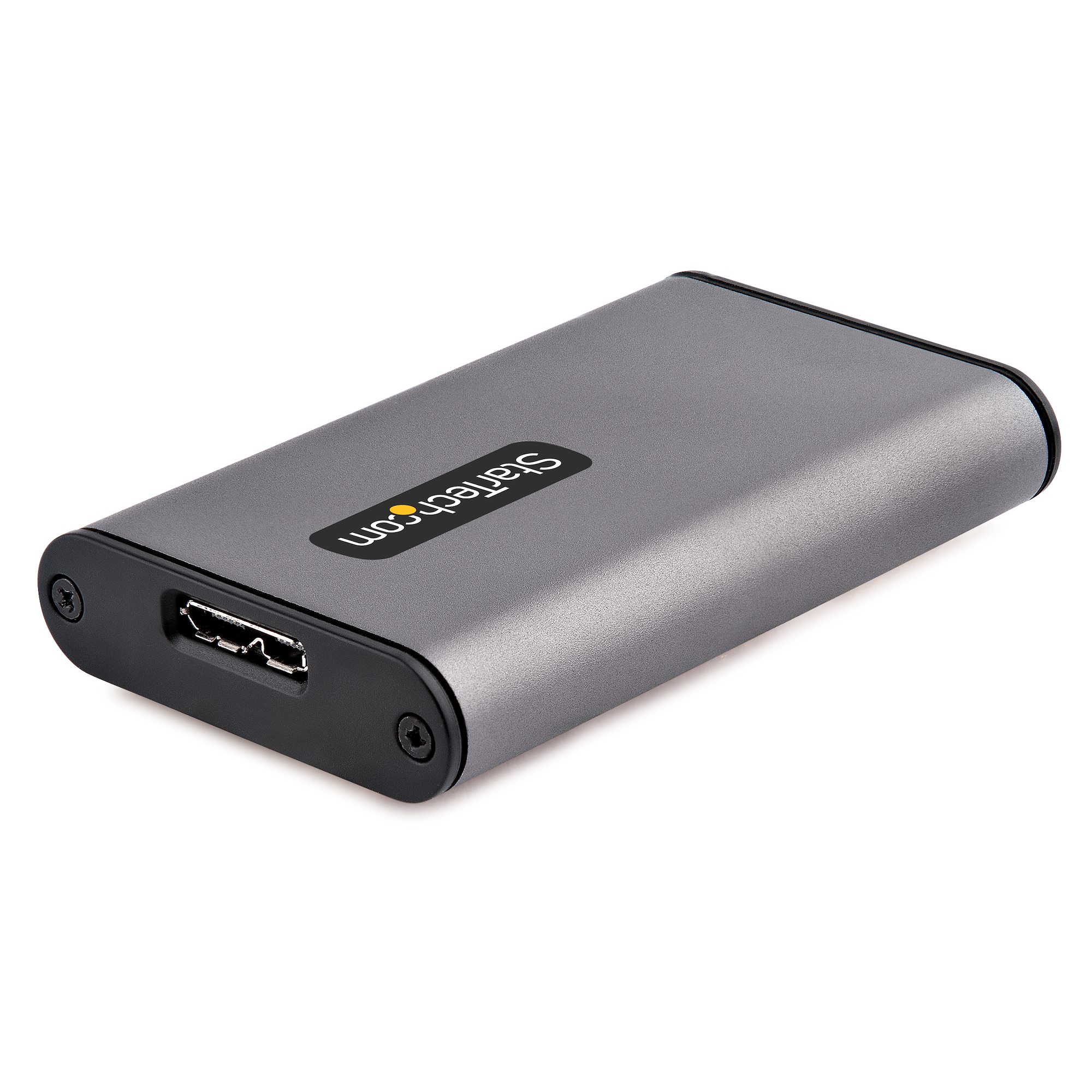

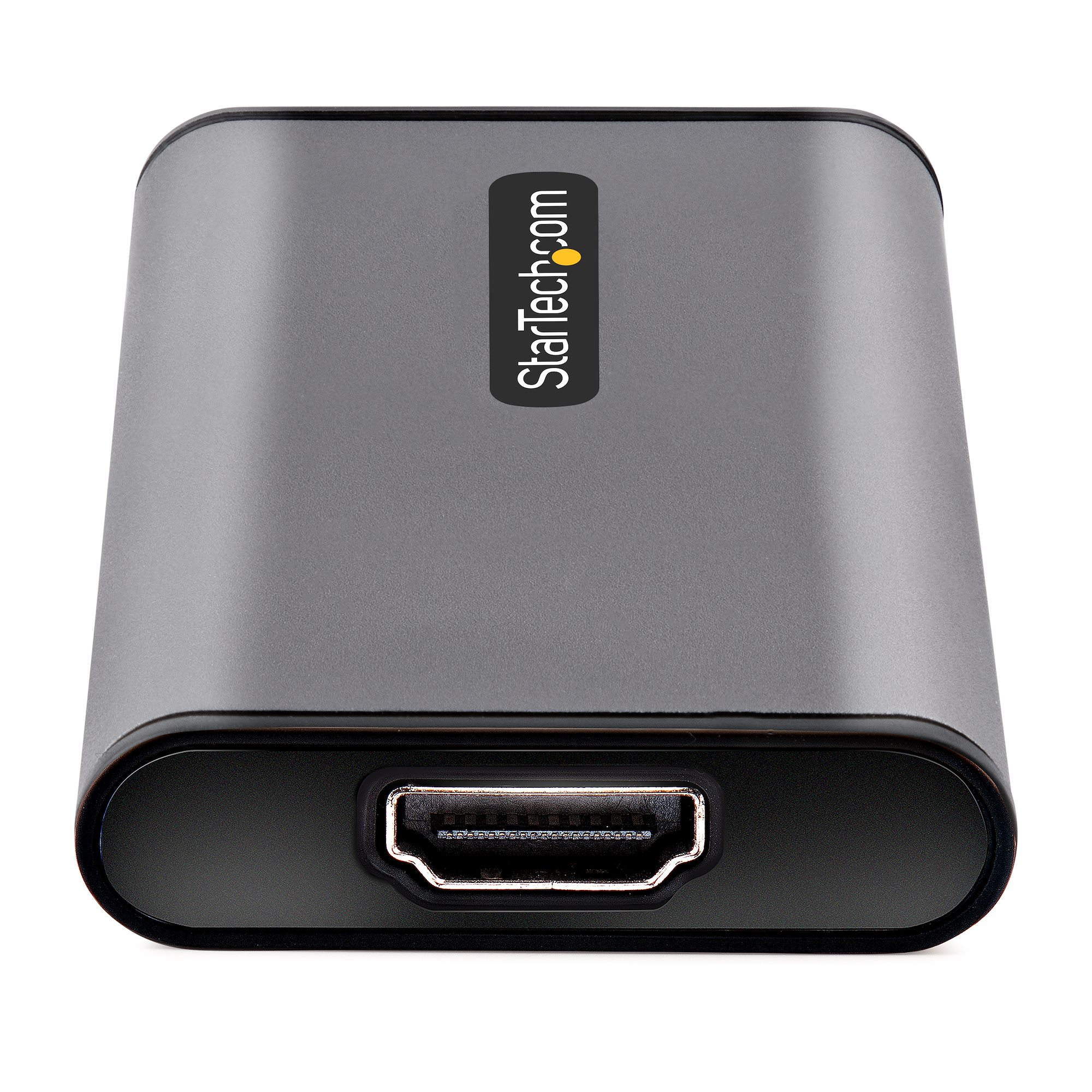

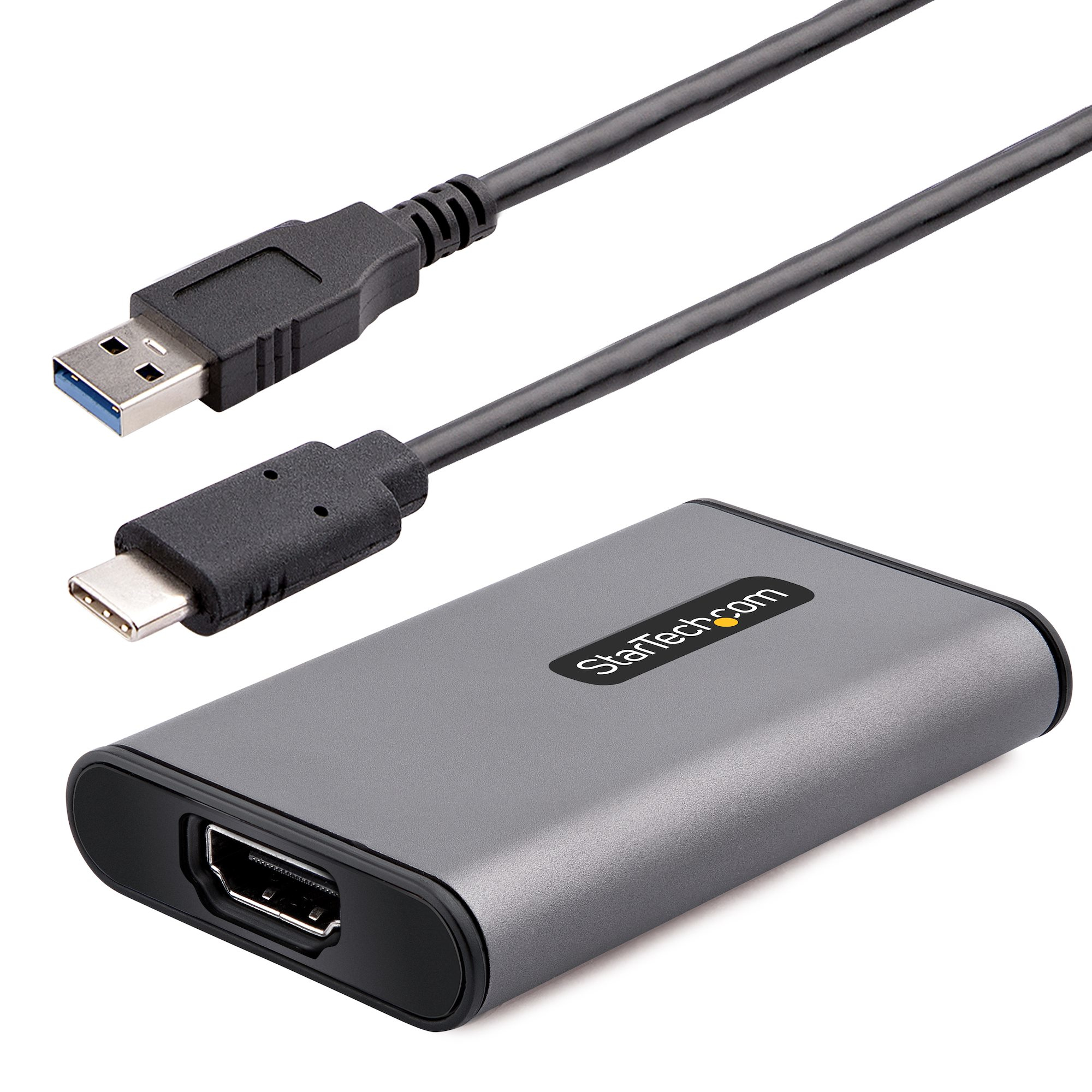

USB 3.0 HDMI Video Capture Device, 4K
30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-
Model 4K30-HDMI-CAPTUREEAN 065030895682
50 specifications
- Weight41 g
- ColourBlack, Grey
- Maximum frame rate60 fps
- Supported audio channels2
- Audio formats supportedPCM
- USB portYes
Overview
- Weight
- 41 g
- Colour
- Black, Grey
- Maximum frame rate
- 60 fps
- Supported audio channels
- 2
- Audio formats supported
- PCM
- USB port
- Yes
- Brand
- StarTech.com
- Category
- Video Capturing Device
- Model
- 4K30-HDMI-CAPTURE
- Part number
- 4K30-HDMI-CAPTURE
- EAN / UPC
- 065030895682
- Also known as
- StarTech.com USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-
Specifications
50 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Internal | No |
| Host interface | HDMI |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Chipset | ITE IT66021 / ITE IT9323 |
| Cable length | 0.4 m |
| Capturing from | Digital camera, PC |
| Housing material | Aluminium |
Video
| Specification | Value |
|---|---|
| Maximum frame rate | 60 fps |
| HDCP | Yes |
| HDCP version | 1.4 |
| Supported video modes | 1080p, 1440p, 2160p |
Audio
| Specification | Value |
|---|---|
| Supported audio channels | 2 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | PCM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | Micro-USB B |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| HDMI in | 1 |
| Audio (L/R) in | 0 |
| Headphone outputs | 0 |
| Composite video in | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
Power
| Specification | Value |
|---|---|
| Power supply type | USB |
| AC input voltage | 5 V |
| Input voltage | 5 V |
| Input current | 0.3 A |
| Power consumption | 1.5 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Ubuntu 20.04 LTS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44 mm |
| Depth | 73 mm |
| Height | 12 mm |
| Weight | 41 g |
Other features
| Specification | Value |
|---|---|
| Master (outer) case height | 260 mm |
| Master (outer) case width | 490 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-A to Micro USB-B, USB Type-C to Micro-USB Type-B |
| Quick installation guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 181 g |
| Package depth | 155 mm |
| Package height | 37 mm |
| Package width | 107 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case length | 390 mm |
| Products per master (outer) case | 60 pc(s) |
