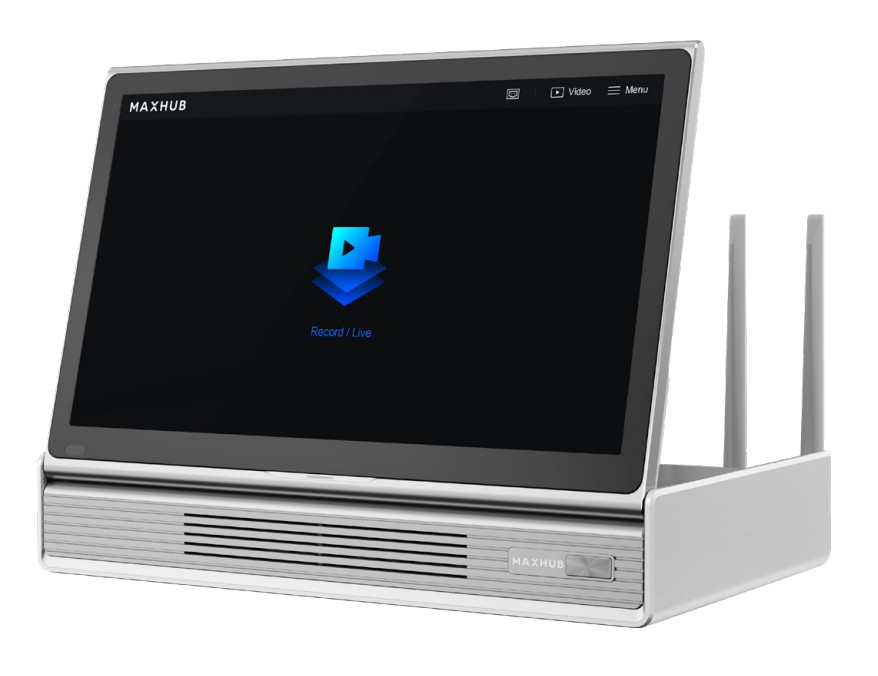

Portable Capture Host CSP50
Model CSP50EAN 6927433610429
45 specifications
- Display39.6 cm (15.6")
- Resolution1920 x 1080 pixels
- Weight6.5 kg
- ColourGrey
- Supported resolutions4K@30fps, 1080p, 720p, VGA, QVGA
- Built-in displayYes
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Weight
- 6.5 kg
- Colour
- Grey
- Supported resolutions
- 4K@30fps, 1080p, 720p, VGA, QVGA
- Built-in display
- Yes
- Brand
- MAXHUB
- Category
- Video Capturing Device
- Model
- CSP50
- Part number
- CSP50
- EAN / UPC
- 6927433610429
- Also known as
- MAXHUB Portable Capture Host CSP50
Specifications
45 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Internal | No |
| HD type | 4K Ultra HD |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Ethernet LAN | Yes |
Video
| Specification | Value |
|---|---|
| Supported resolutions | 4K@30fps, 1080p, 720p, VGA, QVGA |
| Maximum frame rate | 60 fps |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LED |
| Display diagonal | 39.6 cm (15.6") |
| Backlight | Yes |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | USB Type-C, USB Type-A |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 3 |
| HDMI in | 2 |
| Number of HDMI outputs | 3 |
| HDMI version | 1.4 |
| RJ-45 ports quantity | 5 |
| Mic/Line input ports quantity | 2 |
| Mic/Line output ports quantity | 2 |
| Microphone in | Yes |
| RS-422 ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Input voltage | 100 - 240 V |
| Input current | 2 A |
| Output current | 4 A |
| Output voltage | 24 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 255 mm |
| Depth | 385.2 mm |
| Height | 290.8 mm |
| Weight | 6.5 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.3 kg |
| Package depth | 358 mm |
| Package height | 163 mm |
| Package width | 487 mm |
