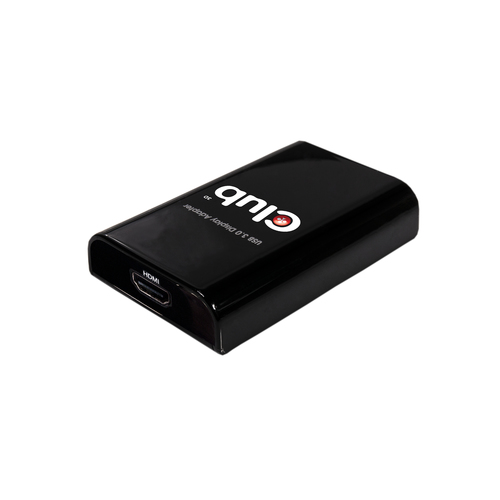

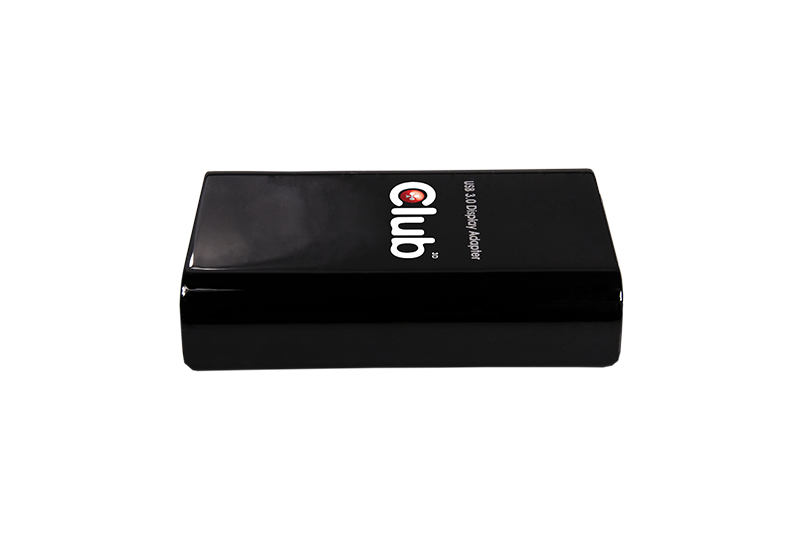

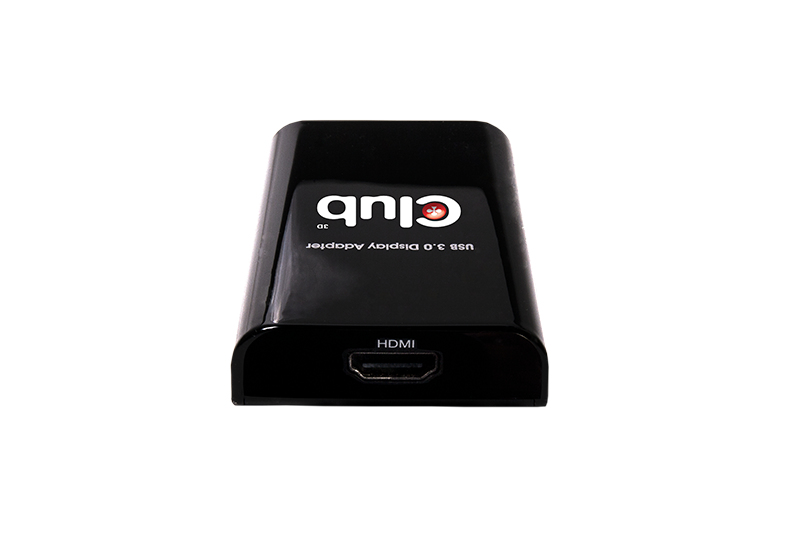

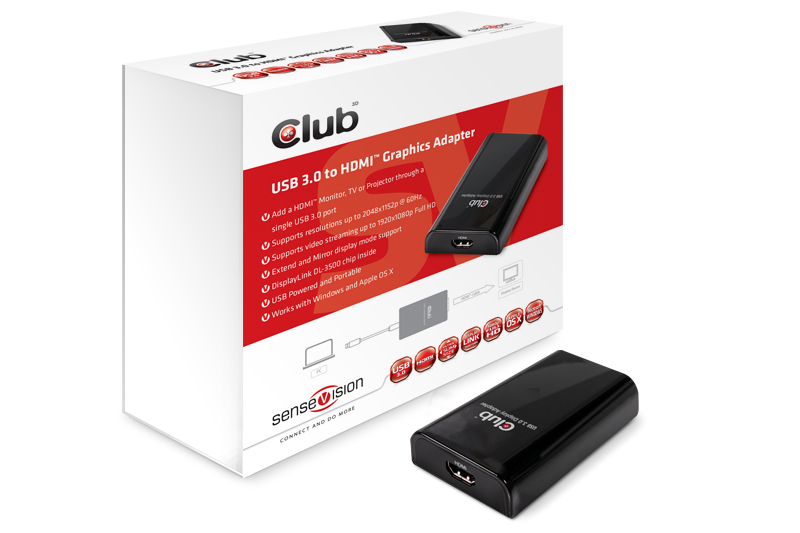

SenseVision USB3.0 to HDMI Graphics Adapter
Model SenseVision USB3.0 to HDMI Graphics AdapterPart no. CSV-2300HEAN 854365005879
32 specifications
- Weight60 g
- ColourBlack
- USB version3.2 Gen 1 (3.1 Gen 1)
- Width84 mm
- Compliance certificatesRoHS
Overview
- Weight
- 60 g
- Colour
- Black
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Width
- 84 mm
- Compliance certificates
- RoHS
- Brand
- CLUB3D
- Category
- USB Graphics Adapter
- Model
- SenseVision USB3.0 to HDMI Graphics Adapter
- Part number
- CSV-2300H
- EAN / UPC
- 854365005879, 8717249401049
- Also known as
- CLUB3D SenseVision USB3.0 to HDMI Graphics Adapter
Specifications
32 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| HDMI version | 1.4a |
| HDCP | Yes |
| Maximum resolution | 2048 x 1152 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (HDMI) | 2048 x 1152 pixels |
| Output colour depth | 16/32 bit |
| Mirror display mode | Yes |
| Extended display mode | Yes |
| Audio output channels | 5.1 channels |
| Chipset | DL 3500 |
| Certification | CE, RoHS, FCC |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Integrated USB cable | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 P |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 84 mm |
| Depth | 55 mm |
| Height | 18 mm |
| Weight | 60 g |
| USB cable length | 0.06 m |
Packaging data
| Specification | Value |
|---|---|
| Package type | Blister |
| Package width | 210 mm |
| Package depth | 26 mm |
| Package height | 160 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Drivers included | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
