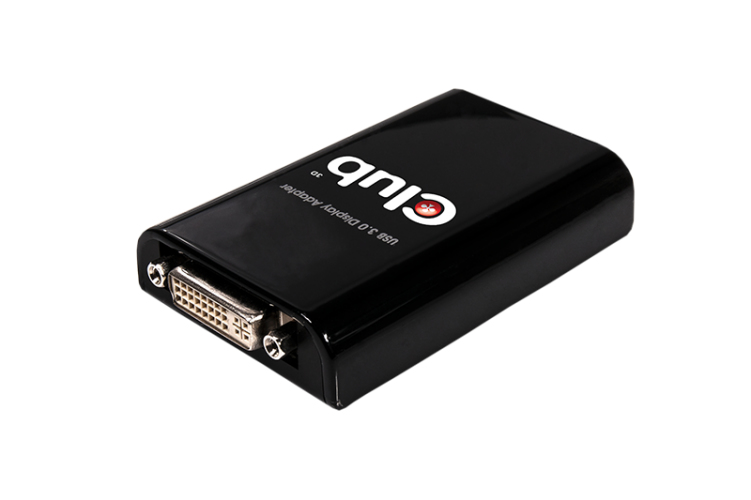

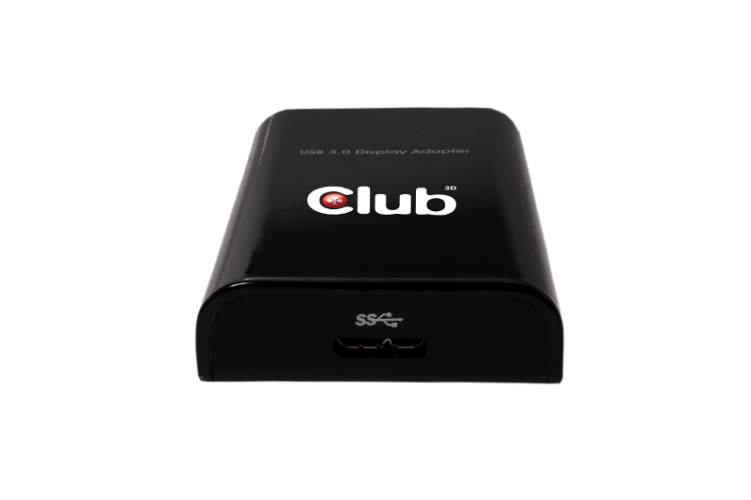

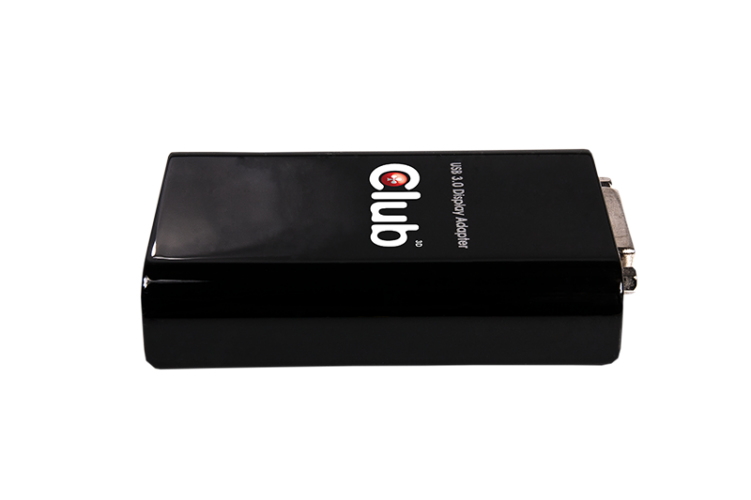

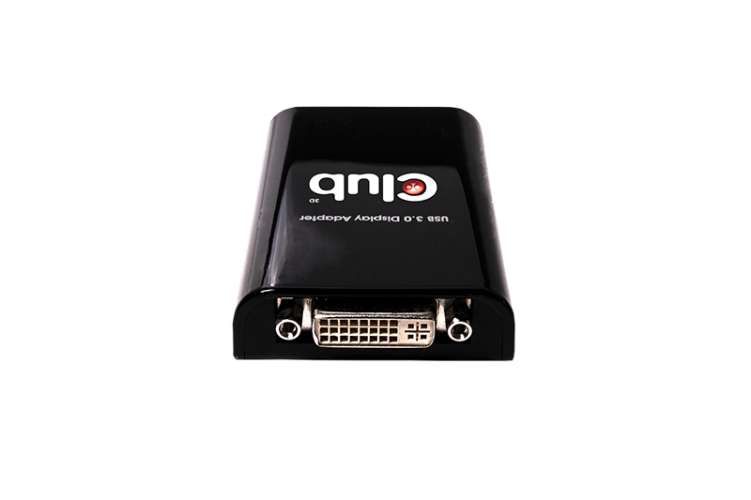

SenseVision USB3.0 to DVI-I Graphics Adapter
Model SenseVision USB3.0 to DVI-I Graphics AdapterPart no. CSV-2300DEAN 854365005862
36 specifications
- Weight60 g
- ColourBlack
- USB version3.2 Gen 1 (3.1 Gen 1)
- Width84.5 mm
- Operating temperature (T-T)10 - 40 °C
- Compliance certificatesRoHS
Overview
- Weight
- 60 g
- Colour
- Black
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Width
- 84.5 mm
- Operating temperature (T-T)
- 10 - 40 °C
- Compliance certificates
- RoHS
- Brand
- CLUB3D
- Category
- USB Graphics Adapter
- Model
- SenseVision USB3.0 to DVI-I Graphics Adapter
- Part number
- CSV-2300D
- EAN / UPC
- 854365005862, 8717249401032
- Also known as
- CLUB3D SenseVision USB3.0 to DVI-I Graphics Adapter
Specifications
36 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | Micro-USB B |
| USB connector gender | Female |
| DVI output | Yes |
| HDMI output | No |
| DisplayPort output | No |
| Number of displays supported | 1 |
| DVI connector type | DVI-I |
| Maximum resolution | 2048 x 1152 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (DVI) | 2048 x 1152 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Mirror display mode | Yes |
| Extended display mode | Yes |
| DirectX version | 10 |
| Certification | FCC, CE |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Integrated USB cable | No |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 P |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 84.5 mm |
| Depth | 55.5 mm |
| Height | 18 mm |
| Weight | 60 g |
| USB cable length | 0.6 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Packaging data
| Specification | Value |
|---|---|

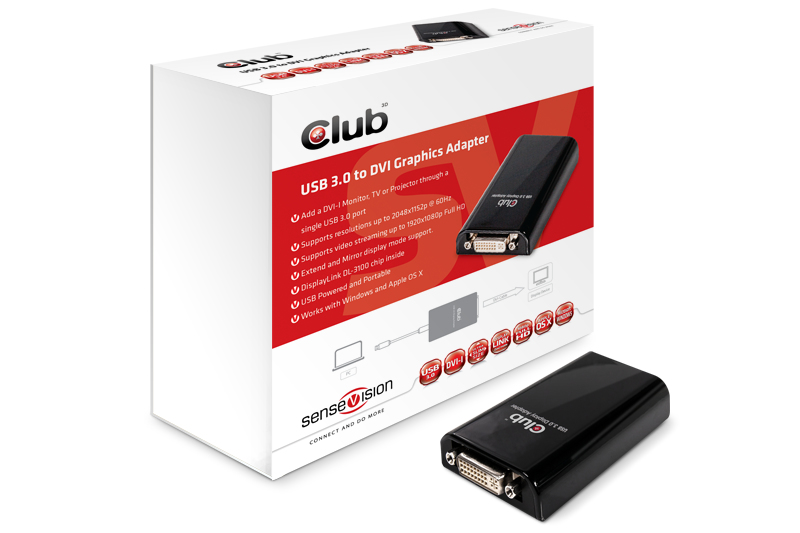

| Package type | Blister |
| Package width | 210 mm |
| Package depth | 26 mm |
| Package height | 160 mm |
Packaging content
| Specification | Value |
|---|---|

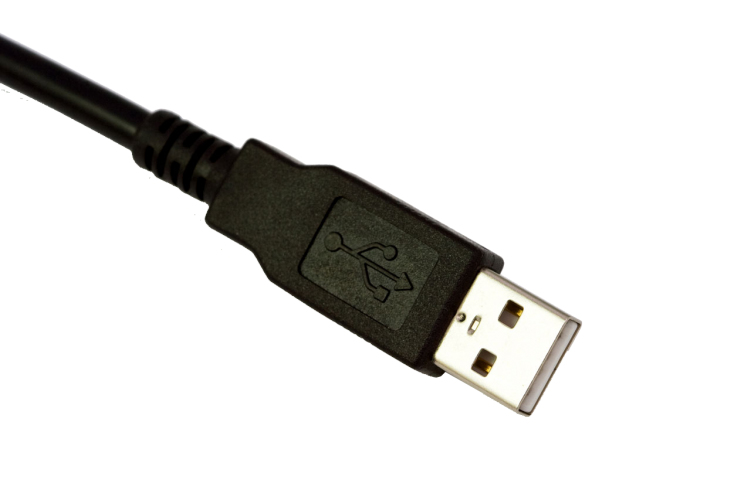

| Cables included | USB |
| Drivers included | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
