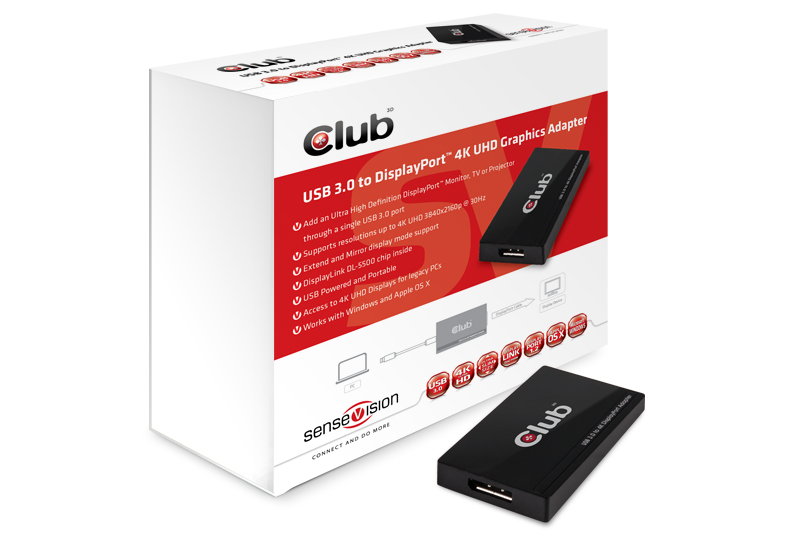

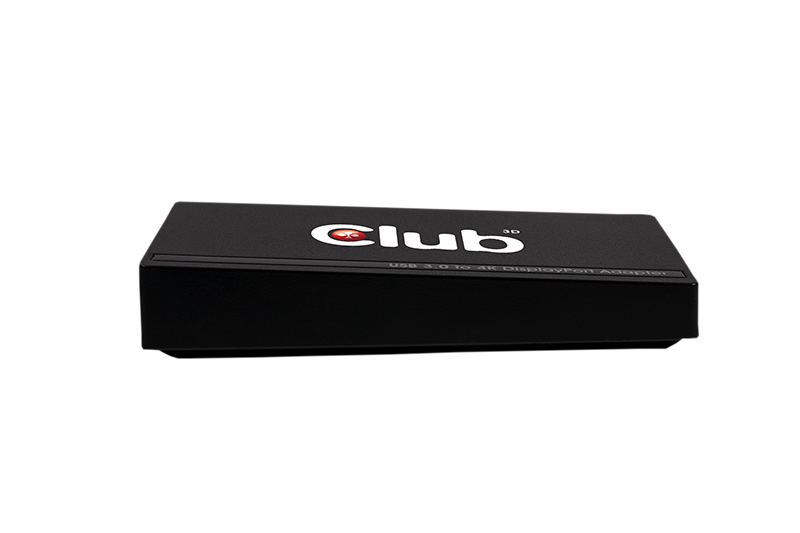

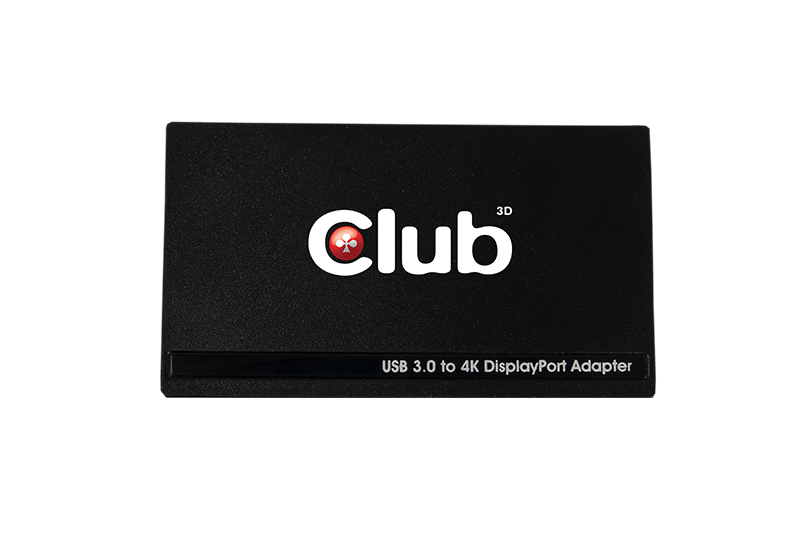

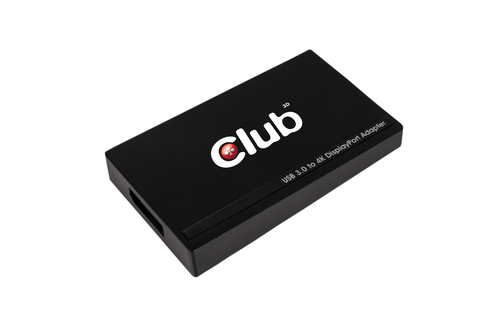

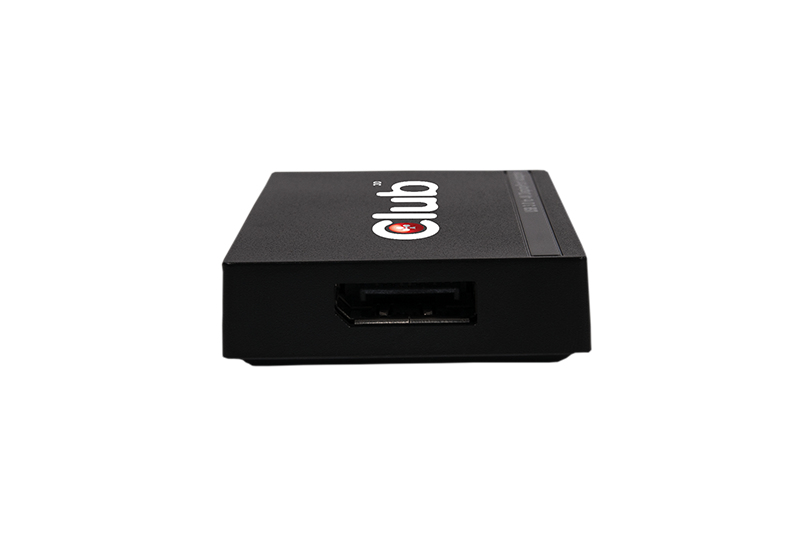

SenseVision USB3.0 to Displayport 4K Graphics Adapter
Model SenseVision USB3.0 to Displayport 4K Graphics AdapterPart no. CSV-2302EAN 854365005893
30 specifications
- Weight50 g
- ColourBlack
- USB version3.2 Gen 1 (3.1 Gen 1)
- Width75 mm
- Compliance certificatesRoHS
Overview
- Weight
- 50 g
- Colour
- Black
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Width
- 75 mm
- Compliance certificates
- RoHS
- Brand
- CLUB3D
- Category
- USB Graphics Adapter
- Model
- SenseVision USB3.0 to Displayport 4K Graphics Adapter
- Part number
- CSV-2302
- EAN / UPC
- 854365005893, 8717249400998
- Also known as
- CLUB3D SenseVision USB3.0 to Displayport 4K Graphics Adapter
Specifications
30 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| HDCP | Yes |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Output colour depth | 16/32 bit |
| Mirror display mode | Yes |
| Extended display mode | Yes |
| Chipset | DL 5500 |
| Certification | CE, RoHS, FCC |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Integrated USB cable | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 P |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 44 mm |
| Height | 14 mm |
| Weight | 50 g |
| USB cable length | 0.06 m |
Packaging data
| Specification | Value |
|---|---|
| Package type | Blister |
| Package width | 210 mm |
| Package depth | 160 mm |
| Package height | 26 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Drivers included | Yes |
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
