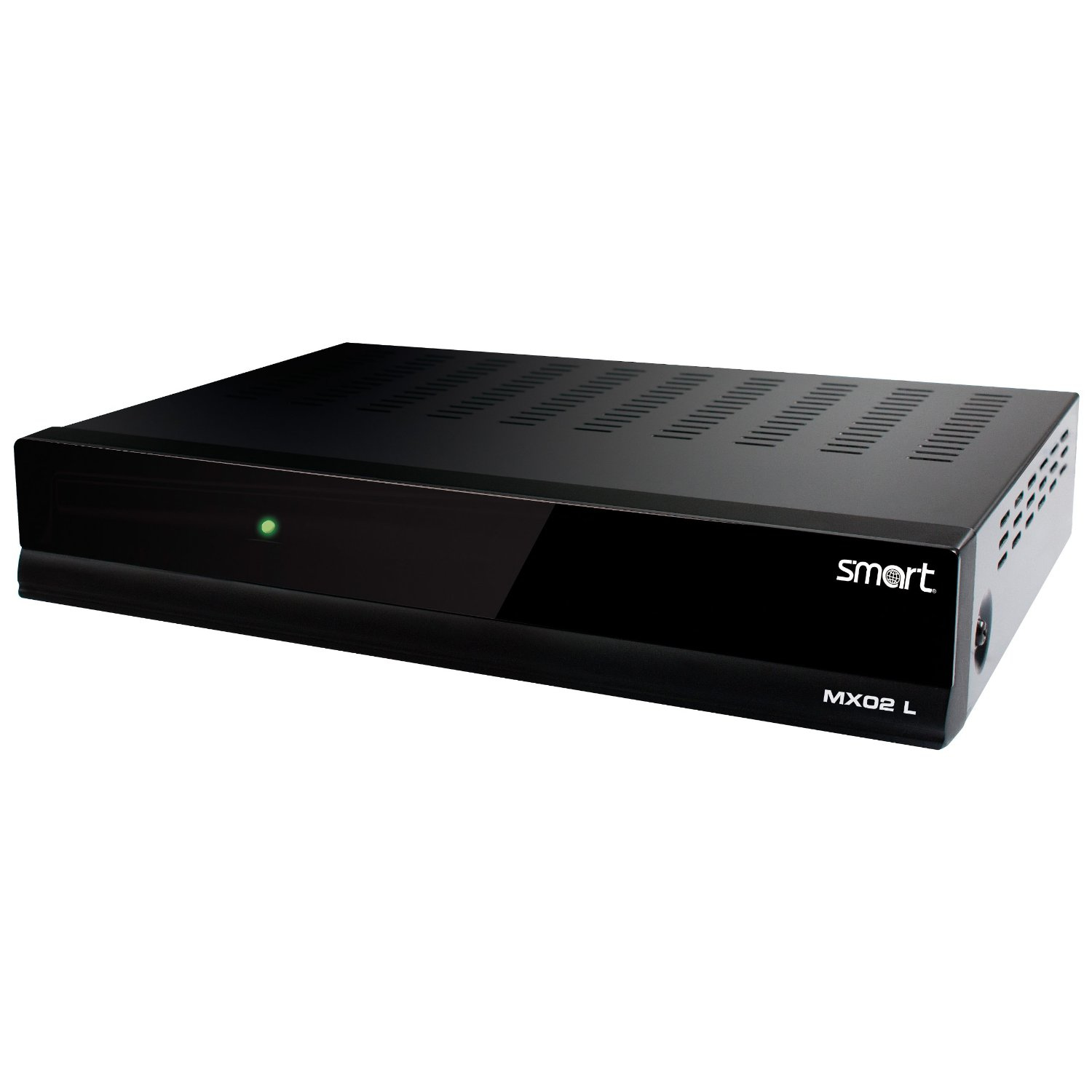

MX02 L
Model MX02 LPart no. 21-01-01-0053EAN 4022338370316
41 specifications
- Weight500 g
- ColourBlack
- Signal sourceSatellite
- Ethernet LANNo
- USB 2.0 ports quantity0
- AC input voltage175-250 V
Overview
- Weight
- 500 g
- Colour
- Black
- Signal source
- Satellite
- Ethernet LAN
- No
- USB 2.0 ports quantity
- 0
- AC input voltage
- 175-250 V
- Brand
- SMART Technologies
- Category
- TV Set-Top Box
- Model
- MX02 L
- Part number
- 21-01-01-0053
- EAN / UPC
- 4022338370316
- Also known as
- SMART Technologies MX02 L Satellite Black
Specifications
41 specifications in 9 groups
Video
| Specification | Value |
|---|---|
| Signal source | Satellite |
| Digital signal format system | DVB-S |
| Supported video modes | 576i |
| 3D | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |

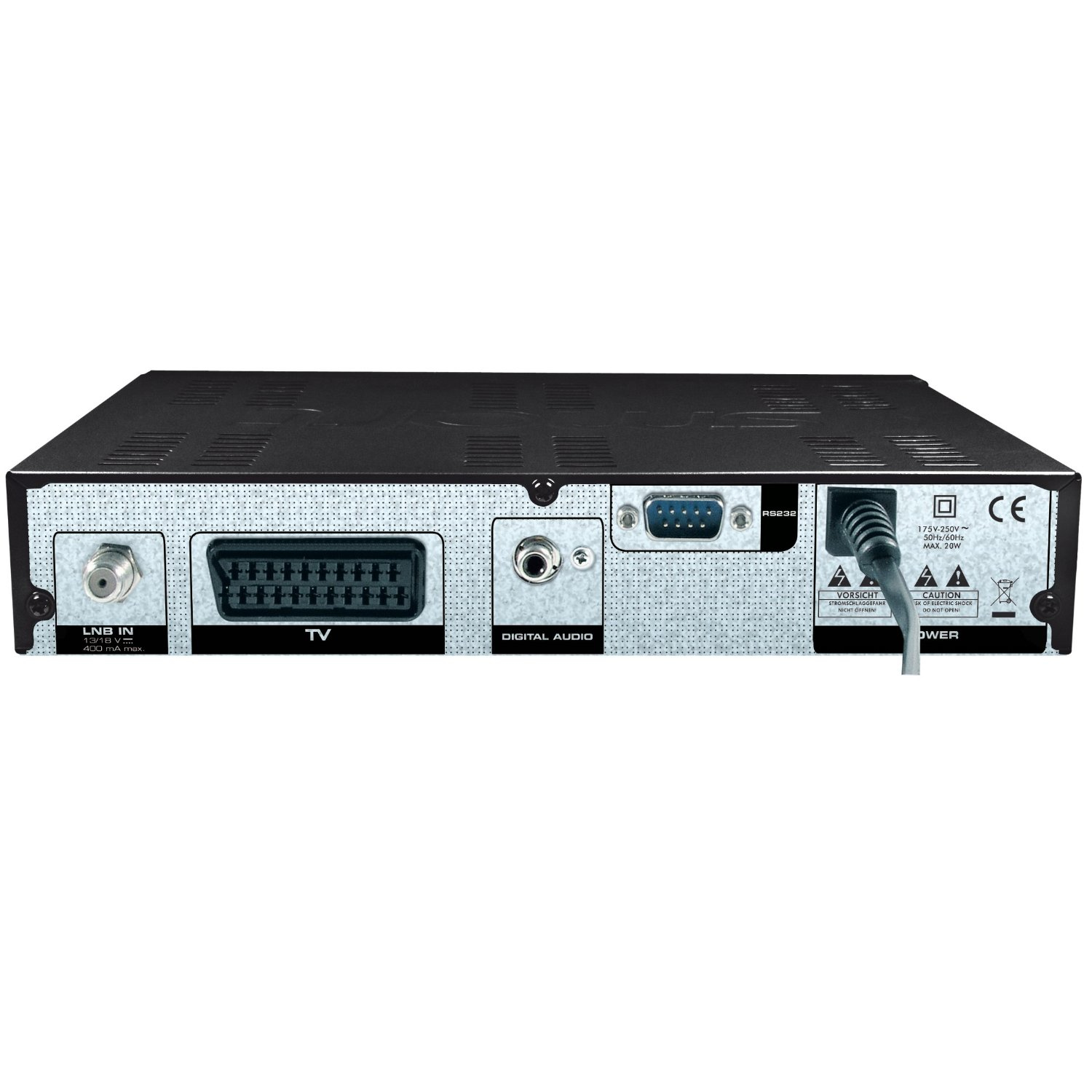

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| S-Video outputs quantity | 0 |
| Composite video out | 0 |
| SCART ports quantity | 1 |
| Component video (YPbPr/YCbCr) out | 0 |
| Digital audio coaxial out | 1 |
| RF ports quantity | 1 |
| RS-232 interface | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Tuner type | Digital |
| Number of tuners | 1 tuner(s) |
| Channels quantity | 4000 channels |
| Electronic Programme Guide (EPG) | Yes |
| Parental control | Yes |
| Teletext function | Yes |
| Digital Satellite Equipment Control (DiSEqC) | 1.2 |
| Events timer/reminder | Yes |
| Favorite list TV programs | 32 |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 175-250 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 135 mm |
| Height | 40 mm |
| Weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| HDMI | No |
