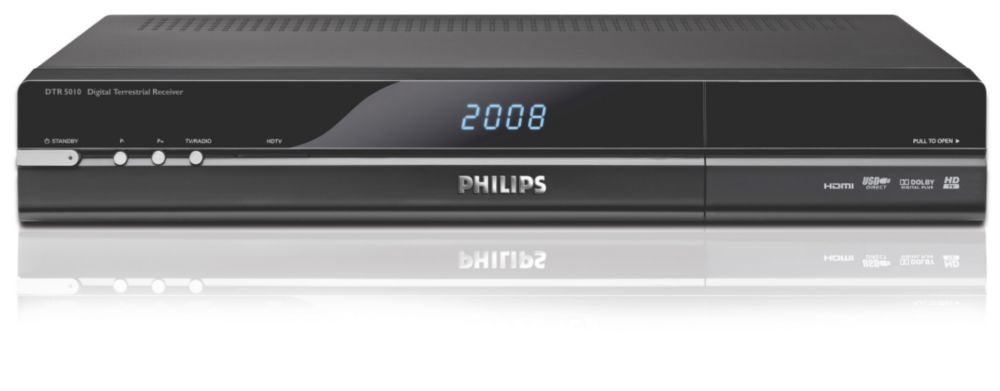

DTR5010 Digital Terrestrial Receiver
Model DTR5010/12EAN 8712581433826
53 specifications
- Weight2 kg
- ColourBlack
- Signal sourceTerrestrial
- Video formats supportedMPEG2, MPEG4
- Ethernet LANNo
- USB 2.0 ports quantity1
Overview
- Weight
- 2 kg
- Colour
- Black
- Signal source
- Terrestrial
- Video formats supported
- MPEG2, MPEG4
- Ethernet LAN
- No
- USB 2.0 ports quantity
- 1
- Brand
- Philips
- Category
- TV Set-Top Box
- Model
- DTR5010/12
- Part number
- DTR5010/12
- EAN / UPC
- 8712581433826
- Also known as
- Philips DTR5010 Digital Terrestrial Receiver
Specifications
53 specifications in 13 groups
Video
| Specification | Value |
|---|---|
| Signal source | Terrestrial |
| HD type | Full HD |
| Personal Video Recorder (PVR) included | No |
| Digital signal format system | DVB |
| Video resolutions | 1920 x 1080 pixels |
File formats
| Specification | Value |
|---|---|
| Video formats supported | MPEG2, MPEG4 |
| Audio formats supported | MP3 |
| Image formats supported | JPG |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| S-Video outputs quantity | 0 |
| Composite video out | 2 |
| SCART ports quantity | 3 |
| Component video (YPbPr/YCbCr) out | 0 |
| Digital audio coaxial out | 1 |
| Digital audio optical out | 1 |
| Audio (L/R) out | 3 |
| RF ports quantity | 2 |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of tuners | 1 tuner(s) |
| Frequency range | 47 - 862 MHz |
| Electronic Programme Guide (EPG) | Yes |
| Audio output channels | 5.1 channels |
| Audio decoders | Dolby Digital 5.1 |
| HDCP | Yes |
| Child lock | Yes |
| Parental control | Yes |
| On Screen Display (OSD) | Yes |
| Signal strength indication | Yes |
Display
| Specification | Value |
|---|---|
| Display digits | 4 digits |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 360 mm |
| Depth | 220 mm |
| Height | 55 mm |
| Weight | 2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 480 mm |
| Package depth | 290 mm |
| Package height | 120 mm |
| Package dimensions (WxDxH) | 480 x 290 x 120 mm |
| Package weight | 3.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | HDMI |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 360 x 220 x 55 mm |
Technical details
| Specification | Value |
|---|---|
| Input frequency range | 174 - 862 MHz |
| Larger master carton dimensions (WxDxH) | 480 x 290 x 120 |
