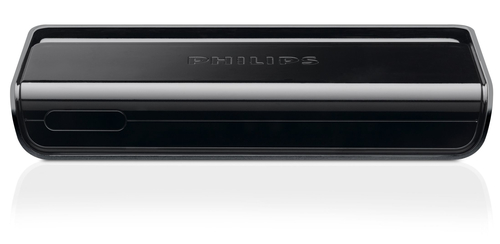

Philips Digital Terrestrial Receiver DTR220/05: Full Specifications

Overview

Memory: 16 MB
Weight: 400 g
Colour: Black, Silver
Signal source: Terrestrial
Video formats supported: MPEG2
Ethernet LAN: No

Brand: Philips
Category: TV Set-Top Box
Model: DTR220/05
Part number: DTR220/05
EAN / UPC: 3465768989863, 4010056706630, 8710895936316
Also known as: Philips Digital Terrestrial Receiver DTR220/05

Specifications

59 specifications in 13 groups

Video

Specification	Value
Signal source	Terrestrial
Video resolutions	720 x 576 pixels
Aspect ratio	3:4, 4:3, 16:9

File formats

Specification	Value
Video formats supported	MPEG2

Network

Specification	Value
Ethernet LAN	No
Wi-Fi	No

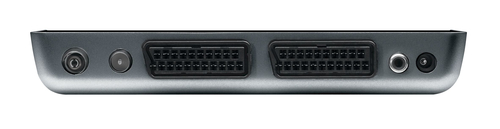

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI-I ports quantity	0
DVI-D ports quantity	0
VGA (D-Sub) ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
S-Video outputs quantity	0
Composite video out	0
SCART ports quantity	2
Ethernet LAN (RJ-45) ports	0
Component video (YPbPr/YCbCr) in	0
Component video (YPbPr/YCbCr) out	0
Digital audio coaxial out	1
Digital audio optical out	0
Audio (L/R) out	0
RF ports quantity	1
DC-in jack	Yes

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	No

Memory

Specification	Value
Flash memory	2 MB
Internal memory	16 MB

Features

Specification	Value
Product colour	Black, Silver
Tuner type	Digital
Number of tuners	1 tuner(s)
Electronic Programme Guide (EPG)	Yes
Audio output channels	2.0 channels
Audio decoders	Dolby Digital
Plug and Play	Yes
Child lock	Yes
Parental control	Yes
Programmable events	8

Power

Specification	Value
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	7 W
Power consumption (standby)	5 W

Weight & dimensions

Specification	Value
Width	199.4 mm
Depth	95.1 mm
Height	33.4 mm
Weight	400 g

Packaging data

Specification	Value
Package width	285 mm
Package depth	195 mm
Package height	58 mm
Package dimensions (WxDxH)	285 x 195 x 58 mm
Package weight	1 kg

Packaging content

Specification	Value

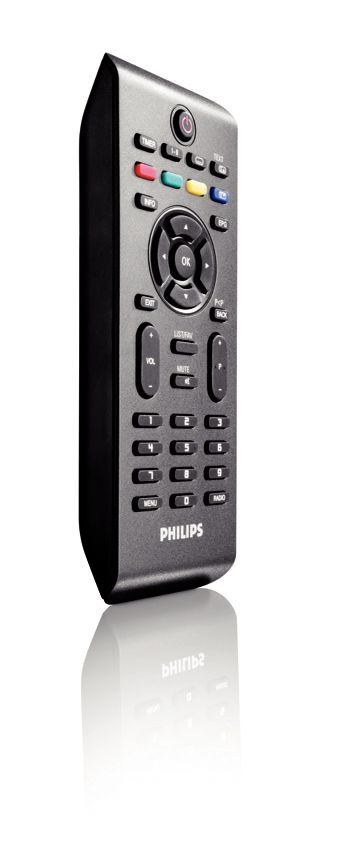

Remote control included	Yes
Batteries included	Yes
Cables included	AC
Manual	Yes

Other features

Specification	Value
Dimensions (WxDxH)	199.4 x 95.1 x 33.4 mm
Power requirements	12V DC

Technical details

Specification	Value
Input frequency range	474 - 862 MHz
Reception	COFDM 2K/8K, MPEG-2 DVB, MFN/SFN, QAM, QPSK
