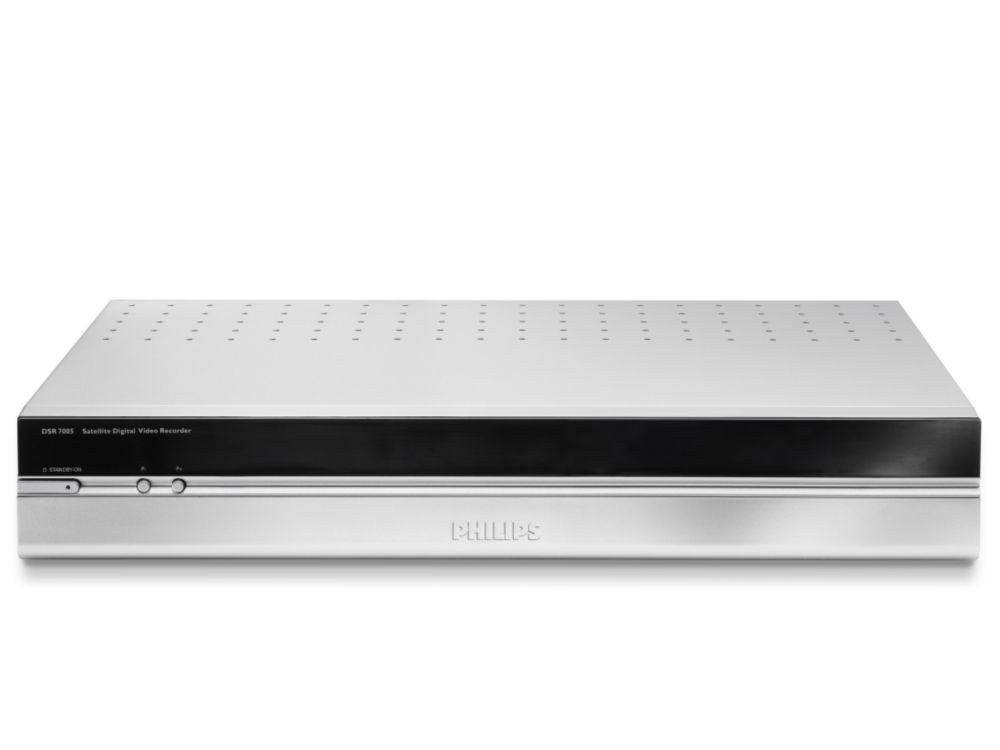

DSR7005 Digital Satellite Receiver
Model DSR7005/00EAN 8710895947978
63 specifications
- Memory16 MB
- Storage160 GB
- Weight3.2 kg
- ColourSilver
- Signal sourceSatellite
- Video formats supportedMPEG2
Overview
- Memory
- 16 MB
- Storage
- 160 GB
- Weight
- 3.2 kg
- Colour
- Silver
- Signal source
- Satellite
- Video formats supported
- MPEG2
- Brand
- Philips
- Category
- TV Set-Top Box
- Model
- DSR7005/00
- Part number
- DSR7005/00
- EAN / UPC
- 8710895947978
- Also known as
- Philips DSR7005 Digital Satellite Receiver
Specifications
63 specifications in 14 groups
Video
| Specification | Value |
|---|---|
| Signal source | Satellite |
| Video resolutions | 720 x 576 pixels |
| Aspect ratio | 16:9 |
File formats
| Specification | Value |
|---|---|
| Video formats supported | MPEG2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| S-Video outputs quantity | 0 |
| Composite video out | 0 |
| SCART ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 0 |
| Component video (YPbPr/YCbCr) out | 0 |
| Digital audio coaxial out | 0 |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| DC-in jack | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | Yes |
| HDD capacity | 160 GB |
| HDD recording | Yes |
| Maximum HDD recording time | 80 h |
Memory
| Specification | Value |
|---|---|
| Flash memory | 4 MB |
| Internal memory | 16 MB |
Features
| Specification | Value |
|---|---|
| Product colour | Silver |
| Tuner type | Digital |
| Number of tuners | 2 tuner(s) |
| Frequency range | 950 - 2150 MHz |
| Electronic Programme Guide (EPG) | Yes |
| Audio output channels | 5.1 channels |
| Audio decoders | Dolby Digital 5.1 |
| Child lock | Yes |
| Parental control | Yes |
| Events timer/reminder | Yes |
| Favorite list TV programs | 3 |
| Favorite list radio programs | 3 |
| On Screen Display (OSD) | Yes |
| Programmable events | 10 |
| Signal strength indication | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 40 W |
| Power consumption (standby) | 11 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 380 mm |
| Depth | 250 mm |
| Height | 60 mm |
| Weight | 3.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 470 mm |
| Package depth | 320 mm |
| Package height | 100 mm |
| Package dimensions (WxDxH) | 470 x 320 x 100 mm |
| Package weight | 4.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, SCART |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 380 x 250 x 60 mm |
Technical details
| Specification | Value |
|---|---|
| Input frequency range | 950 - 2150 MHz |
| Reception | MPEG-2 DVB compliant, QPSK |
