O!PLAY TV Pro
Model O!PLAY TV ProPart no. O!PLAY TV PRO
56 specifications
- Weight1.1 kg
- ColourBlack, Silver
- Signal sourceCable
- Image formats supportedBMP, GIF, JPG, PNG, TIF
- Ethernet LANYes
- USB 2.0 ports quantity2
Overview
- Weight
- 1.1 kg
- Colour
- Black, Silver
- Signal source
- Cable
- Image formats supported
- BMP, GIF, JPG, PNG, TIF
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- TV Set-Top Box
- Model
- O!PLAY TV Pro
- Part number
- O!PLAY TV PRO
- Also known as
- ASUS O!PLAY TV Pro Cable Full HD Black, Silver
Specifications
56 specifications in 10 groups
Video
| Specification | Value |
|---|---|
| Signal source | Cable |
| HD type | Full HD |
| Digital signal format system | DVB-T |
| Video resolutions | 1920 x 1080 pixels |
| Supported video modes | 1080p |
File formats
| Specification | Value |
|---|---|
| Video formats supported | ASF, AVI, DAT, FLV, H.264, ISO, M2TS, M4V, MKV, MOV, MP4, MPEG1, MPEG2, MPEG4, MPG, MTS, RM, RMVB, TRP, TS, VC-1, VOB, WMV, XVID |
| Audio formats supported | AAC, AIFF, APE, FLAC, MP2, MP3, MS-ADPCM, OGG, RA-Lossless, WAV |
| Image formats supported | BMP, GIF, JPG, PNG, TIF |
| Subtitle formats supported | ass, smi, srt, ssa, sub, sub+idx, ttxt |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |

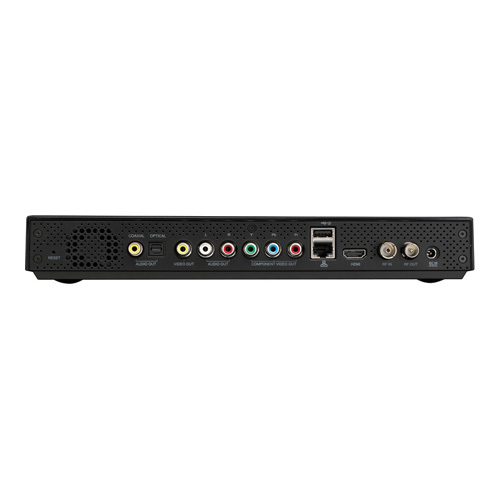

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| S-Video outputs quantity | 0 |
| Composite video out | 1 |
| SCART ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
| Digital audio coaxial out | 1 |
| Digital audio optical out | 1 |
| Audio (L/R) out | 1 |
| HDMI version | 1.4 |
| RF ports quantity | 2 |
| S/PDIF out port | Yes |
| DC-in jack | Yes |

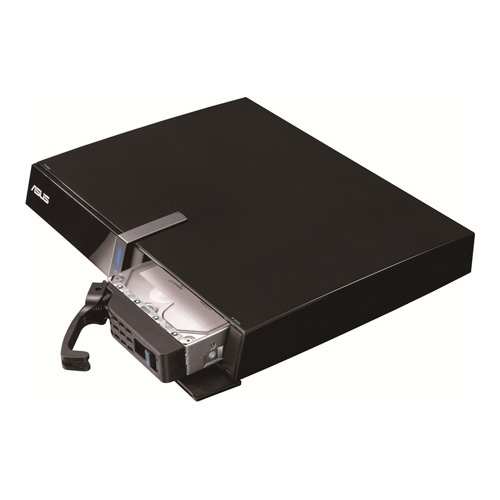

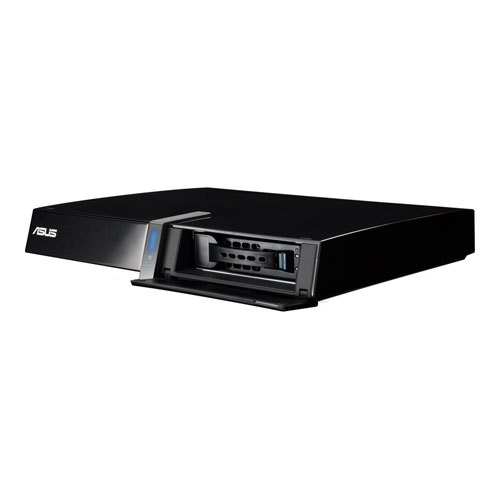

Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| HDD size | 3.5" |
| HDD recording | Yes |
| Supported file systems | ext3, FAT16, FAT32, HFS, HFS+, NTFS |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, SD, xD |
Features
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Tuner type | Digital |
| Number of tuners | 1 tuner(s) |
| Electronic Programme Guide (EPG) | Yes |
| Audio output channels | 7.1 channels |
| Audio decoders | Dolby Digital, Dolby TrueHD, DTS |
| Plug and Play | Yes |
| Free-to-air access | Yes |
| Online web browsing | Yes |
| Timeshift | Yes |
| Watch & record capability | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 243 mm |
| Height | 40 mm |
| Weight | 1.1 kg |
Packaging content
| Specification | Value |
|---|---|

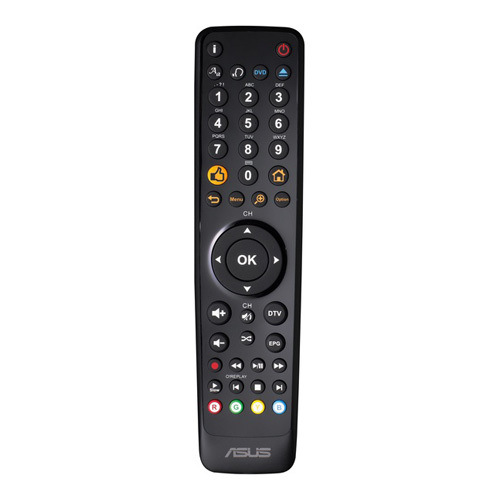

| Remote control included | Yes |
| Cables included | AC, Composite |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 300 x 243 x 40 mm |
| HDMI | Yes |
| Power requirements | 12V DC, 3A |
