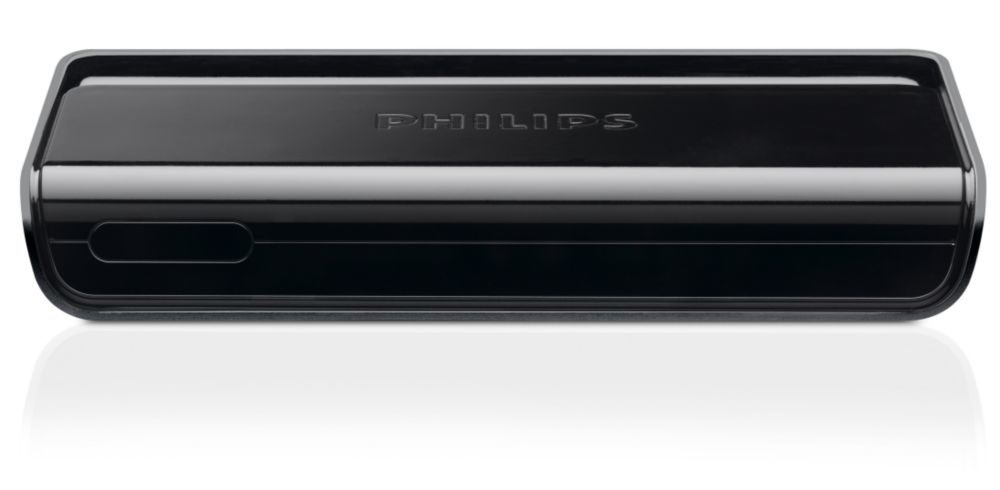

DTR220 Digital Terrestrial Receiver
Model DTR220/24EAN 2600030049604
61 specifications
- Memory8 MB
- Weight400 g
- ColourBlack, Silver
- Signal sourceTerrestrial
- Video formats supportedMPEG2
- Ethernet LANNo
Overview
- Memory
- 8 MB
- Weight
- 400 g
- Colour
- Black, Silver
- Signal source
- Terrestrial
- Video formats supported
- MPEG2
- Ethernet LAN
- No
- Brand
- Philips
- Category
- TV Set-Top Box
- Model
- DTR220/24
- Part number
- DTR220/24
- EAN / UPC
- 2600030049604, 8712581338268
- Also known as
- Philips DTR220 Digital Terrestrial Receiver
Specifications
61 specifications in 13 groups
Video
| Specification | Value |
|---|---|
| Signal source | Terrestrial |
| Video resolutions | 720 x 576 pixels |
| Aspect ratio | 3:4, 4:3, 16:9 |
File formats
| Specification | Value |
|---|---|
| Video formats supported | MPEG2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| S-Video outputs quantity | 0 |
| Composite video out | 0 |
| SCART ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Component video (YPbPr/YCbCr) out | 0 |
| Digital audio coaxial out | 1 |
| Digital audio optical out | 0 |
| Audio (L/R) out | 0 |
| RF ports quantity | 1 |
| DC-in jack | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | No |
Memory
| Specification | Value |
|---|---|
| Flash memory | 2 MB |
| Internal memory | 8 MB |
Features
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Tuner type | Digital |
| Number of tuners | 1 tuner(s) |
| Electronic Programme Guide (EPG) | Yes |
| Audio output channels | 2.0 channels |
| Audio decoders | Dolby Digital |
| Plug and Play | Yes |
| Child lock | Yes |
| Parental control | Yes |
| Teletext function | Yes |
| Programmable events | 8 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 7 W |
| Power consumption (standby) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 199.4 mm |
| Depth | 95.1 mm |
| Height | 33.4 mm |
| Weight | 400 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 285 mm |
| Package depth | 195 mm |
| Package height | 58 mm |
| Package dimensions (WxDxH) | 285 x 195 x 58 mm |
| Package weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 199.4 x 95.1 x 33.4 mm |
| Power requirements | 12V DC |
Technical details
| Specification | Value |
|---|---|
| Input frequency range | 174 - 862 MHz |
| Reception | COFDM 2K/8K, MPEG-2 DVB, MFN/SFN, QAM, QPSK |
| Larger master carton dimensions (WxDxH) | 258 x 173 x 58 |
