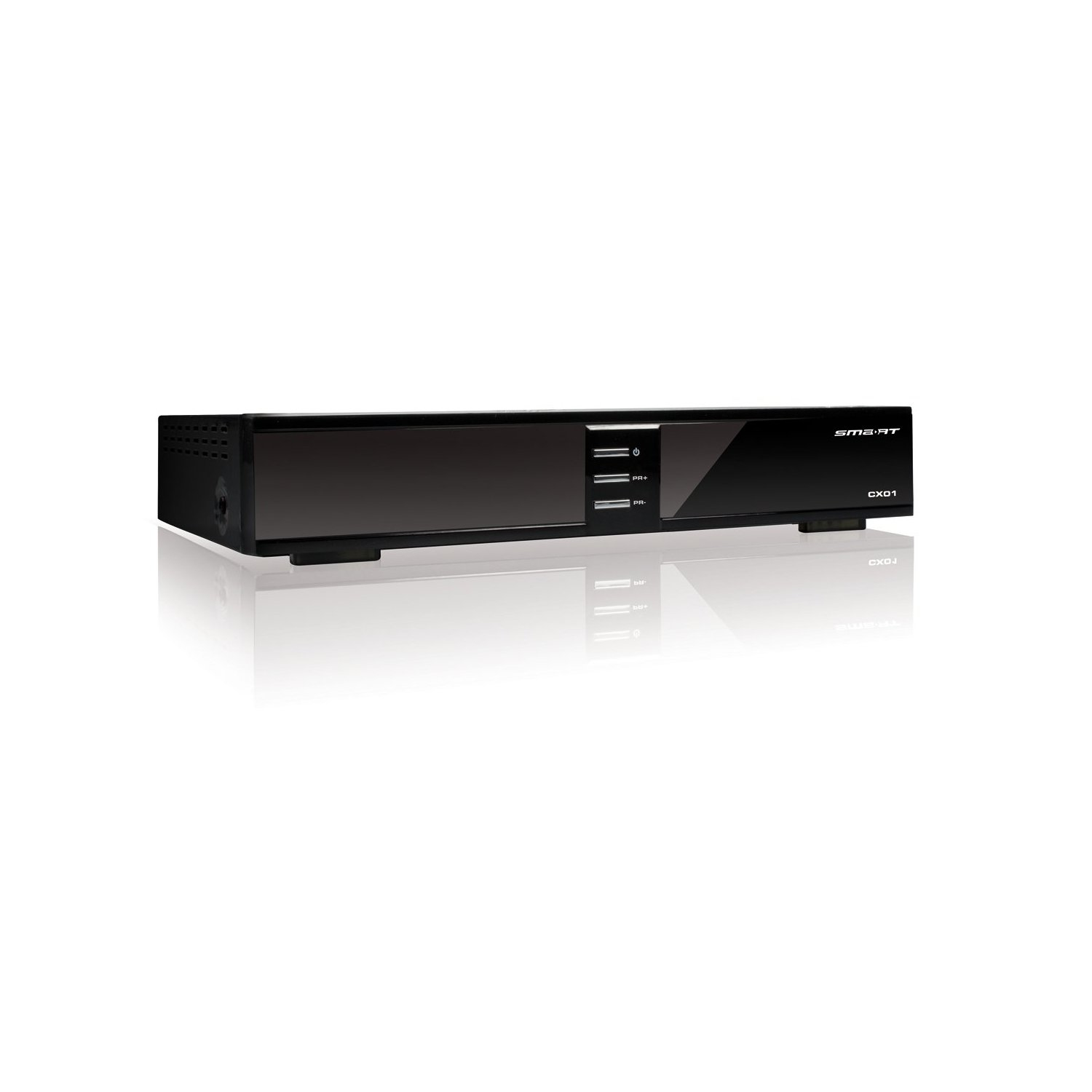

CX01 Satellite Full HD Black
Model CX01Part no. 21-01-01-0052EAN 4022338368955
47 specifications
- Weight800 g
- ColourBlack
- Signal sourceSatellite
- Video formats supportedMKV
- Ethernet LANNo
- USB 2.0 ports quantity1
Overview
- Weight
- 800 g
- Colour
- Black
- Signal source
- Satellite
- Video formats supported
- MKV
- Ethernet LAN
- No
- USB 2.0 ports quantity
- 1
- Brand
- SMART Technologies
- Category
- TV Set-Top Box
- Model
- CX01
- Part numbers
- 21-01-01-0052, 21-01-01-0055
- EAN / UPC
- 4022338368955, 4022338370521
- Also known as
- SMART Technologies CX01 Satellite Full HD Black
Specifications
47 specifications in 11 groups
Video
| Specification | Value |
|---|---|
| Signal source | Satellite |
| HD type | Full HD |
| Digital signal format system | DVB-S, DVB-S2 |
| Video resolutions | 1920 x 1080 pixels |
| Supported video modes | 1080p |
| 3D | No |
| Aspect ratio | 16:9 |
File formats
| Specification | Value |
|---|---|
| Video formats supported | MKV |
| Audio formats supported | MP3 |
| Image formats supported | JPG |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |

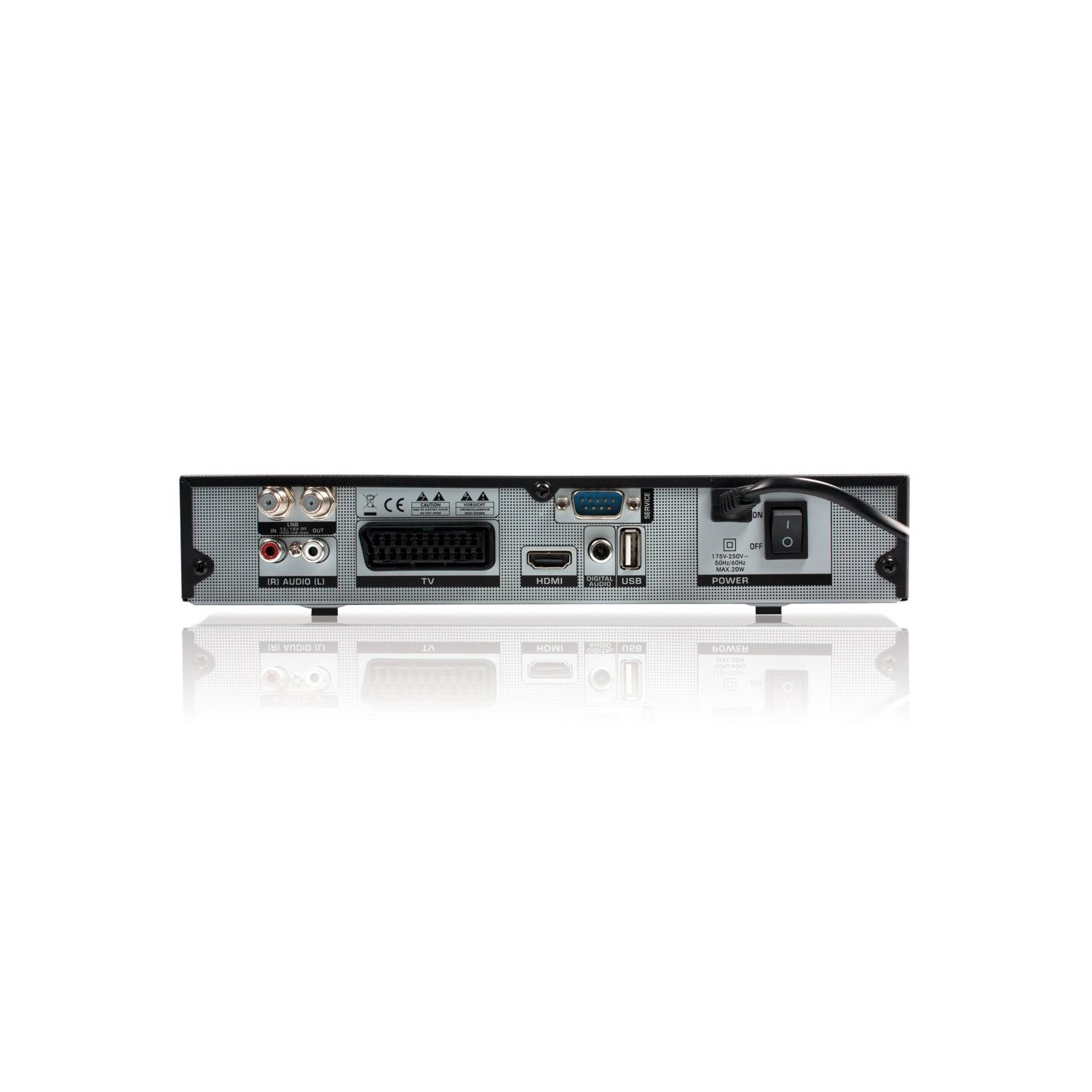

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| S-Video outputs quantity | 0 |
| Composite video out | 0 |
| SCART ports quantity | 1 |
| Component video (YPbPr/YCbCr) out | 0 |
| Digital audio coaxial out | 1 |
| Audio (L/R) out | 1 |
| RF ports quantity | 2 |
| RS-232 interface | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Tuner type | Digital |
| Electronic Programme Guide (EPG) | Yes |
| Parental control | Yes |
| Teletext function | Yes |
| Events timer/reminder | Yes |
| On Screen Display (OSD) | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display type | LED |
| Display digits | 4 digits |
Power
| Specification | Value |
|---|---|
| AC input voltage | 175-250 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 0.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 165 mm |
| Height | 45 mm |
| Weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| HDMI | Yes |
