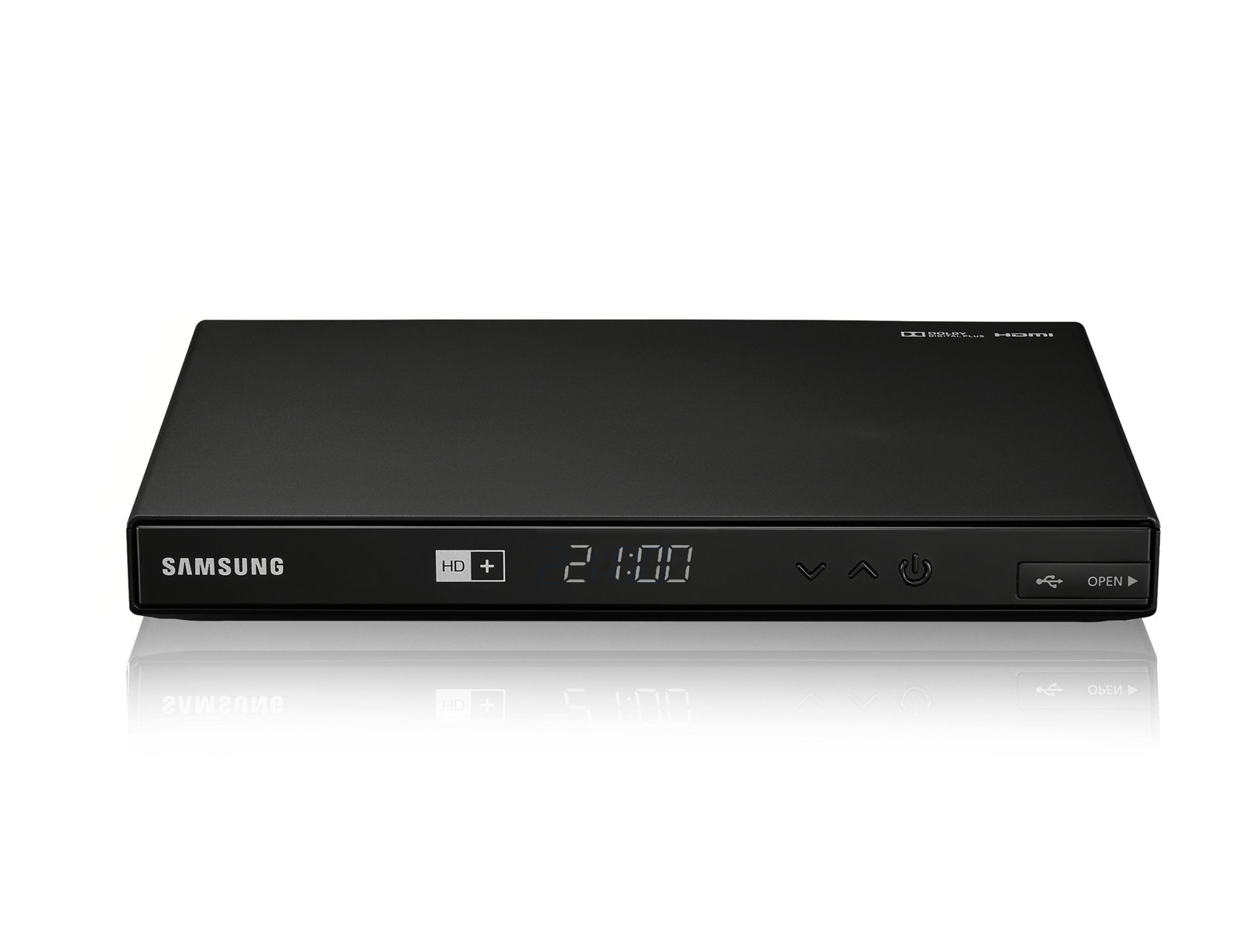

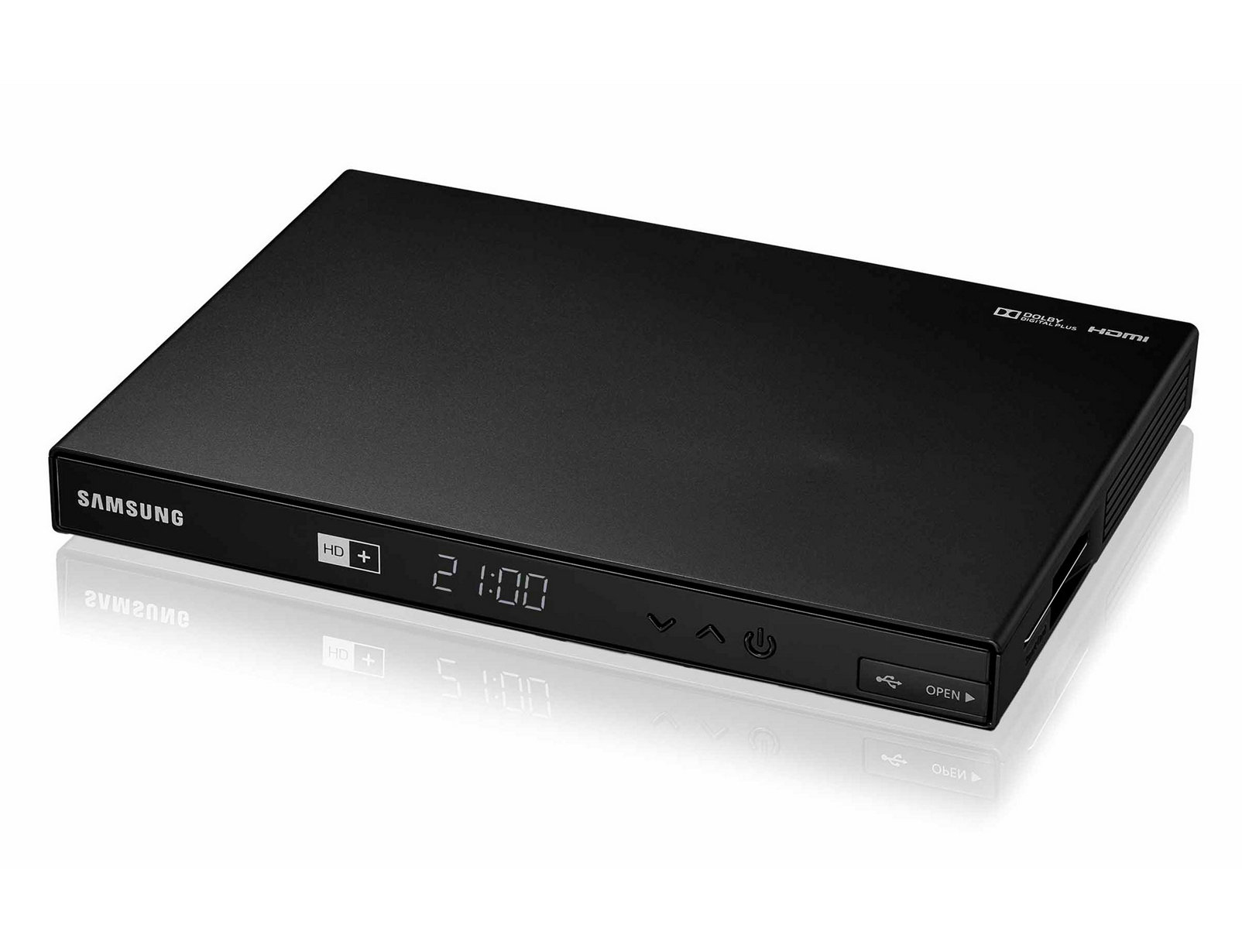

GX-SM660SM Satellite Full HD Black
Model GX-SM660SMPart no. GX-SM660SM/ZGEAN 8801643040383
44 specifications
- Weight600 g
- ColourBlack
- Signal sourceSatellite
- Audio formats supportedMP3
- Ethernet LANYes
- USB 2.0 ports quantity2
Overview
- Weight
- 600 g
- Colour
- Black
- Signal source
- Satellite
- Audio formats supported
- MP3
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 2
- Brand
- Samsung
- Category
- TV Set-Top Box
- Model
- GX-SM660SM
- Part number
- GX-SM660SM/ZG
- EAN / UPC
- 8801643040383
- Also known as
- Samsung GX-SM660SM Satellite Full HD Black
Specifications
44 specifications in 12 groups
Video
| Specification | Value |
|---|---|
| Signal source | Satellite |
| HD type | Full HD |
| Digital signal format system | DVB-S, DVB-S2 |
| Supported video modes | 576i, 576p, 720p, 1080i, 1080p |
| Aspect ratio | 16:9 |
File formats
| Specification | Value |
|---|---|
| Video formats supported | ASF, AVI, MKV, MOV, MP4, MPEG, MPG, TS, WMV, XVID |
| Audio formats supported | MP3 |
| Image formats supported | JPEG |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |

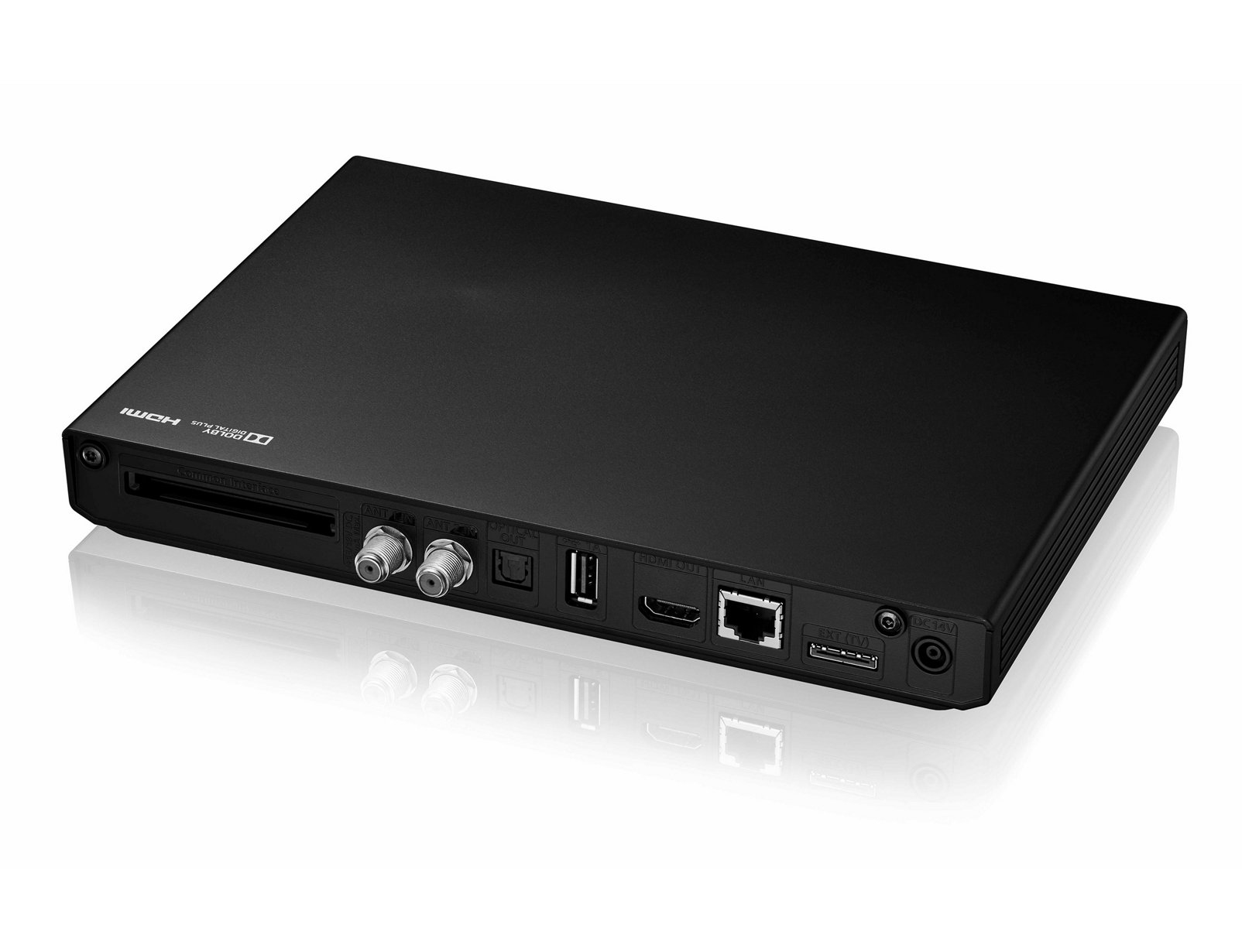

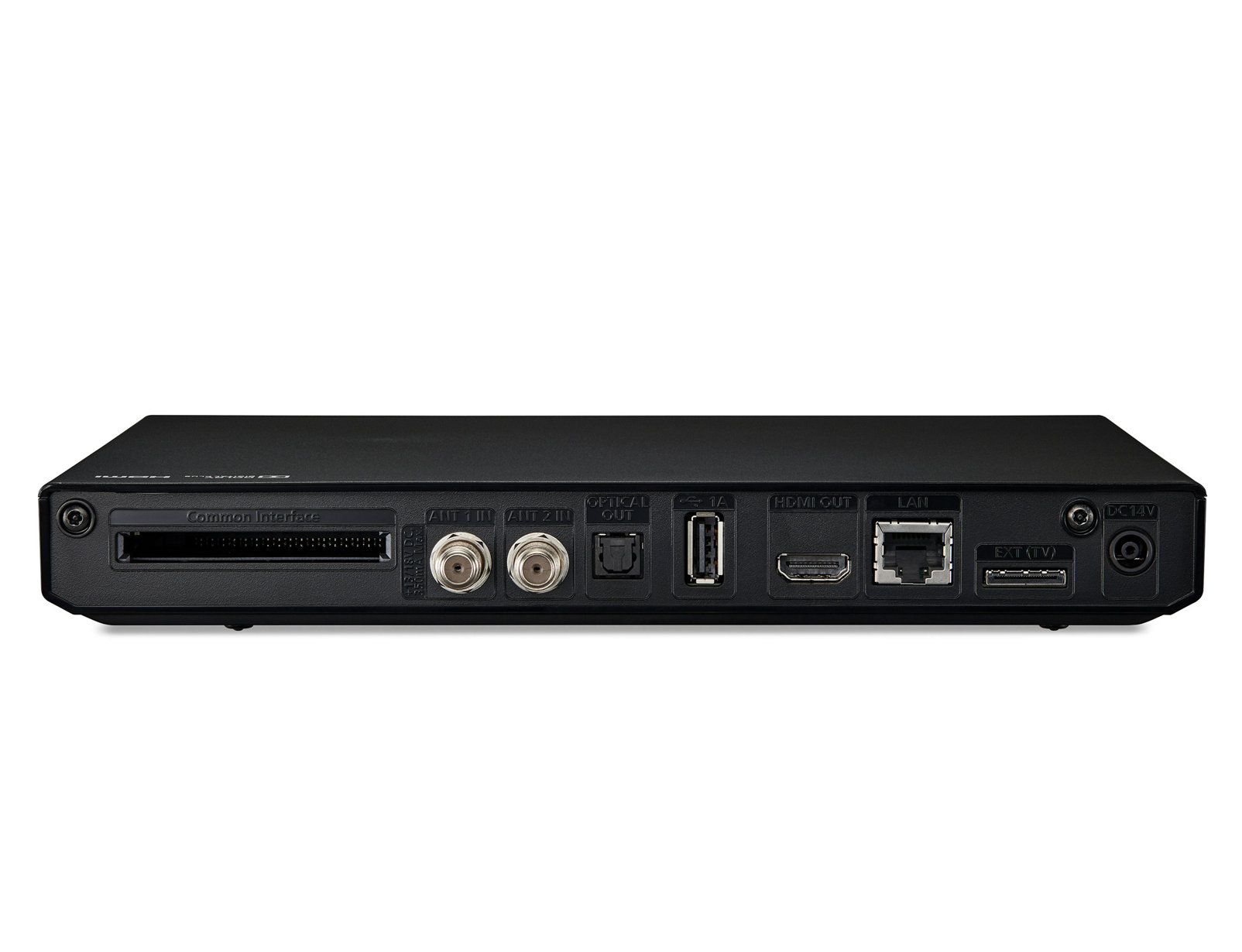

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| S-Video outputs quantity | 0 |
| Composite video out | 0 |
| SCART ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Component video (YPbPr/YCbCr) out | 0 |
| Digital audio coaxial out | 0 |
| Digital audio optical out | 1 |
| SmartCard slot | Yes |
| SmartCard slots quantity | 1 |
| DC-in jack | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Tuner type | Digital |
| Electronic Programme Guide (EPG) | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Polish, Turkish |
| Timeshift | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 32.25 W |
| Power consumption (standby) | 0.32 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 174 mm |
| Height | 30 mm |
| Weight | 600 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 337 mm |
| Package depth | 64 mm |
| Package height | 272 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
