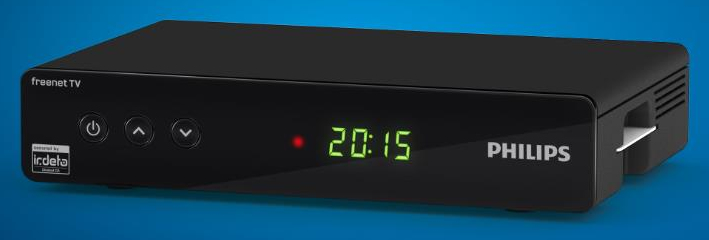

DTR3442B TV set-top box Terrestrial Full HD Black
Model DTR3442B
41 specifications
- Weight500 g
- ColourBlack
- Signal sourceTerrestrial
- Video formats supportedH.264, H.265, MPEG2, MPEG4
- Ethernet LANYes
- USB 2.0 ports quantity1
Overview
- Weight
- 500 g
- Colour
- Black
- Signal source
- Terrestrial
- Video formats supported
- H.264, H.265, MPEG2, MPEG4
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 1
- Brand
- Philips
- Category
- TV Set-Top Box
- Model
- DTR3442B
- Part number
- DTR3442B
- Also known as
- Philips DTR3442B TV set-top box Terrestrial Full HD Black
Specifications
41 specifications in 10 groups
Video
| Specification | Value |
|---|---|
| Signal source | Terrestrial |
| HD type | Full HD |
| Personal Video Recorder (PVR) included | No |
| Digital signal format system | DVB-T, DVB-T2 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
File formats
| Specification | Value |
|---|---|
| Video formats supported | H.264, H.265, MPEG2, MPEG4 |
| Audio formats supported | HE-AAC, LC-AAC, MP1, MP2, MP3, WMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| S-Video outputs quantity | 0 |
| Composite video out | 0 |
| SCART ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Component video (YPbPr/YCbCr) out | 0 |
| Digital audio coaxial out | 1 |
| Digital audio optical out | 0 |
| RF ports quantity | 1 |
| DC-in jack | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Tuner type | Digital |
| Number of tuners | 1 tuner(s) |
| Electronic Programme Guide (EPG) | Yes |
| Audio decoders | Dolby Digital Plus |
| Screen format adjustments | 4:3, 16:9 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 0.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 196 mm |
| Depth | 125 mm |
| Height | 39 mm |
| Weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
