Digital Terrestrial Receiver DTR2530/05
Model DTR2530/05EAN 8712581406486
37 specifications
- Weight980 g
- ColourBlack
- Signal sourceCable
- Video formats supportedMPEG2
- Ethernet LANNo
- USB 2.0 ports quantity0
Overview
- Weight
- 980 g
- Colour
- Black
- Signal source
- Cable
- Video formats supported
- MPEG2
- Ethernet LAN
- No
- USB 2.0 ports quantity
- 0
- Brand
- Philips
- Category
- TV Set-Top Box
- Model
- DTR2530/05
- Part number
- DTR2530/05
- EAN / UPC
- 8712581406486
- Also known as
- Philips Digital Terrestrial Receiver DTR2530/05
Specifications
37 specifications in 11 groups
Video
| Specification | Value |
|---|---|
| Signal source | Cable |
| Video resolutions | 720 x 576 pixels |
| Aspect ratio | 4:3, 16:9 |
File formats
| Specification | Value |
|---|---|
| Video formats supported | MPEG2 |
| Audio formats supported | MP1, MP2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |

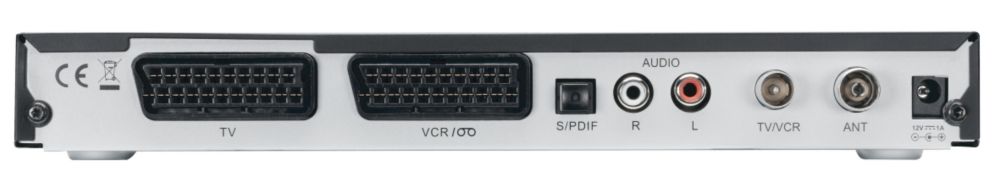

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| S-Video outputs quantity | 1 |
| Composite video out | 0 |
| SCART ports quantity | 2 |
| Component video (YPbPr/YCbCr) out | 0 |
| Digital audio coaxial out | 0 |
| Audio (L/R) out | 1 |
| RF ports quantity | 2 |
| DC-in jack | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| HDD recording | No |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Audio output channels | 2.0 channels |
| Programmable events | 8 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 7 W |
| Power consumption (standby) | 5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 255 mm |
| Depth | 160 mm |
| Height | 40 mm |
| Weight | 980 g |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 305 x 245 x 65 mm |
| Package weight | 1.78 kg |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Cables included | SCART |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| HDMI | No |
