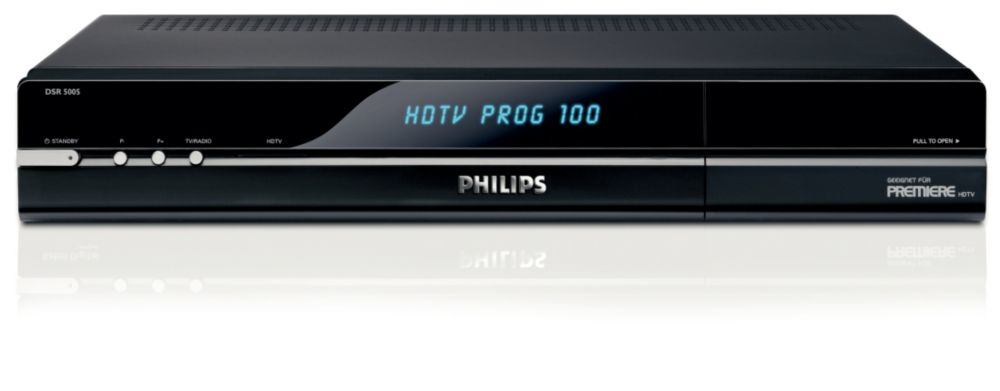

DSR5005 Digital Satellite Receiver
Model DSR5005/02EAN 8710895900157
20 specifications
- Memory64 MB
- Weight2 kg
- ColourBlack
- SCART ports quantity2
- Flash memory16 MB
- Processor frequency266 MHz
Overview
- Memory
- 64 MB
- Weight
- 2 kg
- Colour
- Black
- SCART ports quantity
- 2
- Flash memory
- 16 MB
- Processor frequency
- 266 MHz
- Brand
- Philips
- Category
- TV Set-Top Box
- Model
- DSR5005/02
- Part number
- DSR5005/02
- EAN / UPC
- 8710895900157
- Also known as
- Philips DSR5005 Digital Satellite Receiver
Specifications
20 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| SCART ports quantity | 2 |
| Digital audio coaxial out | 1 |
| Digital audio optical out | 1 |
Memory
| Specification | Value |
|---|---|
| Flash memory | 16 MB |
| Internal memory | 64 MB |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Frequency range | 47 - 862 MHz |
| Child lock | Yes |
| Parental control | Yes |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 266 MHz |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 480 x 290 x 120 mm |
| Package weight | 3.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 360 x 55 x 220 mm |
| Power requirements | 230V (+/-10/-15%)/50Hz |
Technical details
| Specification | Value |
|---|---|
| Input frequency range | 950 - 2150 MHz |
| Symbol rate | DVB-S: 2-30, DVB-S2: 2-30 |
