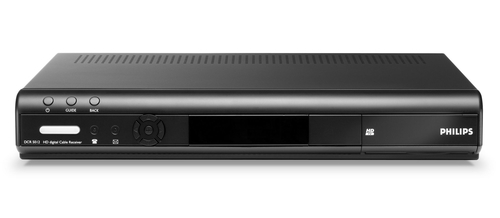

DCR5012 Digital Cable Receiver
Model DCR5012/03EAN 8712581411787
41 specifications
- Weight1.87 kg
- ColourBlack
- Signal sourceCable, Ethernet (RJ-45)
- Video formats supportedMPEG2, MPEG4
- Ethernet LANYes
- USB 2.0 ports quantity1
Overview
- Weight
- 1.87 kg
- Colour
- Black
- Signal source
- Cable, Ethernet (RJ-45)
- Video formats supported
- MPEG2, MPEG4
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 1
- Brand
- Philips
- Category
- TV Set-Top Box
- Model
- DCR5012/03
- Part number
- DCR5012/03
- EAN / UPC
- 8712581411787
- Also known as
- Philips DCR5012 Digital Cable Receiver
Specifications
41 specifications in 11 groups
Video
| Specification | Value |
|---|---|
| Signal source | Cable, Ethernet (RJ-45) |
| HD type | Full HD |
| Digital signal format system | DVB |
| Video resolutions | 1920 x 1080 pixels |
| Aspect ratio | 4:3, 16:9 |
File formats
| Specification | Value |
|---|---|
| Video formats supported | MPEG2, MPEG4 |
| Audio formats supported | AAC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| S-Video outputs quantity | 0 |
| Composite video out | 0 |
| SCART ports quantity | 1 |
| Component video (YPbPr/YCbCr) out | 0 |
| Digital audio coaxial out | 1 |
| Digital audio optical out | 1 |
| Audio (L/R) out | 1 |
| RF ports quantity | 1 |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Tuner type | Digital |
| Number of tuners | 1 tuner(s) |
| Frequency range | 51 - 858 MHz |
| Electronic Programme Guide (EPG) | Yes |
| Audio output channels | 5.1 channels |
| Audio decoders | Dolby Digital |
| HDCP | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 200-220 V |
| Power consumption (typical) | 22 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 360 mm |
| Depth | 220 mm |
| Height | 55 mm |
| Weight | 1.87 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | HDMI |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| HDMI | Yes |
