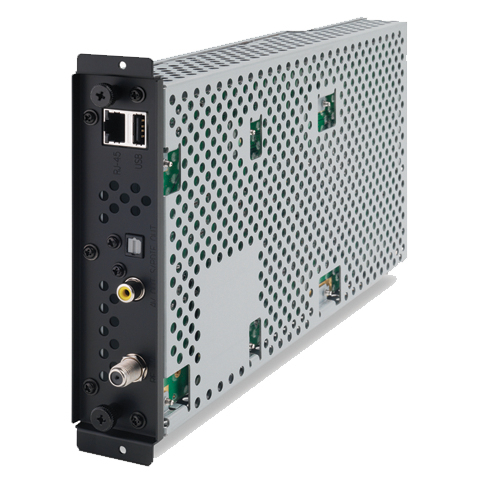

MPD-DTI TV set-top box Cable, IPTV Black
Model MPD-DTIEAN 805736031423
38 specifications
- Weight1.2 kg
- ColourBlack
- Signal sourceCable, IPTV
- Video formats supportedAVCHD, H.264, MPEG2, VC-1
- Ethernet LANYes
- USB 2.0 ports quantity1
Overview
- Weight
- 1.2 kg
- Colour
- Black
- Signal source
- Cable, IPTV
- Video formats supported
- AVCHD, H.264, MPEG2, VC-1
- Ethernet LAN
- Yes
- USB 2.0 ports quantity
- 1
- Brand
- NEC
- Category
- TV Set-Top Box
- Model
- MPD-DTI
- Part number
- MPD-DTI
- EAN / UPC
- 805736031423
- Also known as
- NEC MPD-DTI TV set-top box Cable, IPTV Black
Specifications
38 specifications in 11 groups
Video
| Specification | Value |
|---|---|
| Signal source | Cable, IPTV |
| Digital signal format system | ATSC |
| Analog signal format system | NTSC |
File formats
| Specification | Value |
|---|---|
| Video formats supported | AVCHD, H.264, MPEG2, VC-1 |
| Audio formats supported | AAC, MP3, WMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| S-Video outputs quantity | 0 |
| Composite video out | 0 |
| SCART ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Component video (YPbPr/YCbCr) out | 0 |
| Digital audio coaxial out | 0 |
| Digital audio optical out | 1 |
| RF ports quantity | 1 |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of tuners | 2 tuner(s) |
| Audio decoders | Dolby Digital, Dolby Digital Plus |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | English, Spanish, French |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 9.6 W |
| Power consumption | 600 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155.5 mm |
| Depth | 281.5 mm |
| Height | 40.5 mm |
| Weight | 1.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 218 x 369 x 86 mm |
| Package weight | 1.5 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC DOC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 902% |
