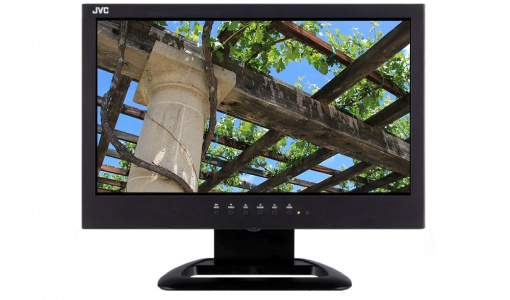

GD-W192 surveillance monitor
47 cm (18.5") 1366 x 768 pixels
Model GD-W192
24 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- ColourBlack
- Built-in speaker(s)No
- HDMI ports quantity1
- Power consumption (typical)20.7 W
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Colour
- Black
- Built-in speaker(s)
- No
- HDMI ports quantity
- 1
- Power consumption (typical)
- 20.7 W
- Brand
- JVC
- Category
- Surveillance Monitor
- Model
- GD-W192
- Part number
- GD-W192
- Also known as
- JVC GD-W192 surveillance monitor 47 cm (18.5") 1366 x 768 pixels
Specifications
24 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 180° |
| Display number of colours | 16.78 million colours |
| Contrast ratio (typical) | 1000:1 |
| Response time | 5 ms |
Performance
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot | No |
| On Screen Display (OSD) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 20.7 W |
| Power consumption (standby) | 0.33 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 448 mm |
| Depth (with stand) | 182 mm |
| Height (with stand) | 367 mm |
| Weight (with stand) | 5 kg |
