HMQ-5501 surveillance monitor CCTV monitor
AG Neovo

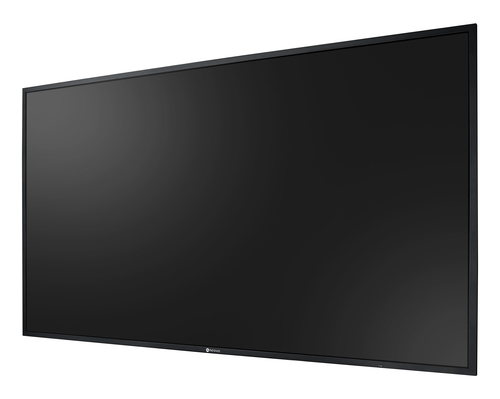

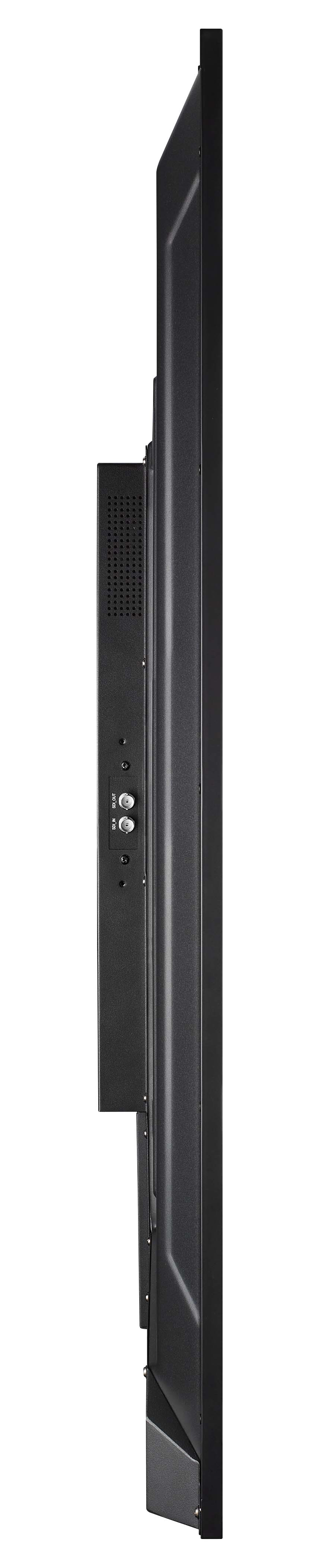

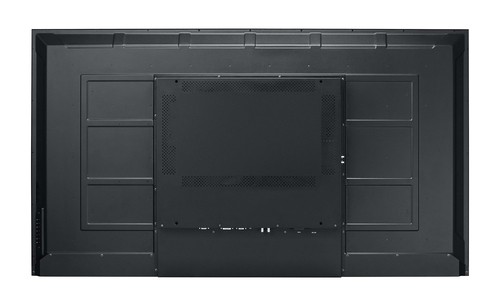

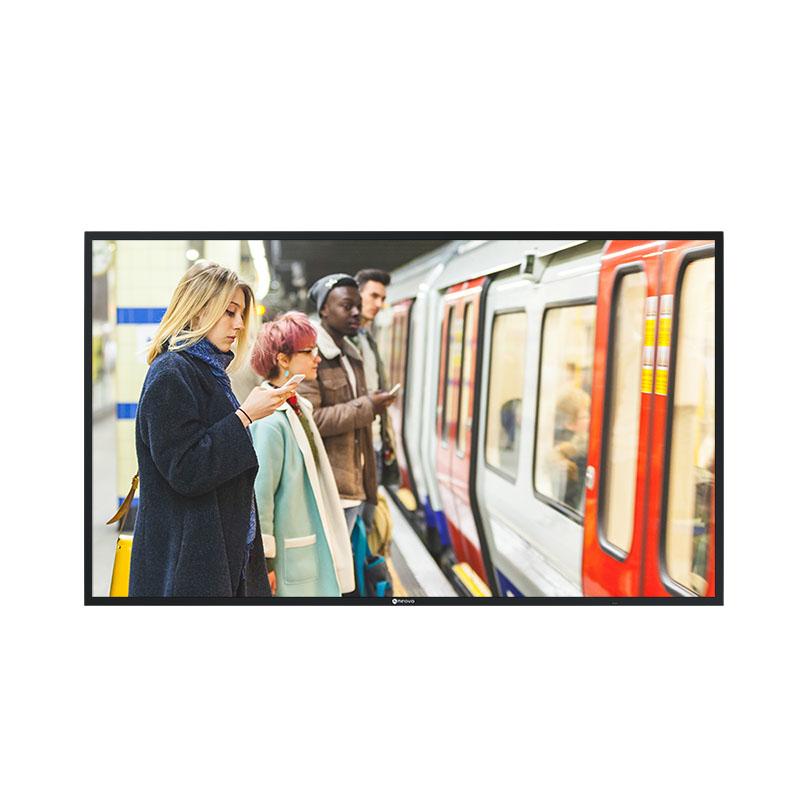

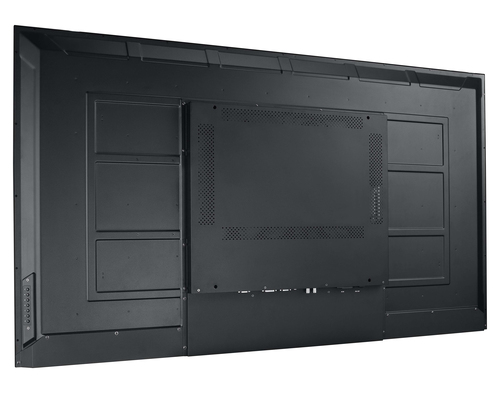

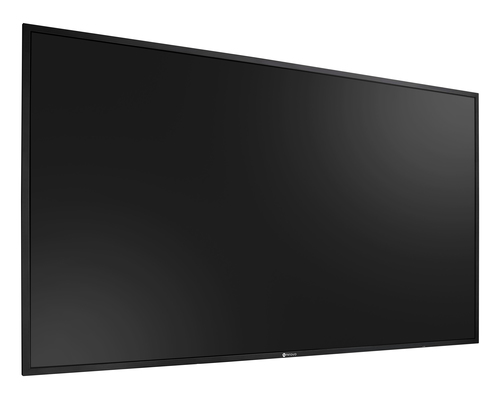

HMQ-5501 surveillance monitor CCTV monitor

138.7 cm (54.6") 3840 x 2160 pixels

Model HMQ-5501EAN 4710739597509

75 specifications
  • Display138.7 cm (54.6")
  • Resolution3840 x 2160 pixels
  • Energy classG
  • TypeCCTV monitor
  • Weight15 kg
  • ColourBlack
See all specifications

Overview

Display
138.7 cm (54.6")
Resolution
3840 x 2160 pixels
Energy class
G
Type
CCTV monitor
Weight
15 kg
Colour
Black
Brand
AG Neovo
Model
HMQ-5501
Part numbers
HMQ-5501, HM551011M0000-STD
EAN / UPC
4710739597509
Also known as
AG Neovo HMQ-5501 surveillance monitor CCTV monitor 138.7 cm (54.6") 3840 x 2160 pixels

Specifications

75 specifications in 9 groups

Design

Product typeCCTV monitor
Mounting typeWall-mounted
Product colourBlack

Display

Display diagonal138.7 cm (54.6")
Display resolution3840 x 2160 pixels
Display typeLED
Panel typeIPS
Display brightness350 cd/m²
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours1.07 billion colours
Pixel pitch0.315 x 0.315 mm
Horizontal scan range15 - 135 kHz
Vertical scan range24 - 86 Hz
Contrast ratio (typical)1200:1
Response time5 ms
Haze rate1%
NTSC coverage (typical)68%
RGB colour spaceNTSC
Anti-glare screenYes
Surface hardness3H
Digital horizontal frequency15 - 135 kHz
Digital vertical frequency24 - 86 Hz

Performance

Built-in speaker(s)Yes
Number of built-in speakers2
Speaker power5 W
Panel mounting interface400 x 400 mm
VESA mountingYes

Ports & interfaces

HDMI ports quantity1
HDMI version2.0
DVI-D ports quantity1
VGA (D-Sub) ports quantity1
Ethernet LANYes
RJ-45 ports quantity1
USB portYes
Composite video in1
USB 2.0 ports quantity1
Composite video out1
3.5 mm (1/8-inch) inYes
3.5 mm (1/8-inch) outYes
RS-232 ports1
Digital audio optical out1
SDI inputs1
SDI outputs1

Power

Power source typeAC
Power supply typeInternal
Power consumption (typical)99 W
Power consumption (standby)0.5 W
Power consumption (off)0.3 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
AC adapter output voltage100 - 240 V
Energy efficiency class (SDR)G
Energy efficiency scaleA to G
Energy consumption (SDR) per 1000 hours99 kWh

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 85%
Storage relative humidity (H-H)10 - 95%

Technical details

Compliance certificatesCE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
Sustainability complianceYes

Weight & dimensions

Weight15 kg
Height714 mm
Depth69.6 mm
Width1243.2 mm
Package typeBox
Package width1364 mm
Package depth154 mm
Package height824 mm
Package weight18.8 kg

Packaging content

AC adapter includedYes
Cables includedAC, HDMI
Remote control includedYes
Quick start guideYes
Quantity1
