HMQ-4301 surveillance monitor CCTV monitor
109.2 cm (43") 3840 x 2160 pixels
Model HMQ-4301EAN 4710739597493
71 specifications
- Display109.2 cm (43")
- Resolution3840 x 2160 pixels
- Energy classG
- TypeCCTV monitor
- Weight9.2 kg
- ColourBlack
Overview
- Display
- 109.2 cm (43")
- Resolution
- 3840 x 2160 pixels
- Energy class
- G
- Type
- CCTV monitor
- Weight
- 9.2 kg
- Colour
- Black
- Brand
- AG Neovo
- Category
- Surveillance Monitor
- Model
- HMQ-4301
- Part number
- HMQ-4301
- EAN / UPC
- 4710739597493
- Also known as
- AG Neovo HMQ-4301 surveillance monitor CCTV monitor 109.2 cm (43") 3840 x 2160 pixels
Specifications
71 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product type | CCTV monitor |
| Mounting type | Wall-mounted |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display diagonal | 109.2 cm (43") |
| Display resolution | 3840 x 2160 pixels |
| Display type | LCD |
| Panel type | IPS |
| Display brightness | 350 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.245 x 0.245 mm |
| Contrast ratio (typical) | 1200:1 |
| Response time | 5 ms |
| Haze rate | 1% |
| NTSC coverage (typical) | 72% |
| RGB colour space | NTSC |
| Anti-glare screen | Yes |
| Surface hardness | 3H |
| Digital horizontal frequency | 15 - 135 kHz |
| Digital vertical frequency | 24 - 86 Hz |
Performance
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 5 W |
| Panel mounting interface | 400 x 200 mm |
| VESA mounting | Yes |

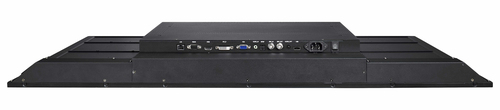

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN | Yes |
| RJ-45 ports quantity | 1 |
| USB port | Yes |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| Composite video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| RS-232 ports | 1 |
| Digital audio optical out | 1 |
| SDI inputs | 1 |
| SDI outputs | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power supply type | Internal |
| Power consumption (typical) | 75 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 100 - 240 V |
| Energy efficiency class (SDR) | G |
| Energy efficiency scale | A to G |
| Energy consumption (SDR) per 1000 hours | 75 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.2 kg |
| Height | 558.3 mm |
| Depth | 84.6 mm |
| Width | 969.9 mm |
| Package width | 1070 mm |
| Package depth | 153 mm |
| Package height | 663 mm |
| Package weight | 11.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
| Remote control included | Yes |
| Quick start guide | Yes |
| Batteries included | Yes |
