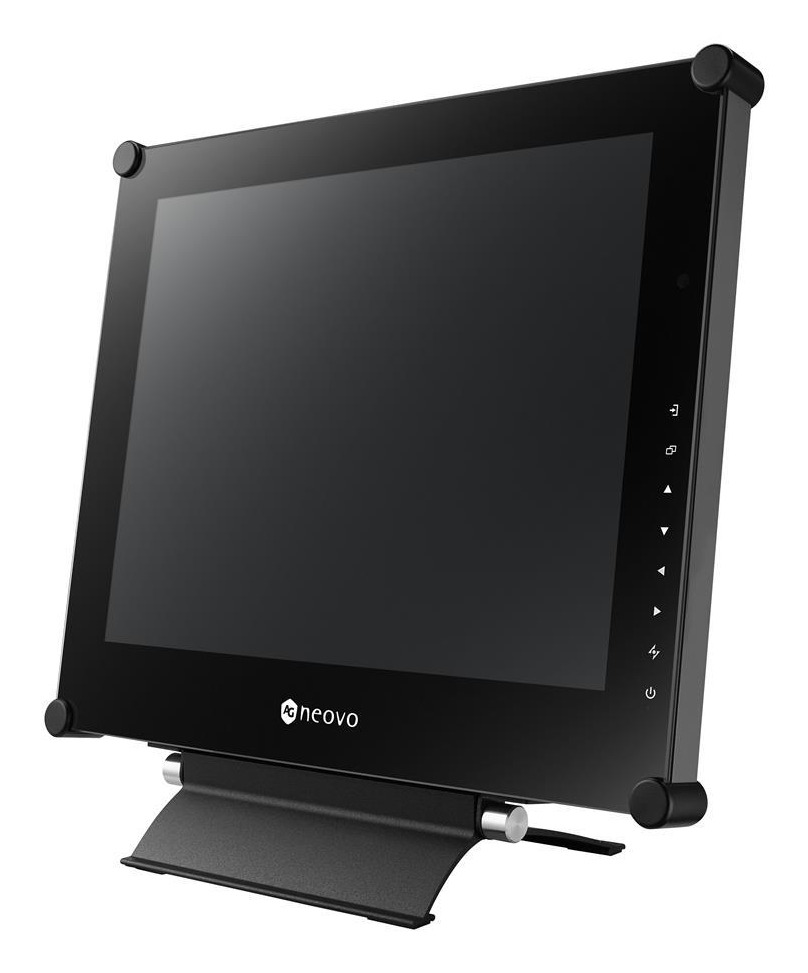

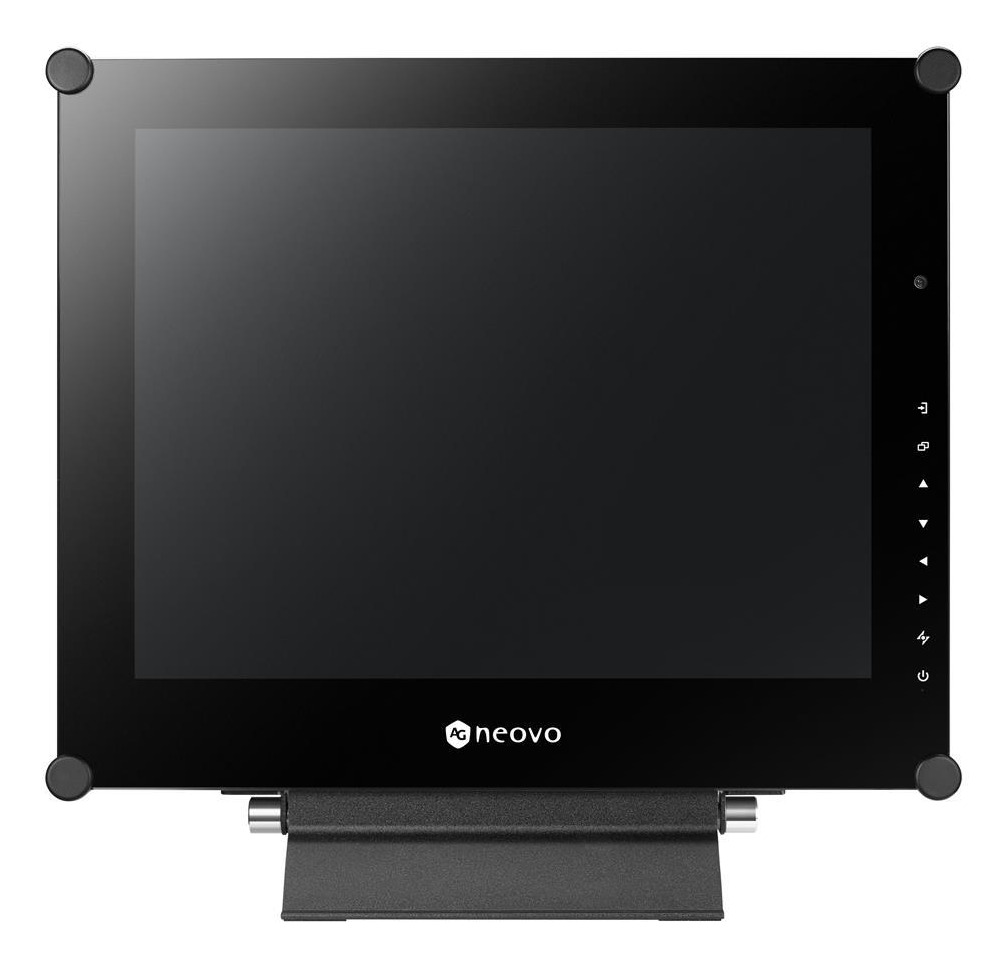

SX-15G CCTV monitor
38.1 cm (15") 1024 x 768 pixels
Model SX-15GPart no. SX5GA011E0100EAN 190695002455
73 specifications
- Display38.1 cm (15")
- Resolution1024 x 768 pixels
- Energy classE
- TypeCCTV monitor
- Weight4.8 kg
- ColourBlack
Overview
- Display
- 38.1 cm (15")
- Resolution
- 1024 x 768 pixels
- Energy class
- E
- Type
- CCTV monitor
- Weight
- 4.8 kg
- Colour
- Black
- Brand
- AG Neovo
- Category
- Surveillance Monitor
- Model
- SX-15G
- Part numbers
- SX5GA011E0100, SX-15G
- EAN / UPC
- 190695002455, 4710739595857
- Also known as
- AG Neovo SX-15G CCTV monitor 38.1 cm (15") 1024 x 768 pixels
Specifications
73 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product type | CCTV monitor |
| Mounting type | Freestanding/Wall-mounted |
| Product colour | Black |
| Tilt adjustment | Yes |
| Tilt angle | 20° |
| Tilt angle range | 0 - 20° |
| LED indicators | Yes |
| Certification | CB, FCC |
Display
| Specification | Value |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| Display type | TFT |
| Panel type | VA |
| Display brightness | 300 cd/m² |
| Display aspect ratio | 4:3 |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 176° |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 24 - 83 kHz |
| Vertical scan range | 50 - 75 Hz |
| Response time | 5 ms |
| NTSC coverage (typical) | 72% |
| RGB colour space | NTSC |
| Anti-glare screen | Yes |
| Glass thickness | 3 mm |
| Native refresh rate | 60 Hz |
Performance
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |

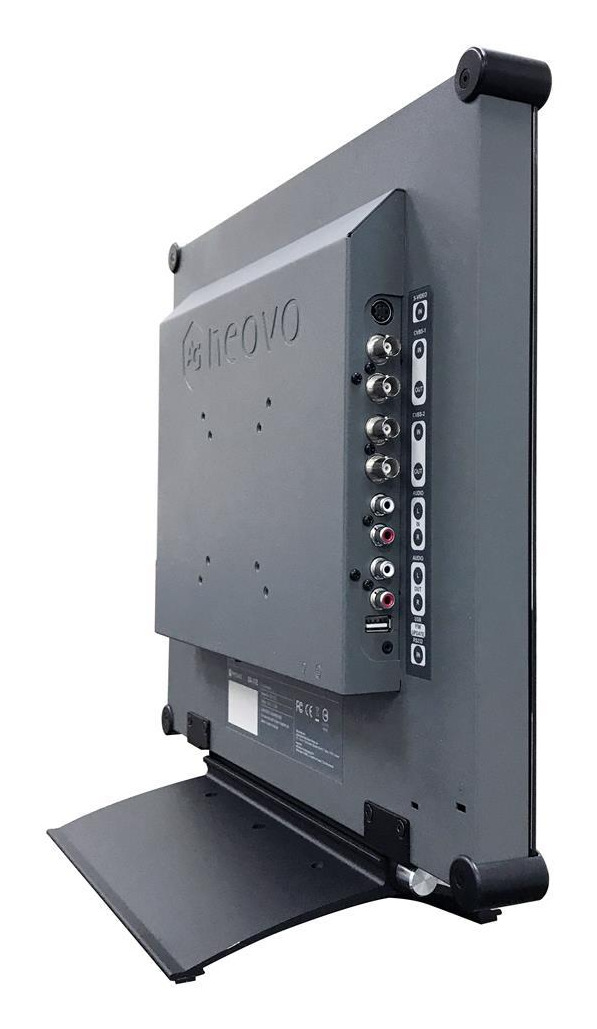

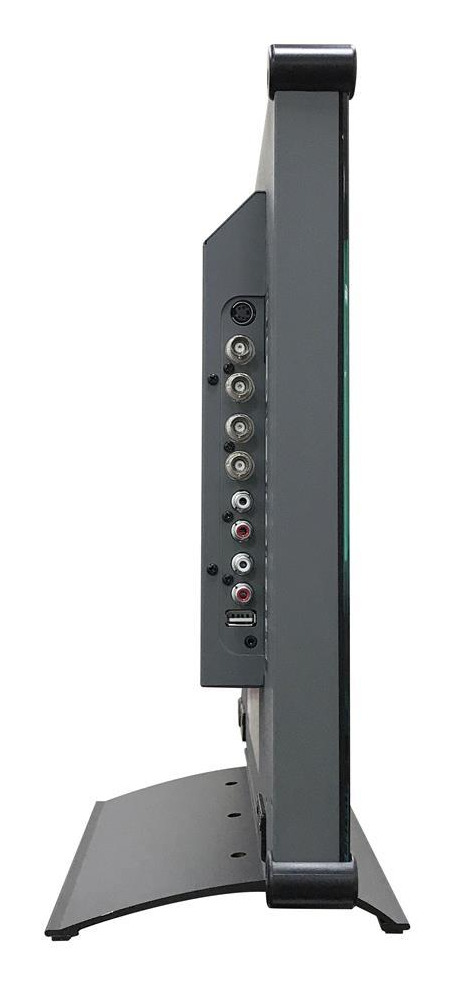

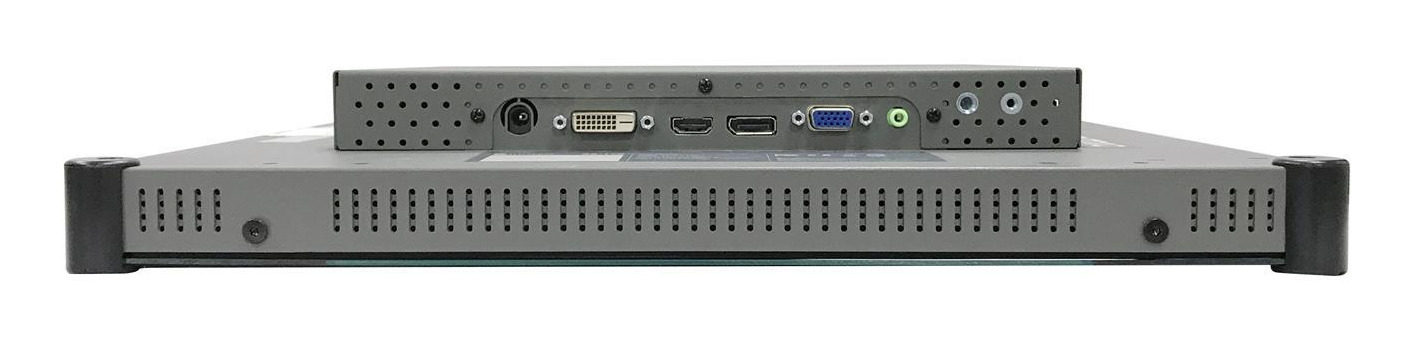

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB port | Yes |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| Composite video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power supply type | External |
| Power consumption (typical) | 13 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.8 kg |
| Height | 315 mm |
| Depth | 53.5 mm |
| Width | 380 mm |
| Width (with stand) | 380 mm |
| Depth (with stand) | 155 mm |
| Height (with stand) | 359 mm |
| Weight (with stand) | 4.4 kg |
| Package width | 470 mm |
| Package depth | 199 mm |
| Package height | 460 mm |
| Package weight | 6.8 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, Audio, VGA |
| Quick start guide | Yes |
| Quantity | 1 |
