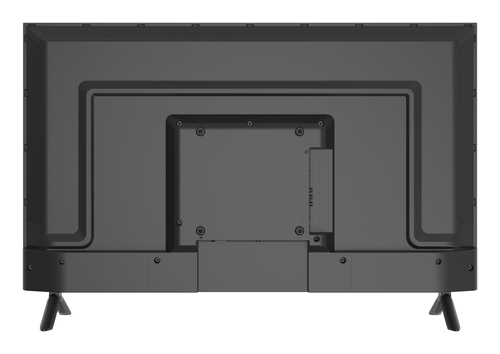

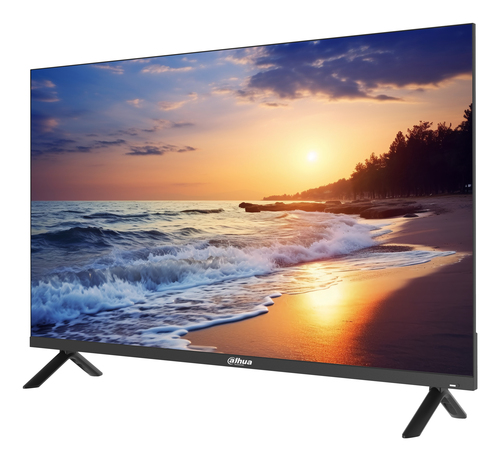

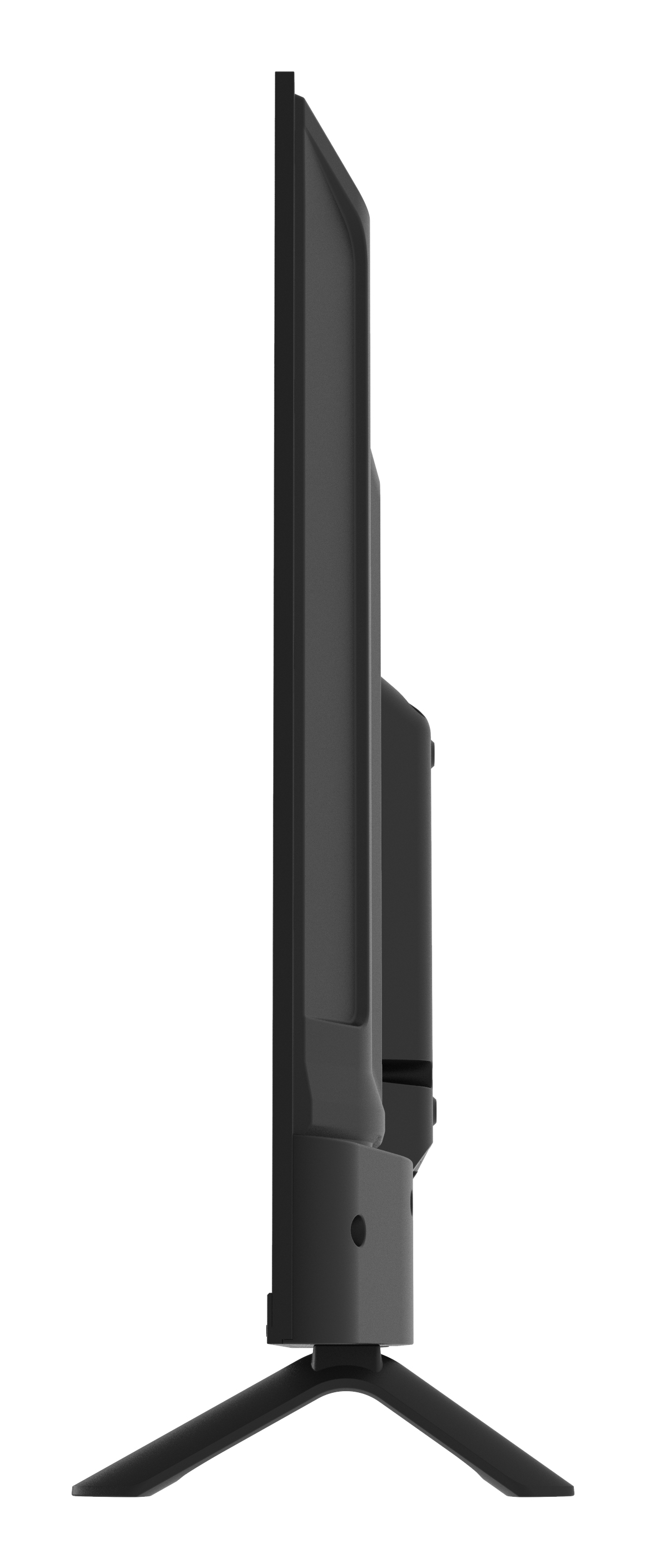

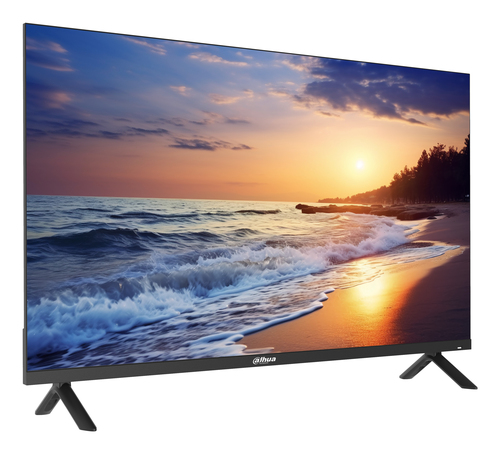

43" FHD LED Monitor
Model LM43-F200NPart no. DHI-LM43-F200N
69 specifications
- Display109.2 cm (43")
- Resolution1920 x 1080 pixels
- Energy classF
- TypeCCTV monitor
- Weight6.5 kg
- ColourBlack
Overview
- Display
- 109.2 cm (43")
- Resolution
- 1920 x 1080 pixels
- Energy class
- F
- Type
- CCTV monitor
- Weight
- 6.5 kg
- Colour
- Black
- Brand
- Dahua Technology
- Category
- Surveillance Monitor
- Model
- LM43-F200N
- Part number
- DHI-LM43-F200N
- Also known as
- Dahua Technology 43" FHD LED Monitor
Specifications
69 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Product type | CCTV monitor |
| Mounting type | Freestanding/Wall-mounted |
| Product colour | Black |
| Tilt adjustment | No |
| LED indicators | Status |
| Certification | CE ERP |
Display
| Specification | Value |
|---|---|
| Display diagonal | 109.2 cm (43") |
| Display resolution | 1920 x 1080 pixels |
| Display type | LED |
| Panel type | IPS |
| Display brightness | 350 cd/m² |
| Backlight type | Direct LED |
| Display aspect ratio | 16:9 |
| Display viewable area (HxV) | 940.896 x 529.254 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.49005 x 0.49005 mm |
| Contrast ratio (typical) | 1200:1 |
| Response time | 8 ms |
| Haze rate | 1% |
| NTSC coverage (typical) | 72% |
| Surface hardness | 3H |
| Native refresh rate | 60 Hz |
Performance
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 8 W |
| Panel mounting interface | 200 x 200 mm |
| VESA mounting | Yes |
| Operating hours (hours/days) | 24/7 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| 3.5 mm (1/8-inch) in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power supply type | Internal |
| Power consumption (max) | 75 W |
| Power consumption (typical) | 45 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency scale | A to G |
| Energy consumption (SDR) per 1000 hours | 45 kWh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 6.5 kg |
| Height | 559.4 mm |
| Depth | 85.8 mm |
| Width | 954.7 mm |
| Width (with stand) | 954.7 mm |
| Depth (with stand) | 220.8 mm |
| Height (with stand) | 626.2 mm |
| Bezel width (bottom) | 2.13 cm |
| Bezel width (side) | 1.2 mm |
| Bezel width (top) | 1.2 mm |
| Package width | 1044 mm |
| Package depth | 142 mm |
| Package height | 644 mm |
| Package weight | 8.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
| Remote control included | Yes |
| Quantity | 1 |
