0070-24186 surveillance monitor 2.18 m (86")
3840 x 2160 pixels
Model 0070-24186EAN 5715063181447
37 specifications
- Display2.18 m (86")
- Resolution3840 x 2160 pixels
- Energy classE
- Weight76 kg
- ColourBlack
- Housing materialMetal
Overview
- Display
- 2.18 m (86")
- Resolution
- 3840 x 2160 pixels
- Energy class
- E
- Weight
- 76 kg
- Colour
- Black
- Housing material
- Metal
- Brand
- Ernitec
- Category
- Surveillance Monitor
- Model
- 0070-24186
- Part number
- 0070-24186
- EAN / UPC
- 5715063181447
- Also known as
- Ernitec 0070-24186 surveillance monitor 2.18 m (86") 3840 x 2160 pixels
Specifications
37 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Housing material | Metal |
| Product colour | Black |
| Certification | EMC Class A |
Display
| Specification | Value |
|---|---|
| Display diagonal | 2.18 m (86") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 350 cd/m² |
| Display aspect ratio | 16:9 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.248 x 0.248 mm |
| Contrast ratio (typical) | 5000:1 |
| Native refresh rate | 60 Hz |
Performance
| Specification | Value |
|---|---|
| Analog signal format system | PAL |
| Panel mounting interface | 700 x 400 mm |
| VESA mounting | Yes |
| Operating hours (hours/days) | 24/7 |
| On Screen Display (OSD) languages | English |

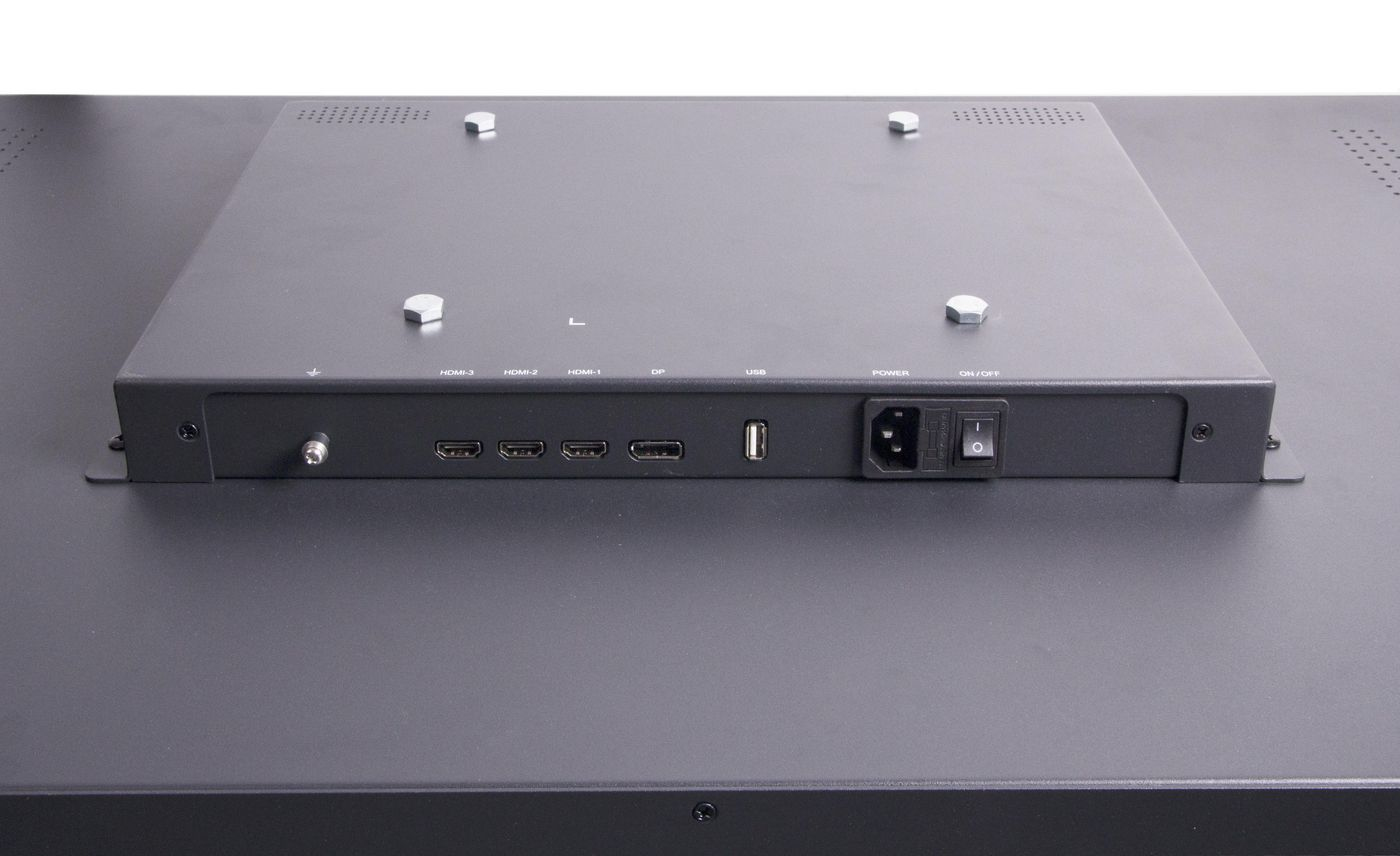

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal |
| Power consumption (typical) | 110 W |
| Power consumption (standby) | 0.1 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | E |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 76 kg |
| Height | 1490 mm |
| Depth | 380 mm |
| Width | 2190 mm |
| Package width | 2190 mm |
| Package depth | 380 mm |
| Package height | 1490 mm |
| Package weight | 90 kg |
