0070-24143-L surveillance monitor
109.2 cm (43") 1920 x 1080 pixels
Model 0070-24143-LEAN 5715063163306
41 specifications
- Display109.2 cm (43")
- Resolution1920 x 1080 pixels
- Energy classE
- Weight7 kg
- ColourBlack
- Housing materialPlastic
Overview
- Display
- 109.2 cm (43")
- Resolution
- 1920 x 1080 pixels
- Energy class
- E
- Weight
- 7 kg
- Colour
- Black
- Housing material
- Plastic
- Brand
- Ernitec
- Category
- Surveillance Monitor
- Model
- 0070-24143-L
- Part number
- 0070-24143-L
- EAN / UPC
- 5715063163306
- Also known as
- Ernitec 0070-24143-L surveillance monitor 109.2 cm (43") 1920 x 1080 pixels
Specifications
41 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Housing material | Plastic |
| Product colour | Black |
| Certification | EMC Class A |
Display
| Specification | Value |
|---|---|
| Display diagonal | 109.2 cm (43") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 350 cd/m² |
| Display aspect ratio | 16:9 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Contrast ratio (typical) | 1000:1 |
| Response time | 5 ms |
| Native refresh rate | 60 Hz |
Performance
| Specification | Value |
|---|---|
| Analog signal format system | PAL |
| Panel mounting interface | 200 x 100,200 x 200 mm |
| VESA mounting | Yes |
| Operating hours (hours/days) | 24/7 |
| On Screen Display (OSD) languages | English |

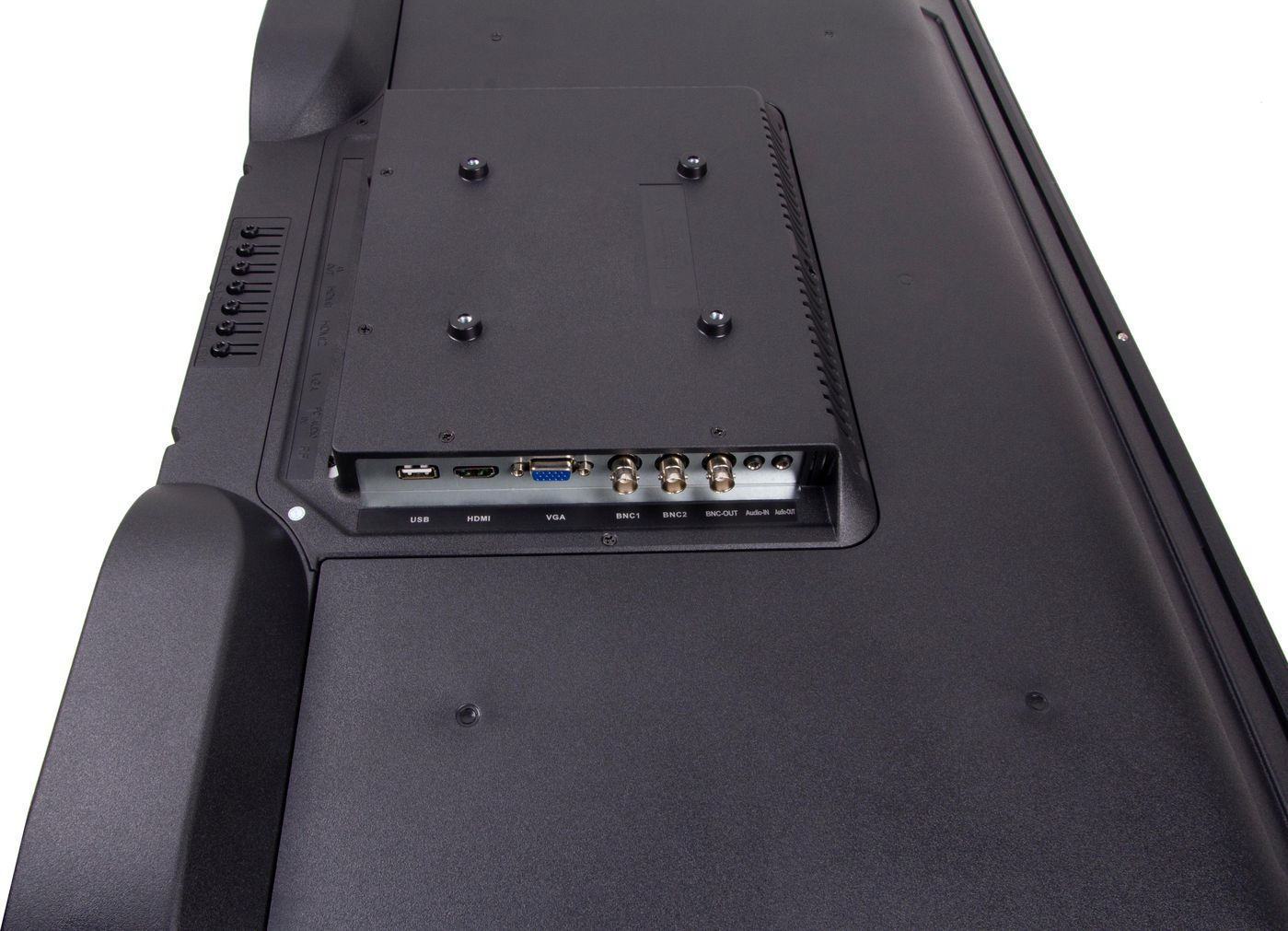

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal |
| Power consumption (typical) | 40 W |
| Power consumption (standby) | 0.2 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7 kg |
| Height | 638 mm |
| Depth | 152 mm |
| Width | 1085 mm |
| Package width | 1085 mm |
| Package depth | 152 mm |
| Package height | 638 mm |
| Package weight | 9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI |
| Quick start guide | Yes |
