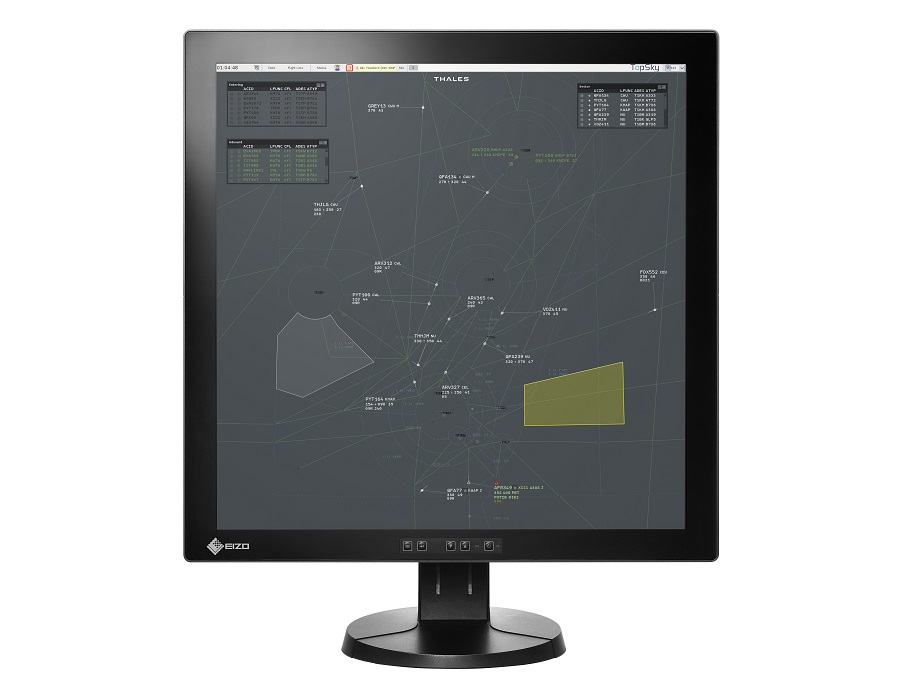

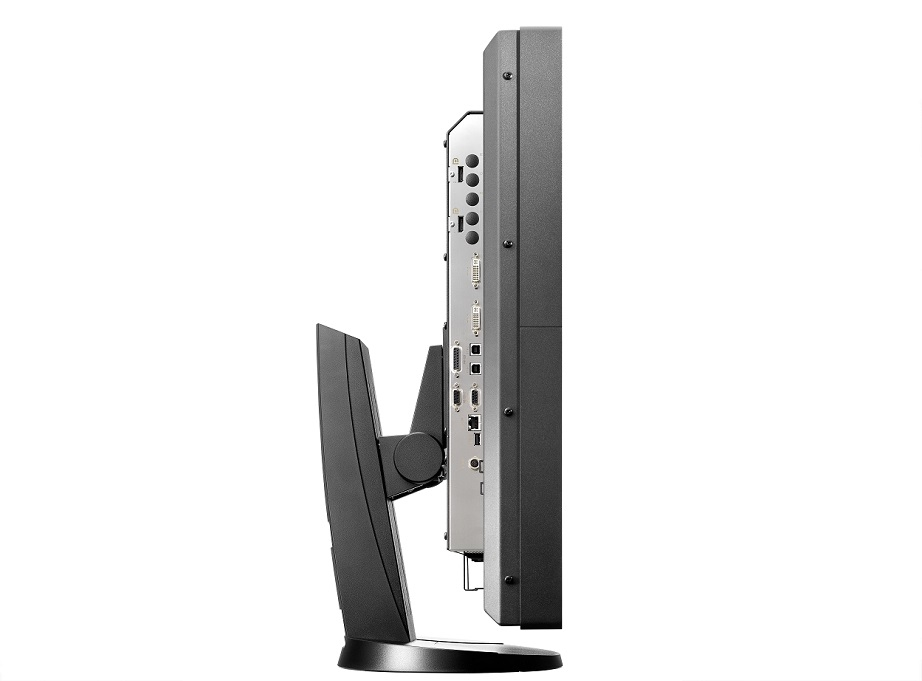

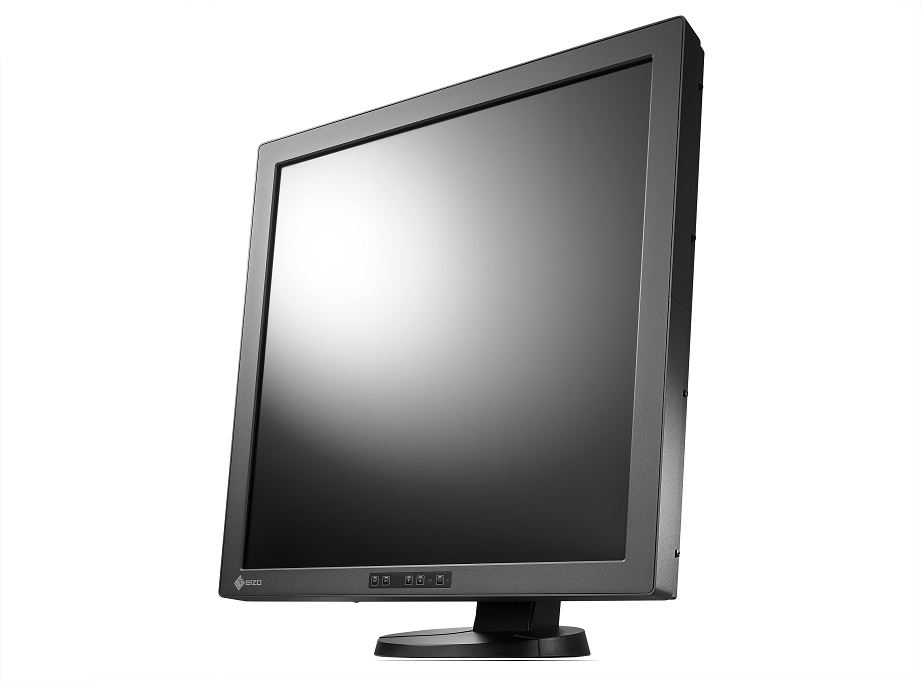

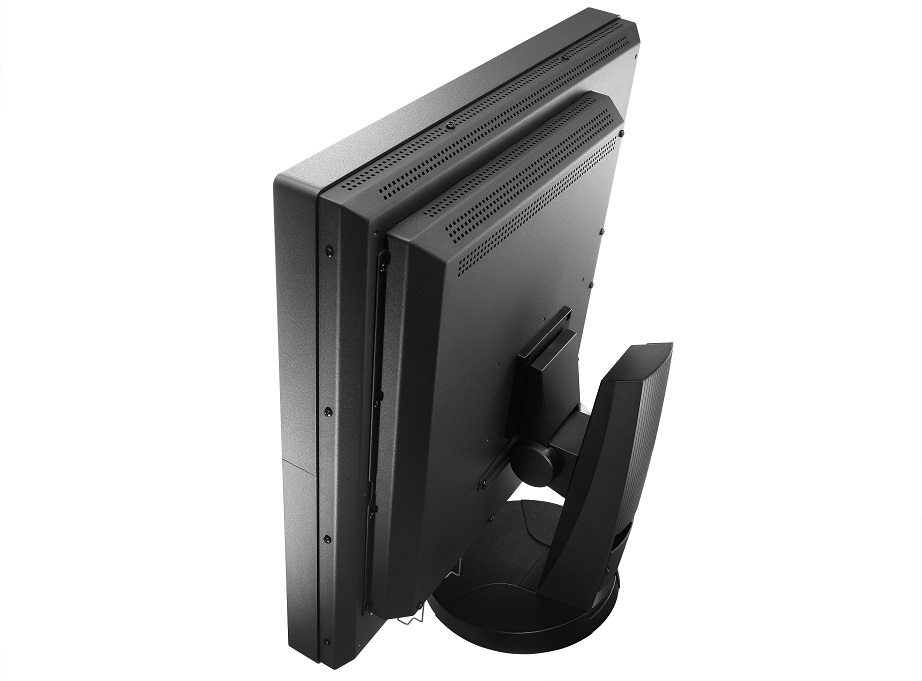

EIZO Raptor SQ2825 surveillance monitor
EIZO

Raptor SQ2825 surveillance monitor

71.4 cm (28.1") 2048 x 2048 pixels

Model SQ2825

52 specifications
  • Display71.4 cm (28.1")
  • Resolution2048 x 2048 pixels
  • Weight14.6 kg
  • ColourBlack
  • Mounting typeFreestanding
  • Panel mounting interface100 x 100 mm
See all specifications

Overview

Display
71.4 cm (28.1")
Resolution
2048 x 2048 pixels
Weight
14.6 kg
Colour
Black
Mounting type
Freestanding
Panel mounting interface
100 x 100 mm
Brand
EIZO
Model
SQ2825
Part number
SQ2825
Also known as
EIZO Raptor SQ2825 surveillance monitor 71.4 cm (28.1") 2048 x 2048 pixels

Specifications

52 specifications in 7 groups

Design

Mounting typeFreestanding
Product colourBlack
Height adjustmentYes
Height adjustment range0 - 85 mm
Tilt adjustmentYes
Tilt angle25°
Swivel angle range-172 - 172°
CertificationCE, UL, c-UL, FCC, REACH, RoHS, WEEE, CCC

Display

Display diagonal71.4 cm (28.1")
Display resolution2048 x 2048 pixels
Display typeLED
Panel typeVA
Display brightness500 cd/m²
Backlight typeDirect LED
Display aspect ratio1:1
Display viewable area (HxV)503.8 x 503.8 mm
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.78 million colours
Pixel pitch0.246 x 0.246 mm
Horizontal scan range30 - 130 kHz
Vertical scan range50 - 70 Hz
Contrast ratio (typical)1800:1
Response time25 ms
Automatic brightness controlYes

Performance

Panel mounting interface100 x 100 mm
VESA mountingYes
On Screen Display (OSD) languagesGerman, English, Spanish, French

Ports & interfaces

DVI-D ports quantity2
RJ-45 ports quantity1
USB portYes
USB 2.0 ports quantity2
USB port typeUSB Type-B
RS-232CYes
RS-232C ports1
RS-422 ports1

Power

Power source typeAC
Power consumption (max)120 W
Power consumption (typical)60 W
Power consumption (standby)0.5 W
AC adapter output voltage90 - 264 V

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Weight14.6 kg
Height576 mm
Depth119 mm
Width576 mm
Width (with stand)576 mm
Depth (with stand)322.9 mm
Height (with stand)599 mm
Weight (with stand)19 kg
