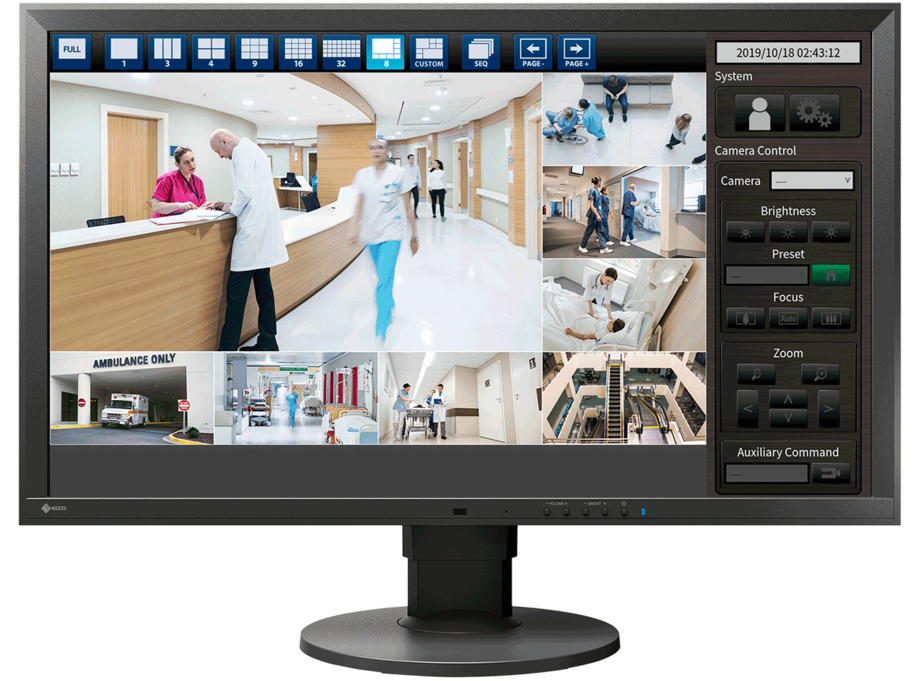

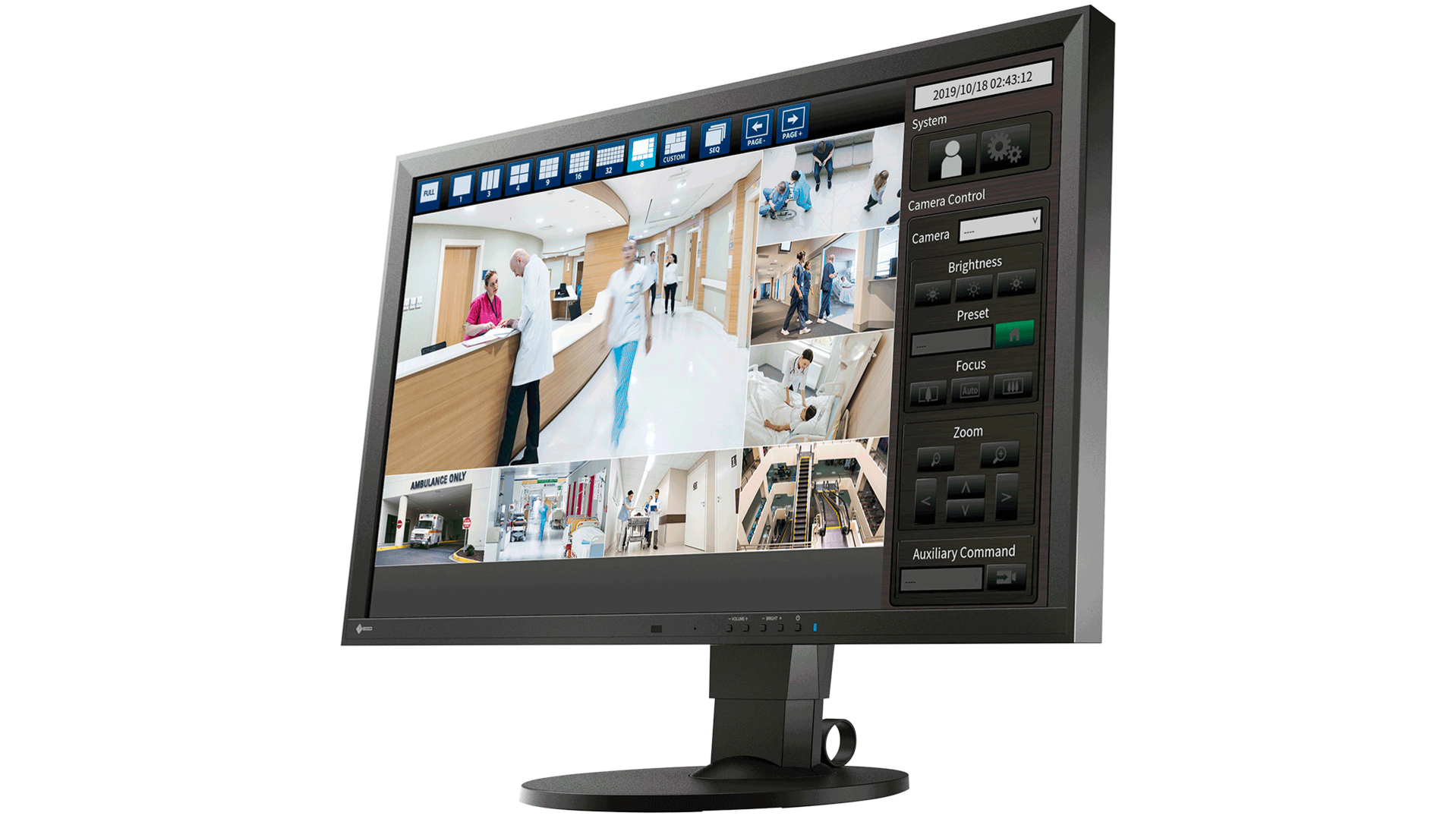

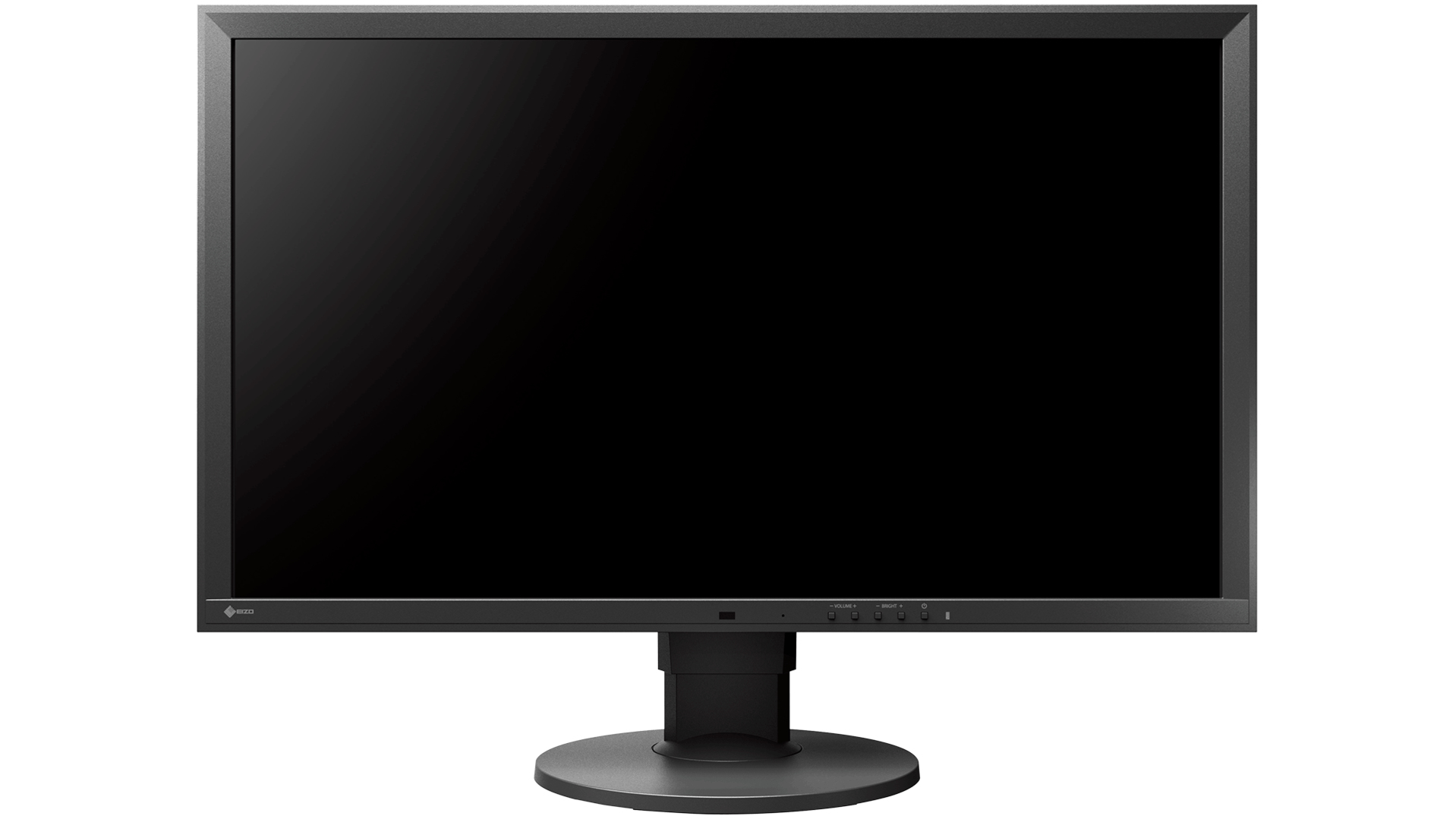

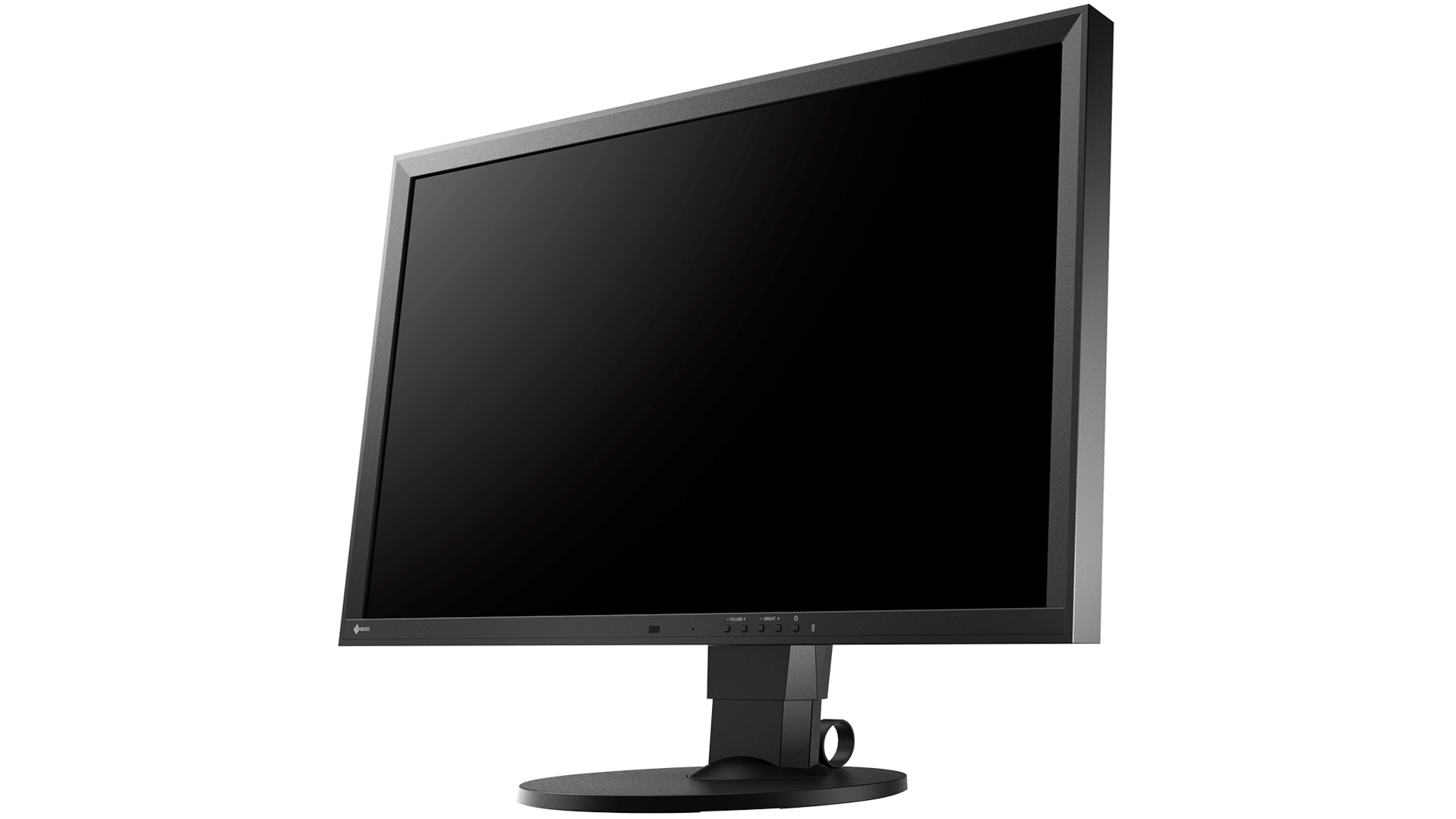

FDF2711W-IP surveillance monitor
68.6 cm (27") 1920 x 1080 pixels
Model FDF2711W-IPEAN 4995047055648
35 specifications
- Display68.6 cm (27")
- Resolution1920 x 1080 pixels
- ColourBlack
- Mounting typeFreestanding
- Panel mounting interface100 x 100 mm
- HDMI ports quantity1
Overview
- Display
- 68.6 cm (27")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- Mounting type
- Freestanding
- Panel mounting interface
- 100 x 100 mm
- HDMI ports quantity
- 1
- Brand
- EIZO
- Category
- Surveillance Monitor
- Model
- FDF2711W-IP
- Part numbers
- FDF2711W-IP, 22076
- EAN / UPC
- 4995047055648
- Also known as
- EIZO FDF2711W-IP surveillance monitor 68.6 cm (27") 1920 x 1080 pixels
Specifications
35 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Mounting type | Freestanding |
| Product colour | Black |
| Height adjustment | Yes |
| Certification | CB, CE, cTÜVus, FCC-A, CAN ICES-3 (A), TÜV/S, VCCI-C, EAC, RCM, RoHS, WEEE |
Display
| Specification | Value |
|---|---|
| Display diagonal | 68.6 cm (27") |
| Display resolution | 1920 x 1080 pixels |
| Display type | LCD |
| Panel type | VA |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.311 x 0.311 mm |
| Contrast ratio (typical) | 3000:1 |
| Response time | 12 ms |
Performance
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Japanese |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 59 W |
| Power consumption (off) | 0 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 640 mm |
| Depth (with stand) | 245 mm |
| Height (with stand) | 404.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
