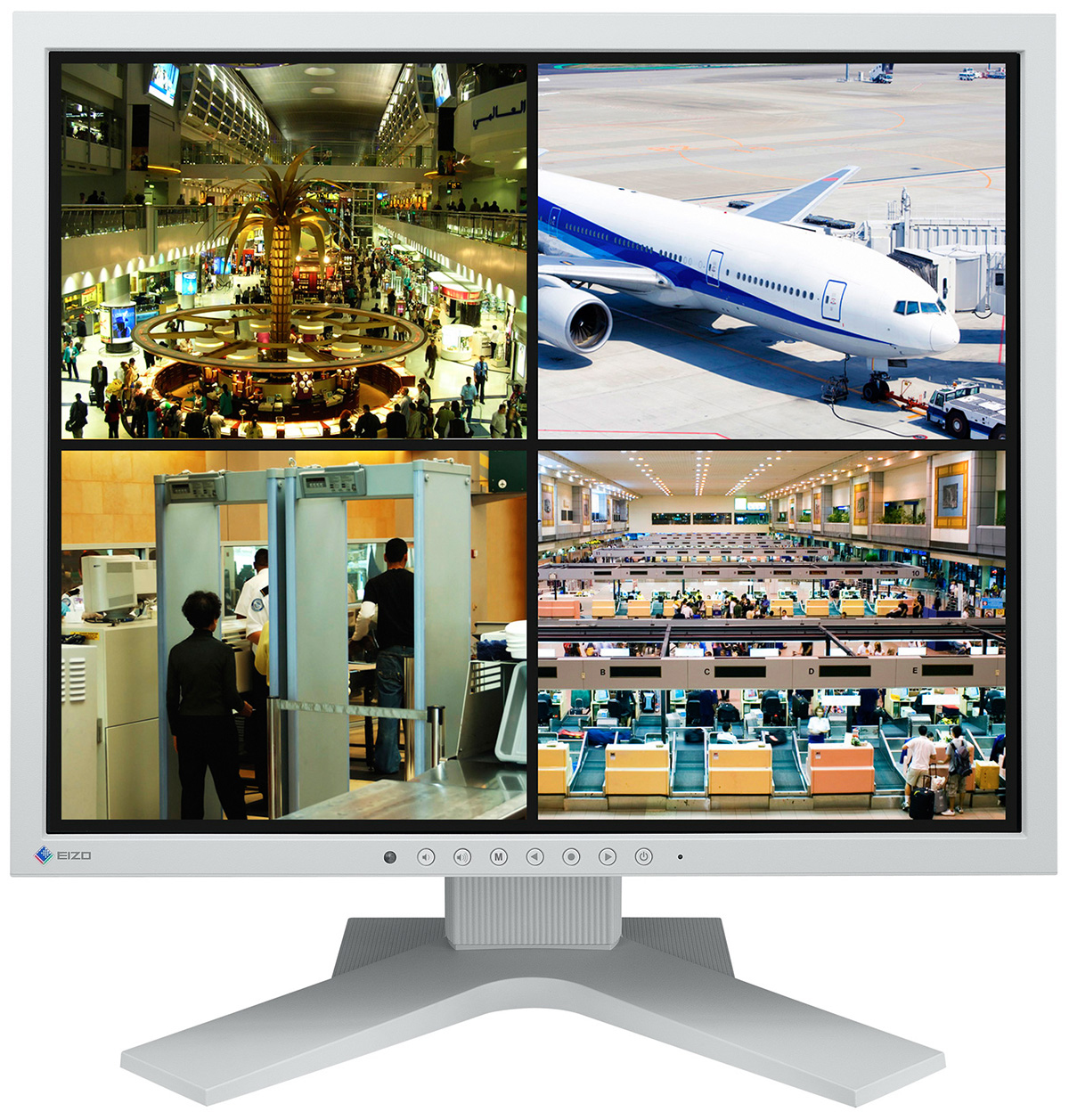

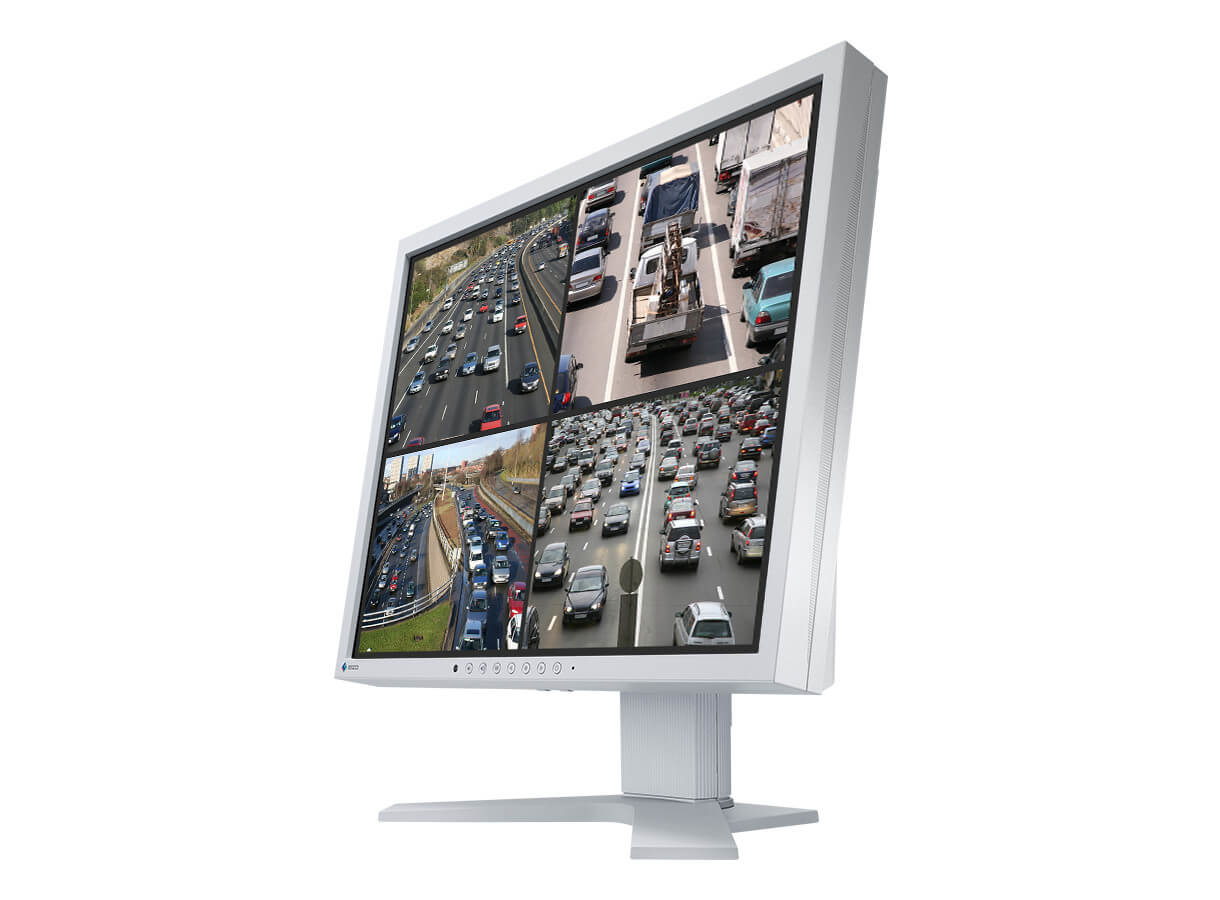

DuraVision FDS1903
Model DuraVision FDS1903Part no. FDS1903-GYEAN 4995047043652
23 specifications
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- ColourGrey
- Analog signal format systemNTSC, PAL, SECAM
- HDMI ports quantity0
- Power consumption (standby)1.3 W
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Colour
- Grey
- Analog signal format system
- NTSC, PAL, SECAM
- HDMI ports quantity
- 0
- Power consumption (standby)
- 1.3 W
- Brand
- EIZO
- Category
- Surveillance Monitor
- Model
- DuraVision FDS1903
- Part number
- FDS1903-GY
- EAN / UPC
- 4995047043652
- Also known as
- EIZO DuraVision FDS1903 48.3 cm (19") 1280 x 1024 pixels
Specifications
23 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Certification | C-Tick, CE, CB, cTUVus, FCC-A, Canadian ICES-003-A, TUV/S, VCCI-A, RoHS, China RoHS, WEEE |
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Horizontal scan range | 24.8 - 74.8 kHz |
| Vertical scan range | 56.2 - 75.1 Hz |
| Contrast ratio (typical) | 1000:1 |
| Response time | 5 ms |
Performance
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Built-in speaker(s) | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Composite video in | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 1.3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
