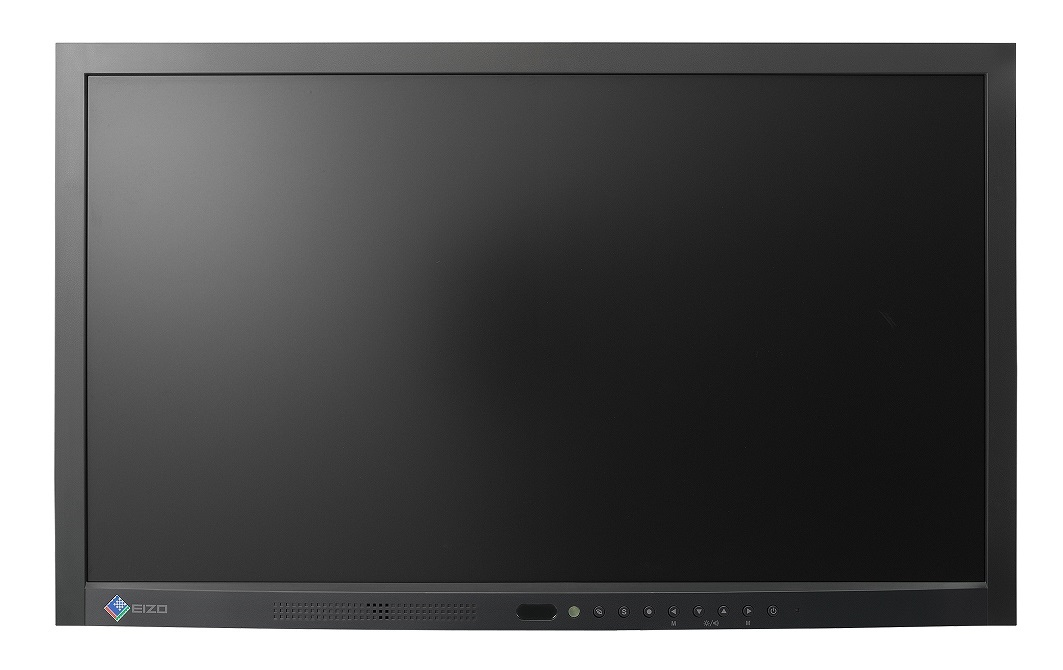

DuraVision DV2324-008
Model DuraVision DV2324-008Part no. DV2324-008
24 specifications
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ColourBlack
- Analog signal format systemNTSC, PAL, SECAM
- HDMI ports quantity1
- Power consumption (typical)50 W
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- Analog signal format system
- NTSC, PAL, SECAM
- HDMI ports quantity
- 1
- Power consumption (typical)
- 50 W
- Brand
- EIZO
- Category
- Surveillance Monitor
- Model
- DuraVision DV2324-008
- Part number
- DV2324-008
- Also known as
- EIZO DuraVision DV2324-008 58.4 cm (23") 1920 x 1080 pixels
Specifications
24 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | CE, FCC, UL |
Display
| Specification | Value |
|---|---|
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.2652 x 0.2652 mm |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 50 - 100 Hz |
| Contrast ratio (typical) | 1000:1 |
| Response time | 3 ms |
Performance
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Cable lock slot | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 50 W |
| Power consumption (standby) | 4 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
